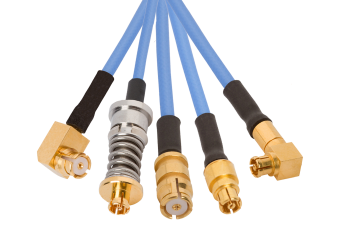

High-Density RF Cable Assemblies Are in Stock Now
SV Microwave’s high-density RF cable assemblies are in stock through distribution. We have added high-density configurations on our fixed-length, high-performance RF cable assemblies. It highlights SMP, SMPM/VITA 67.3 SMPM, and SMPS connectors. These high-density cable assemblies are ideal for embedded system applications. Check out the technical specifications now.
Top Features and Specifications
1. Fits all standard interfaces, including SMA, 2.92mm, 2.4mm, 1.85mm, SMP, SMPM, and SMPS
2. Low solder wicking and high flexibility allow tight bends behind the cable ferrule.
3. High flex-life ensures excellent performance after repeated usage
4. COTS versions available through the distribution
5. Dielectric withstanding Voltage 500 VRMS in SMP, 250 VRMS in SMPS, and 325 VRMS in SMPM
6. Mechanical mating cycles SB-1000 in SMP, SB-500 in SMPS, and SMPM
7. Superior vibration and shock resistance
8. Temperature rating -65°C to +165°C
9. Electrical impedance 50 ohm
10. DC - 40 GHz
Applications
1. VITA and Embedded Systems applications
2. 5G Wireless Infrastructure
3. RF Test and Measurement
4. Project designs where space is at a premium
5. Runs where high flexibility and low loss are required
Product’s Part Number and Details
Quickly discover our entire product line; each product page has even more details.
| Part No. | Description |
| 7012-2097 | SMP Female R/A to SMP Female 12" Cable Assembly for .047 Cable |
| 7012-2098 | SMP Female R/A to SMP Female 12" Cable Assembly for .085 Cable |
| 7012-2099 | SMP Female R/A to SMP Female 6" Cable Assembly for .047 Cable |
| 7012-2100 | SMP Female R/A to SMP Female 6" Cable Assembly for .085 Cable |
| 7032-9725 | SMPM Female R/A to SMPM Female 12" Cable Assembly for .047 Cable |
| 7032-9731 | SMPM Female R/A to SMPM Female 6" Cable Assembly for .047 Cable |
| 7032-9728 | SMPM Female VITA 67.3 to SMA Male 12" Cable Assembly for .047 Cable |
| 7032-9733 | SMPM Female VITA 67.3 to SMA Male 6" Cable Assembly for .047 Cable |
| 7032-9726 | SMPM Female VITA 67.3 to SMA Male R/A 12" Cable Assembly for .047 Cable |
| 7032-9732 | SMPM Female VITA 67.3 to SMA Male R/A 6" Cable Assembly for .047 Cable |
