SV's Reflow Stable Multiport PCB Connectors Are Now In Stock!
SV Microwave has launched a new series of 2- and 4-port SMP, SMPM, and SMPS PCB connectors engineered to endure the extreme temperatures present in solder reflow ovens. With the ability to withstand temperatures up to 500°C, these connectors maintain their internal structures while preserving both electrical and mechanical performance even after the solder reflow process.
Features / Benefits:
- Capable of multiple reflow cycles
- Dimensionally stable during solder reflow
- Multiport PCB Connectors rated to 500°C
- 2 or 4 port configurations
- DC – 50GHz (SMPS version)
Applications:
- Phased Array Systems
- Missile Seeker and Guidance Systems
- High-Density Multiport Configurations
Product's Part Number and Description
Part No. | Description |

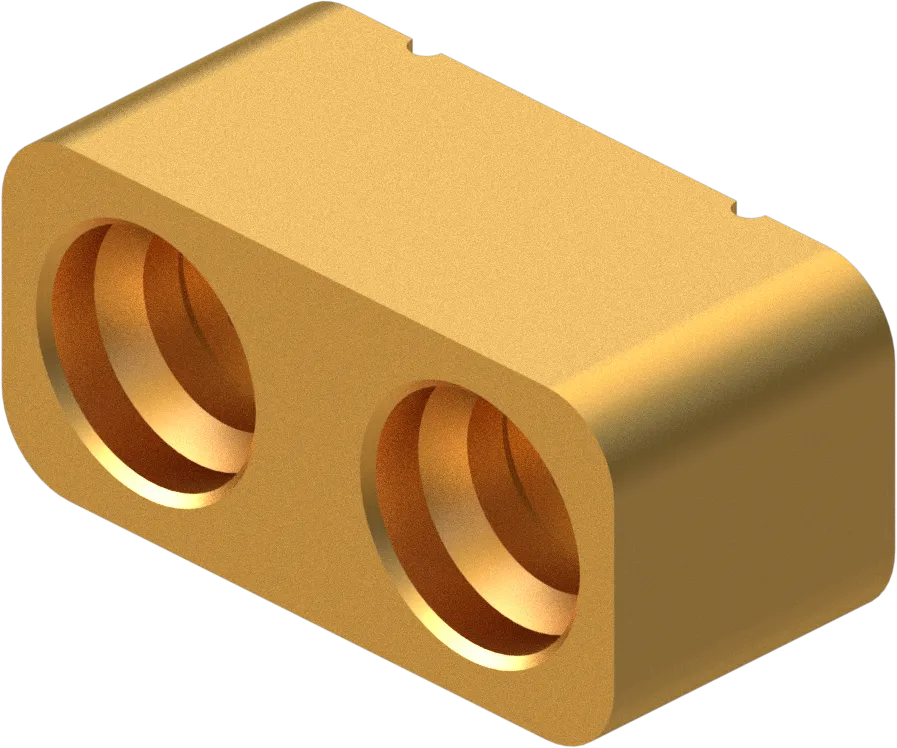

| SMP Male PCB Surface Mount, 2 Port (Glass Seal), FD |
| SMP Male PCB Surface Mount, 2 Port (Glass Seal), SB |

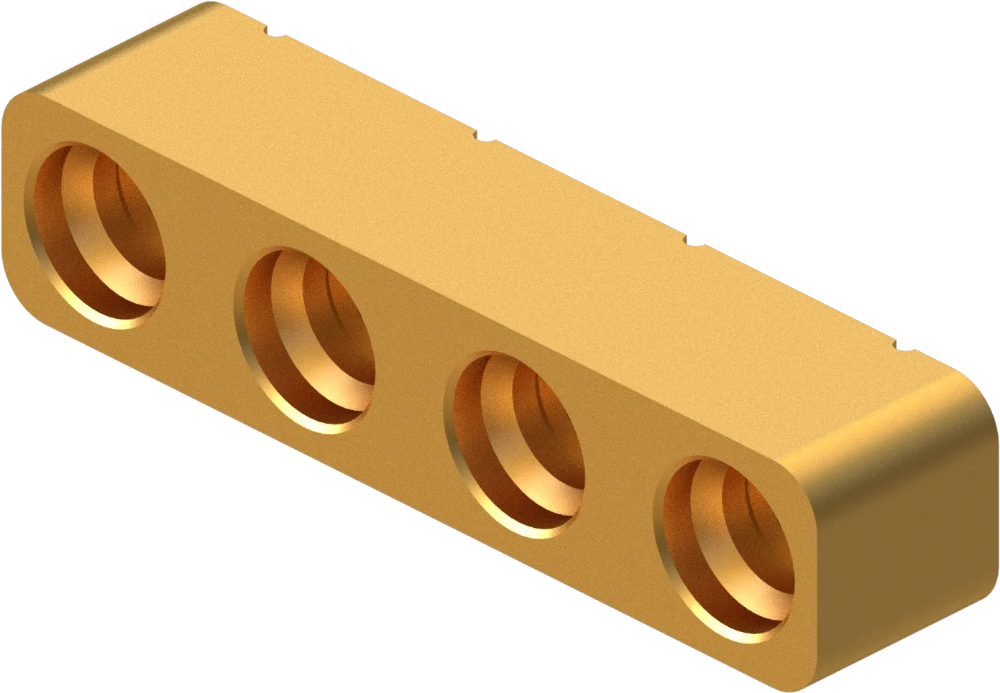

| SMP Male PCB Surface Mount, 4 Port (Glass Seal), FD |
| SMP Male PCB Surface Mount, 4 Port (Glass Seal), SB |

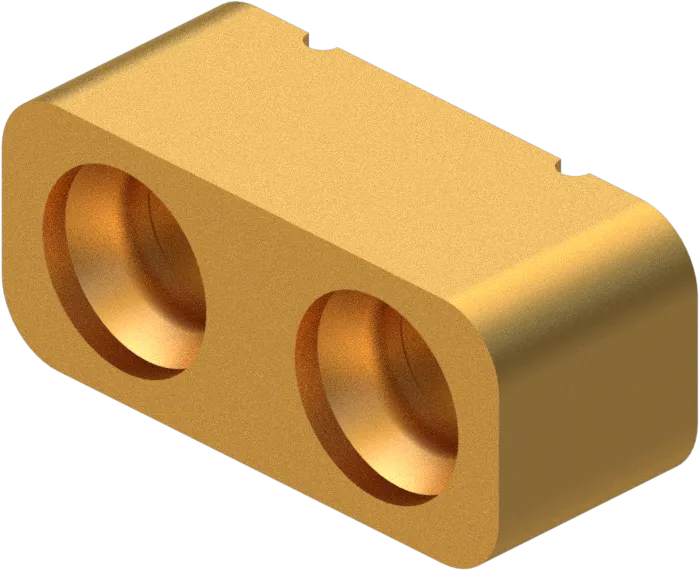

| SMPM Male PCB Surface Mount, 2 Port (Glass Seal), FD |
| SMPM Male PCB Surface Mount, 2 Port (Glass Seal), SB |

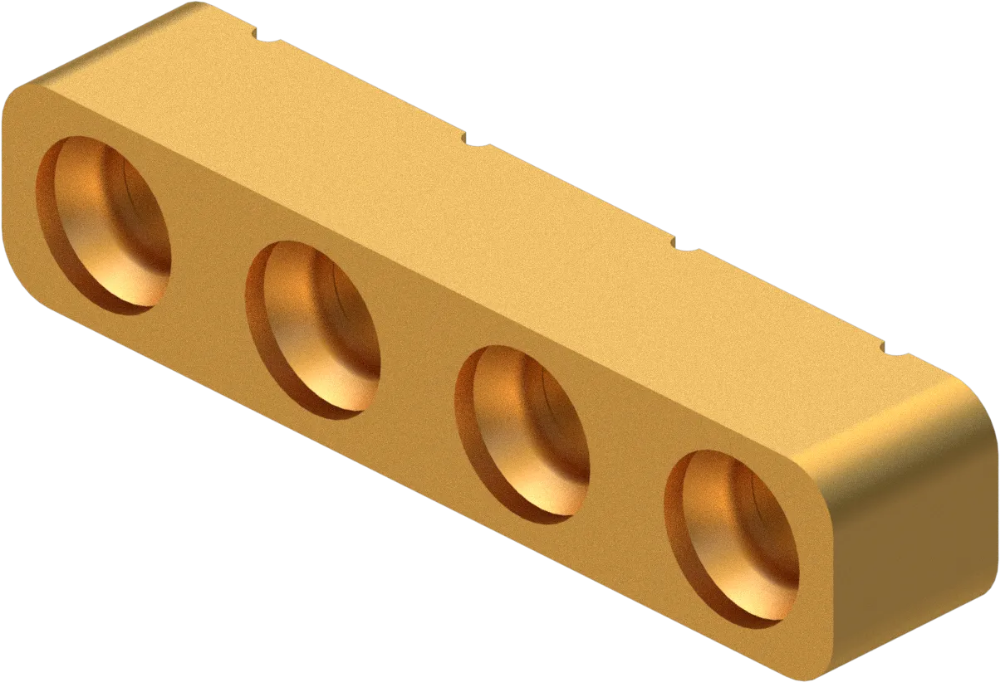

| SMPM Male PCB Surface Mount, 4 Port (Glass Seal), FD |
| SMPM Male PCB Surface Mount, 4 Port (Glass Seal), SB |

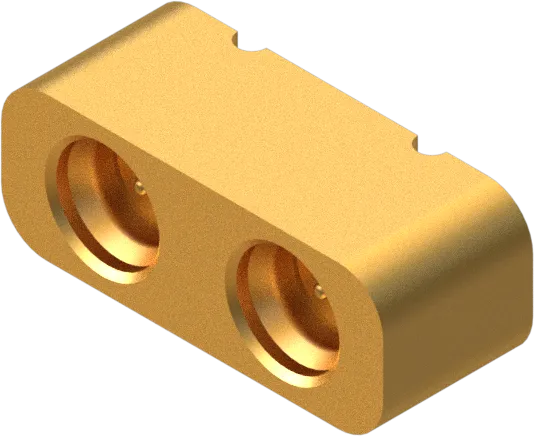

| SMPS Male PCB Surface Mount, 2 Port (Glass Seal), FD |
| SMPS Male PCB Surface Mount, 2 Port (Glass Seal), SB |

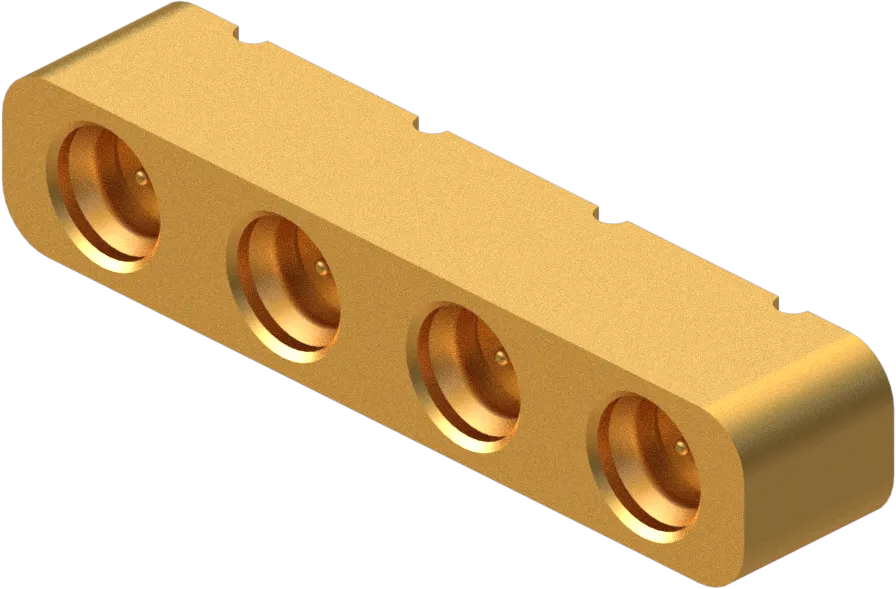

| SMPS Male PCB Surface Mount, 4 Port (Glass Seal), FD |
| SMPS Male PCB Surface Mount, 4 Port (Glass Seal), SB |
