SV Microwave's SMPS Spring Bullets Are Now In Stock!
SV's newest spring loaded bullet product line features an SMPS RF interface, enhancing density and supporting high-frequency applications up to 32 GHz. These bullets are engineered for consistent RF performance, regardless of the level of compression, by addressing both axial and radial misalignment issues when fully mated. Additionally, they provide a compact board-to-board stackup, with a minimum overall length of just 0.460 inches.
Features / Benefits:
- Eliminates gaps between bullet and shroud for maximum RF performance
- Wide range of available sizes
- Performance guaranteed under all states of compression
- DC - 32 GHz
Applications:
- Mil-Aerospace
- High density, small form factor
- Board to board with multiple simultaneous mates
- Large-scale blind mate arrays
Product's Part Number and Description
| Part No. | Description |

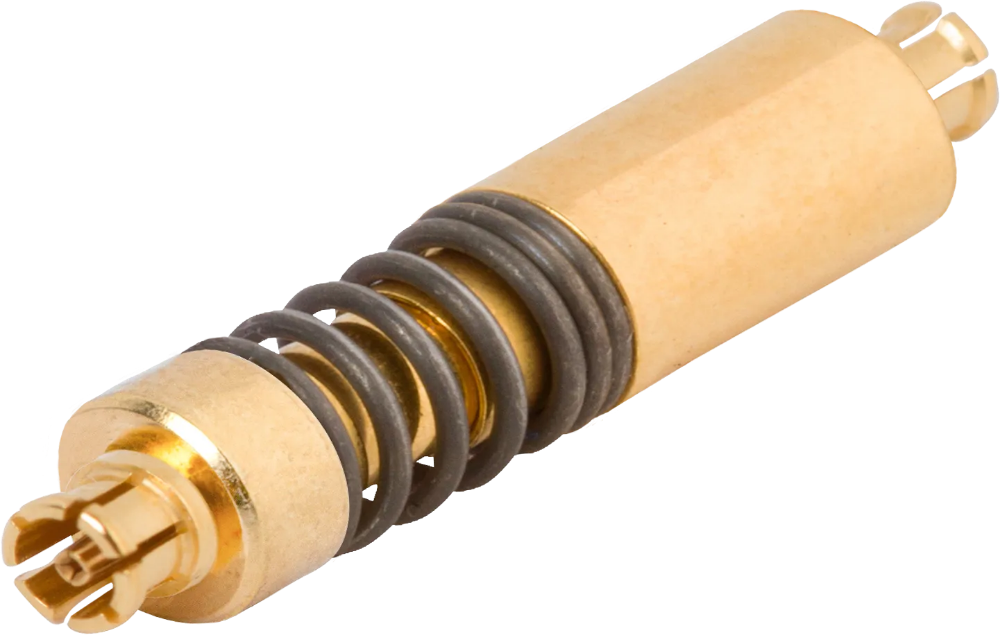

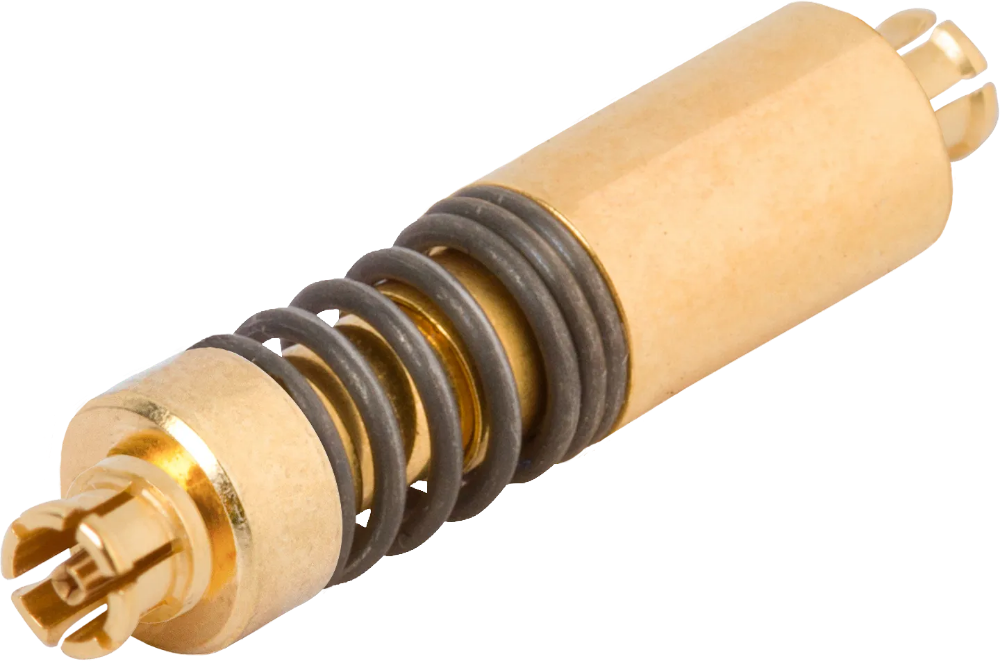

| SMPS Female to Female Bullet, Spring Loaded (OAL 0.490") |
| SMPS Female to Female Bullet, Spring Loaded (OAL 0.520") |
| SMPS Female to Female Bullet, Spring Loaded (OAL 0.550") |
