VITA 67.3 Aluminum Connectors

SV Microwave’s VITA product line is the latest addition to RF / coaxial section of the VPX platform. This newly expanded product line now offers our standard VITA 67.3 in a lighter material - aluminum. Available in SMPM and SMPS series. SV Microwave is an associate member of The Open Group and an active participant of the SOSA Electro-mechanical hardware group.

Features / Benefits & Applications
Technical Specs

Features / Benefits:

Aluminum materials provide a lightweight alternative
SMPS min pitch .155”
Designed for side-by-side implementation with other VITA connector standards
Blindmate and simplified cable routing reduces Mean-Time-To-Repair (MTTR)
Unique SV connector retention mechanism offers significant ease of assembly/disassembly

Applications:

Robust and rugged high speed cabled solution
High-reliability, high-density for aerospace & defense applications
SIGINT, EWR, ground base station & communication systems, avionics, radar systems
Air Transport Racks (ATRs) without Rear Transition Modules (RTMs) or limited speed through RTM

Grid List

Filters

per page

Part # 9321-80035

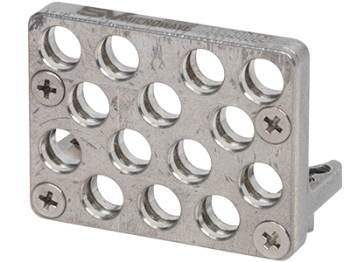

SMPM VITA 67.3 14 Port Aluminum Backplane Module

Available Inventory: 0

9321-80035

VITA Connectors 9321-80035

Datasheet

Part # 9311-80024

SMPM VITA 67.3 14 Port Aluminum Plug-In Module

Available Inventory: 32

9311-80024

VITA Connectors 9311-80024

Datasheet

Part # 9321-80036

SMPS VITA 67.3 19 Port Aluminum Backplane Module

Available Inventory: 40

9321-80036

VITA Connectors 9321-80036

Datasheet

Loading more products ...

Impedance (Ω)	50
Frequency GHz	40 GHz
Shielding Effectiveness	≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage	325 VRMS
Mating Cycles	500
Insertion Force	2.5 lbs (per contact)
Withdrawal Force	1.5 lbs
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

Impedance (Ω)	50
Frequency GHz	65 GHz
Shielding Effectiveness	≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage	250 VRMS
Mating Cycles	500
Insertion Force	1.2 lbs (per contact)
Withdrawal Force	1.0 lbs
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

Impedance (Ω)	50
Frequency GHz	67 GHz
Shielding Effectiveness	≥ -140 dB, 3 MHz to 30 MHz ≥ -120 dB, 30 MHz to 3.0 GHz ≥ -100 dB, 3.0 GHz to 30 GHz ≥ -90 dB, 30 to 67.0 GHz
Dielectric withstanding Voltage	250 VRMS
Mating Cycles	500
Insertion Force	2.5 lbs (per contact)
Withdrawal Force	0.315 lbs
Temperature Rating	-55°C to +125°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

VITA 67.3 Aluminum Connectors

The specifications below are typical for the connector series, but may not apply to this particular part. Please see the datasheet for full specifications.

VITA SMPM

VITA SMPS

VITA NANORF

Part # 9321-80035

SMPM VITA 67.3 14 Port Aluminum Backplane Module

Available Inventory: 0

Part # 9311-80024

SMPM VITA 67.3 14 Port Aluminum Plug-In Module

Available Inventory: 32

Part # 9321-80036

SMPS VITA 67.3 19 Port Aluminum Backplane Module

Available Inventory: 40
