Waterproof (IP68 Rated) RF Cable Assemblies

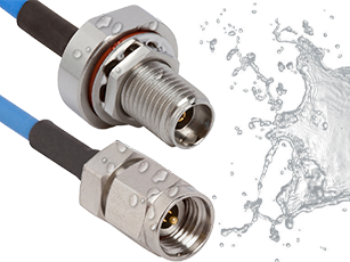

Picture for category Waterproof (IP68 Rated) RF Cable Assemblies

SV Microwave offers a wide range of IP67 and IP68 waterproof cable assemblies designed to withstand rigorous environments and harsh elements. SV's line of waterproof cable assemblies include o-ring sealed connectors to 1 x 10-8 cc/sec, making them ideal for high pressure, harsh environment applications and for the prevention of dust, liquid or gas leakage.

Features / Benefits:

  • Eliminate outside elements (i.e. water, air, gas, etc.)
  • Ingress Protection (IP) Rating: IP 67 and IP 68
  • Ruggedized / Reliable
  • Custom configurations available

Applications:

  • RF Test and Measurement Boards
  • Severe/Harsh Environments
  • Military and Aerospace

2.92 mm

 Impedance (Ω)  50
 Frequency GHz  40 GHz
 Shielding Effectiveness  ≥ -100 dB
 Dielectric withstanding Voltage  750 VRMS
 Mating Cycles  500
 Mating Torque  7 - 10 in - lbs
 Inter-mate ability  SMA
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.



SMA

 Impedance (Ω)  50
 Frequency GHz  18 GHz (select models to 26.5 GHz)
 Shielding Effectiveness  ≥ -90 dB
 Dielectric withstanding Voltage  1000 VRMS
 Mating Cycles  500
 Mating Torque  7 - 10 in - lbs
 Inter-mate ability  2.92mm
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.



Product Video

Filters
7015-1050
2.92mm Cable Assemblies 7015-1050
Datasheet
7015-1074
2.92mm Cable Assemblies 7015-1074
Datasheet
7015-1051
2.92mm Cable Assemblies 7015-1051
Datasheet
7015-1073
2.92mm Cable Assemblies 7015-1073
Datasheet
7029-3530
SMA Cable Assemblies 7029-3530
Datasheet
7029-3574
SMA Cable Assemblies 7029-3574
Datasheet
7029-3531
SMA Cable Assemblies 7029-3531
Datasheet
7029-3573
SMA Cable Assemblies 7029-3573
Datasheet
