P/N: 7033-0044

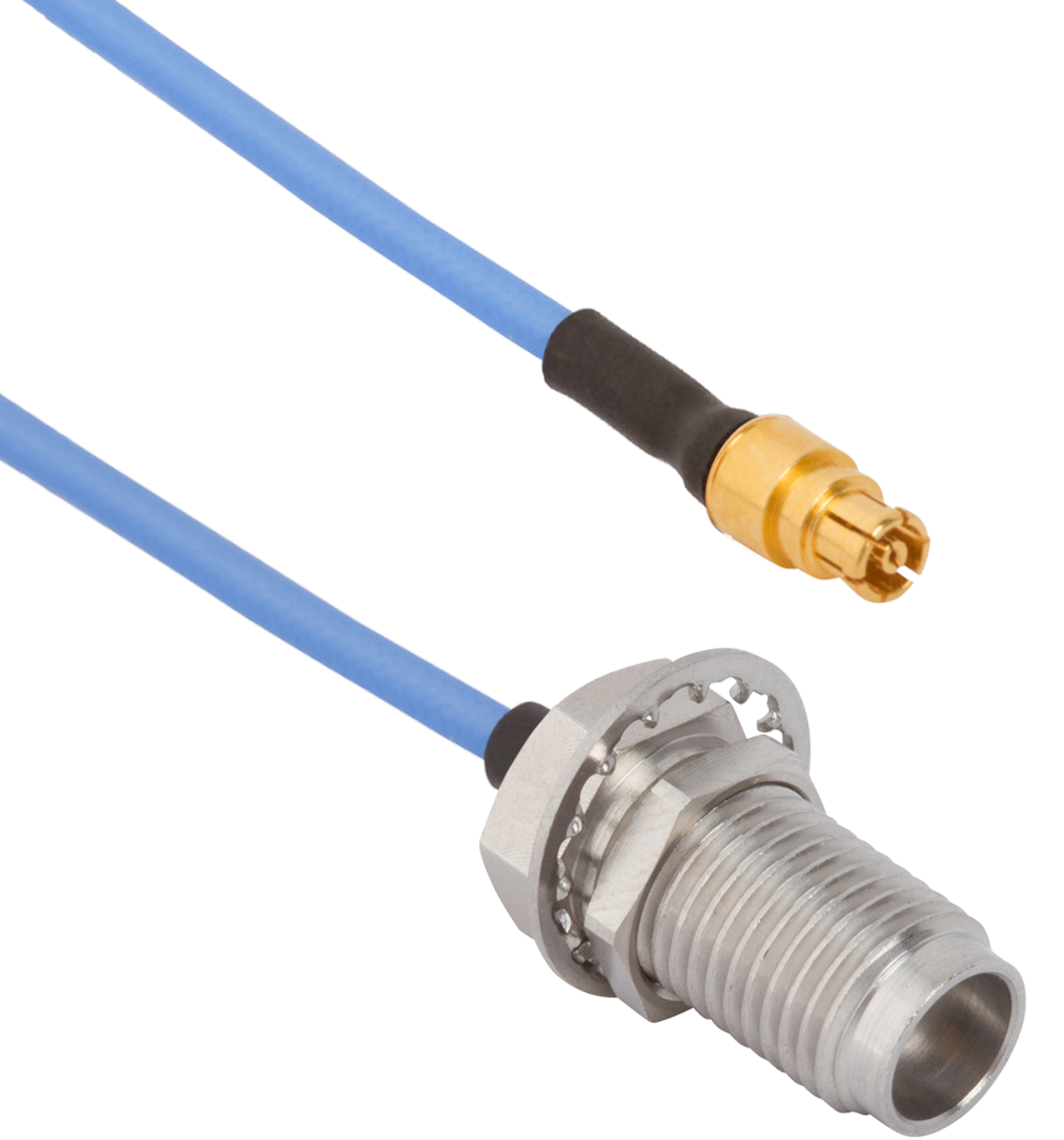

1.85mm Female Bulkhead to SMPM Female 6" Cable Assembly for .047 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Number of Ports Single
Frequency 65 GHz
Impedance 50 ohms
RF Series 2 SMPM
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Cable Length 6"
Body Style Jamnut/Bulkhead
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 2.4mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Number of Ports Single
Frequency 65 GHz
Impedance 50 ohms
RF Series 2 SMPM
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Cable Length 6"
Body Style Jamnut/Bulkhead
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 2.4mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
7033-0045
1.85mm Cable Assemblies 7033-0045
Datasheet
Part #   7033-0036

1.85mm Male to 1.85mm Male 12" Cable Assembly for .047 Cable

Available Inventory: 0
7033-0036
1.85mm Cable Assemblies 7033-0036
Datasheet

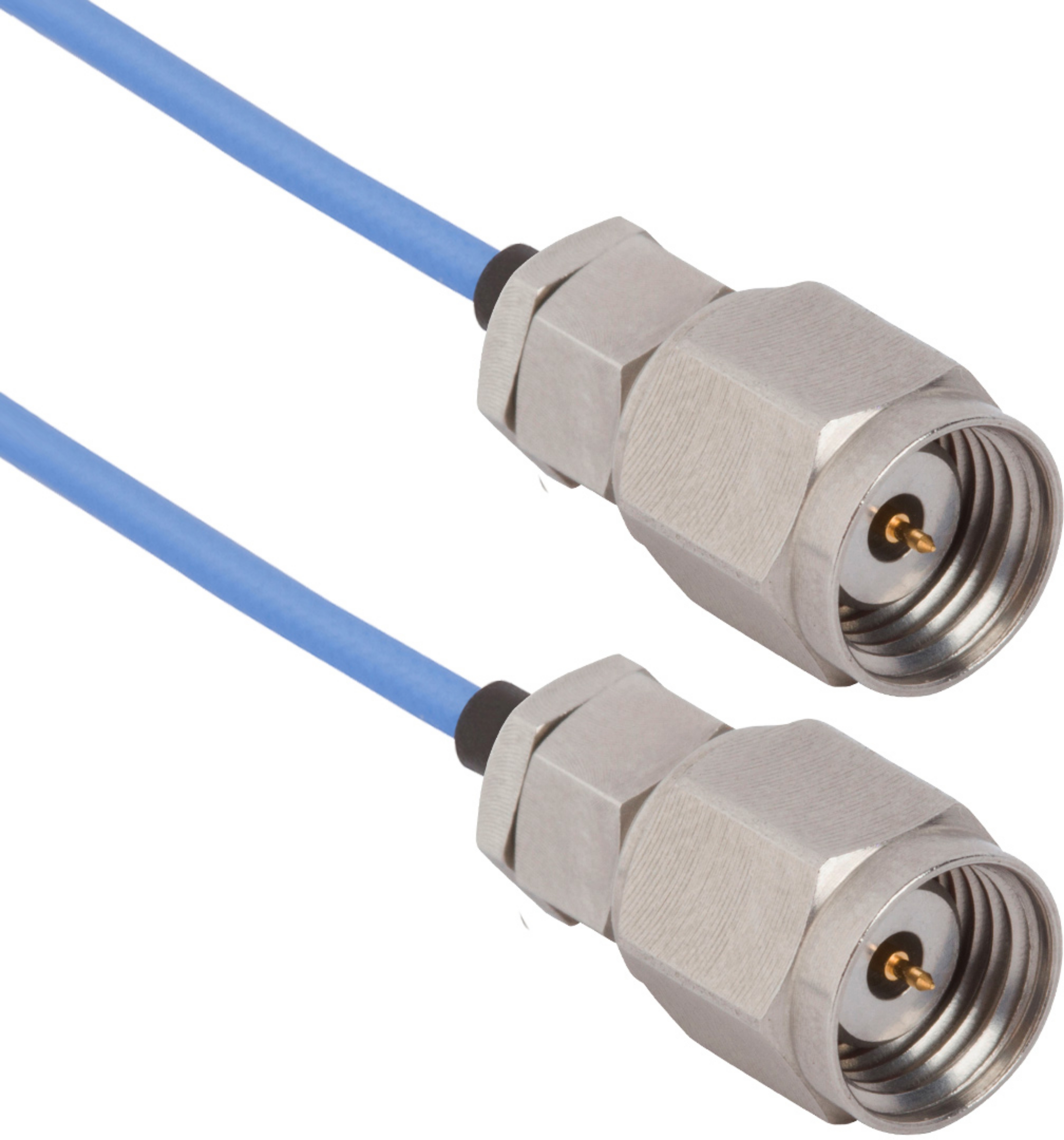

Part #   7033-0035
