P/N: 3321-60059

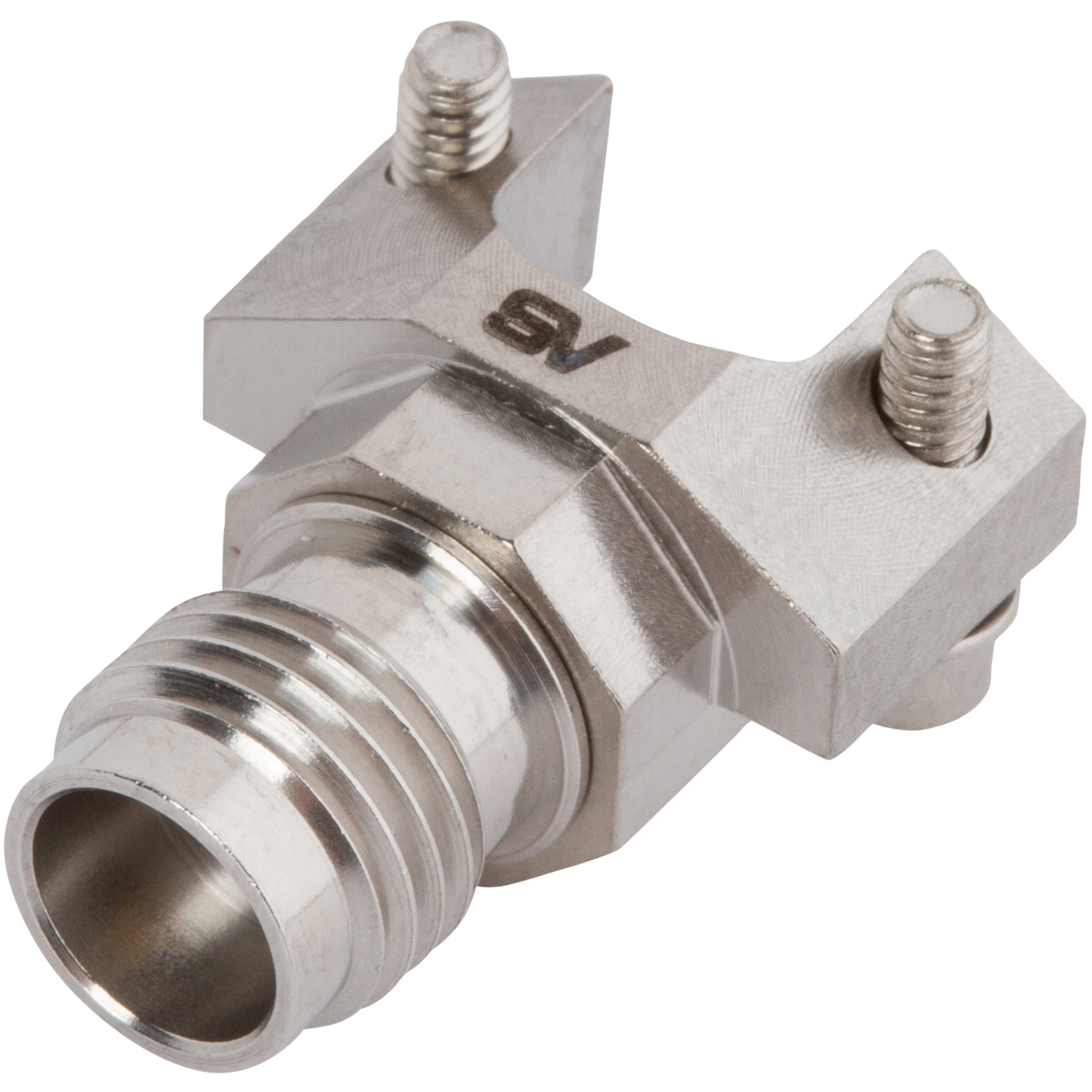

1.85mm Female Solderless PCB Edge Launch Connector, 2 Hole

In stock at Qty Order
Digi-Key Electronics 50
Newark 50
Farnell 50
Mouser Electronics 36
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Jack (Female)
Orientation (Body) Straight
Mounting Type PCB Edge Launch
Body Style 2 Hole
Termination Style Solder-free
Impedance 50 ohms
Frequency 65 GHz
Coupling Threaded
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Dielectric withstanding Voltage 500 VRMS
Mechanical
Inter-mate ability 2.4mm
Temperature Rating -65°C to +165°C
Mating Torque 5 - 7 in - lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Jack (Female)
Orientation (Body) Straight
Mounting Type PCB Edge Launch
Body Style 2 Hole
Termination Style Solder-free
Impedance 50 ohms
Frequency 65 GHz
Coupling Threaded
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Dielectric withstanding Voltage 500 VRMS
Mechanical
Inter-mate ability 2.4mm
Temperature Rating -65°C to +165°C
Mating Torque 5 - 7 in - lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   SF3321-60021

1.85mm Female Solderless PCB Edge Launch Connector, 2 Hole

Available Inventory: 121
SF3321-60021
1.85mm Connectors SF3321-60021
Datasheet
Part #   SF3311-60012

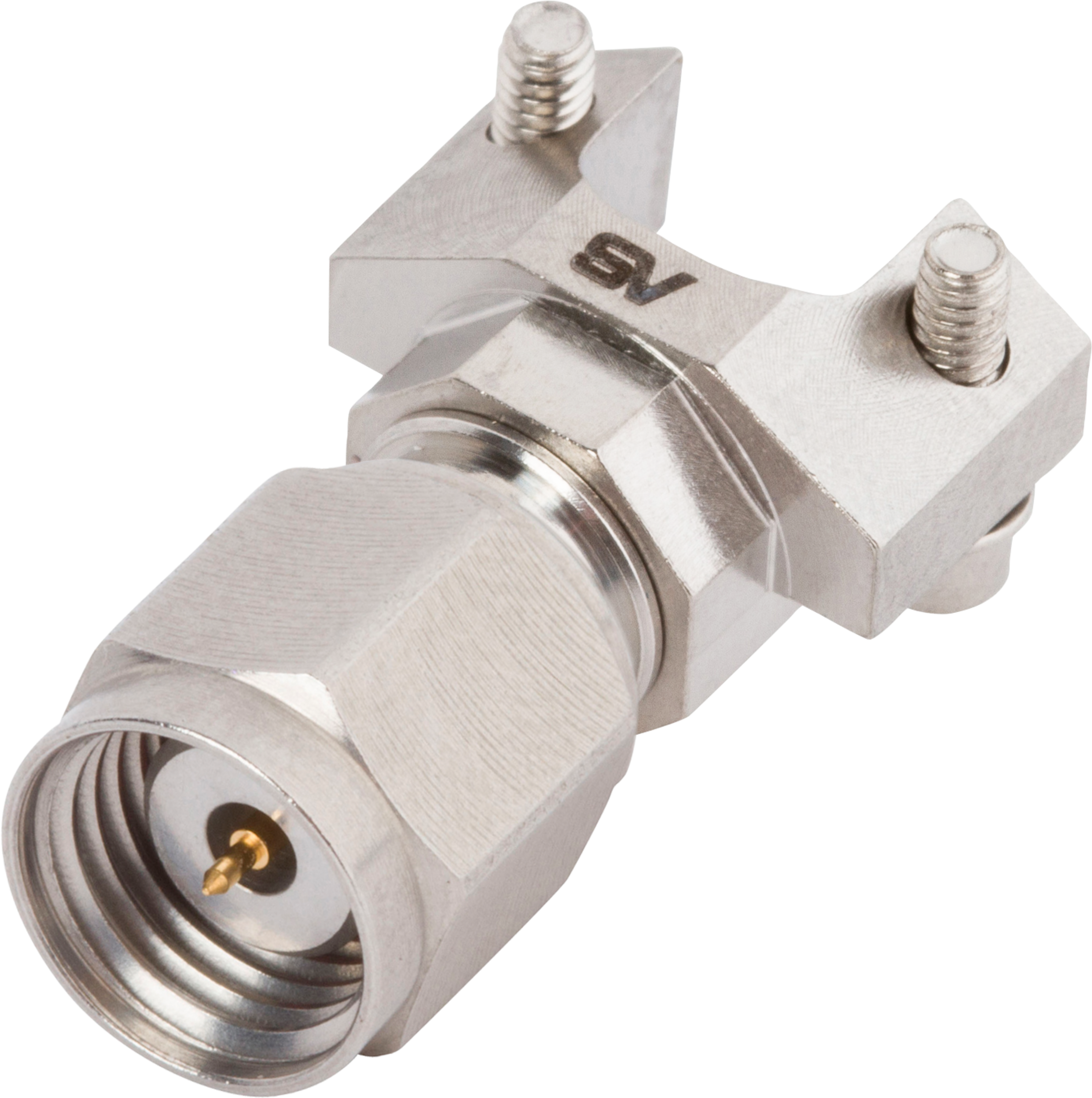

1.85mm Male Solderless PCB Edge Launch Connector, 2 Hole

Available Inventory: 74
SF3311-60012
1.85mm Connectors SF3311-60012
Datasheet
Part #   SF3321-60040

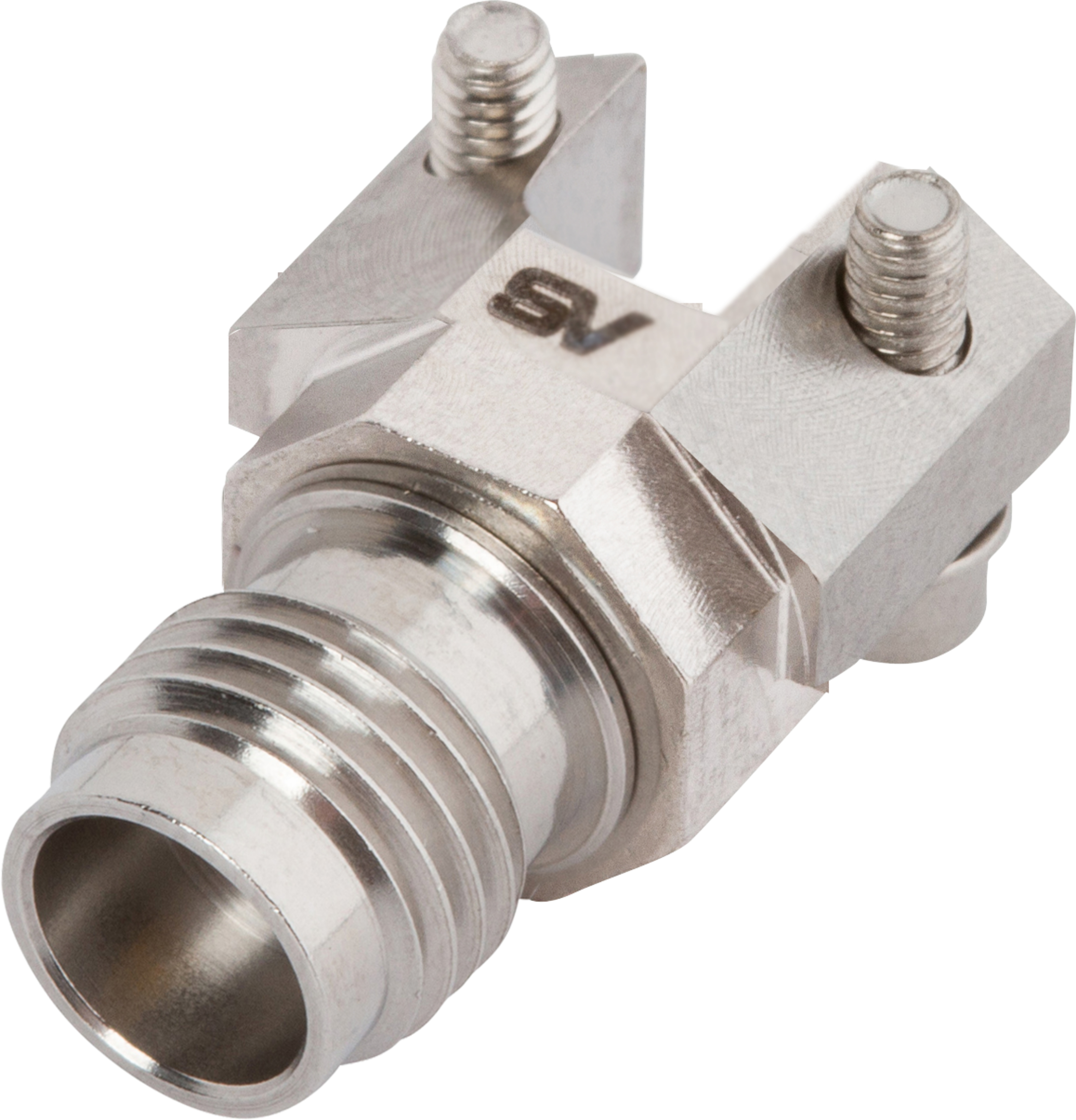

1.85mm Female Solderless PCB Reduced Flange Edge Launch Connector, 2 Hole
