Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | 1.85 mm |
| Gender | Jack (Female) |
| Orientation (Body) | Straight |
| Coupling | Threaded |
| Finish | Passivated |
| RF Series 2 | SMP |
| Gender 2 | Plug (Male) |
| Orientation 2 (Body) | Straight |
| Detent | Smooth Bore |
| Cable Builder Attributes | |
| Mating Connector | 2906-6002, 2911-40023 |
| Electrical | |
| Frequency | 40 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 500 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Mating Torque | 5 - 7 in - lbs |
| Intermateability | 2.4mm |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | 1.85 mm |
| Gender | Jack (Female) |
| Orientation (Body) | Straight |
| Coupling | Threaded |
| Finish | Passivated |
| RF Series 2 | SMP |
| Gender 2 | Plug (Male) |
| Orientation 2 (Body) | Straight |
| Detent | Smooth Bore |
| Cable Builder Attributes | |
| Mating Connector | 2906-6002, 2911-40023 |
| Electrical | |
| Frequency | 40 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 500 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Mating Torque | 5 - 7 in - lbs |
| Intermateability | 2.4mm |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Customers Also Viewed
Part # 1116-6094

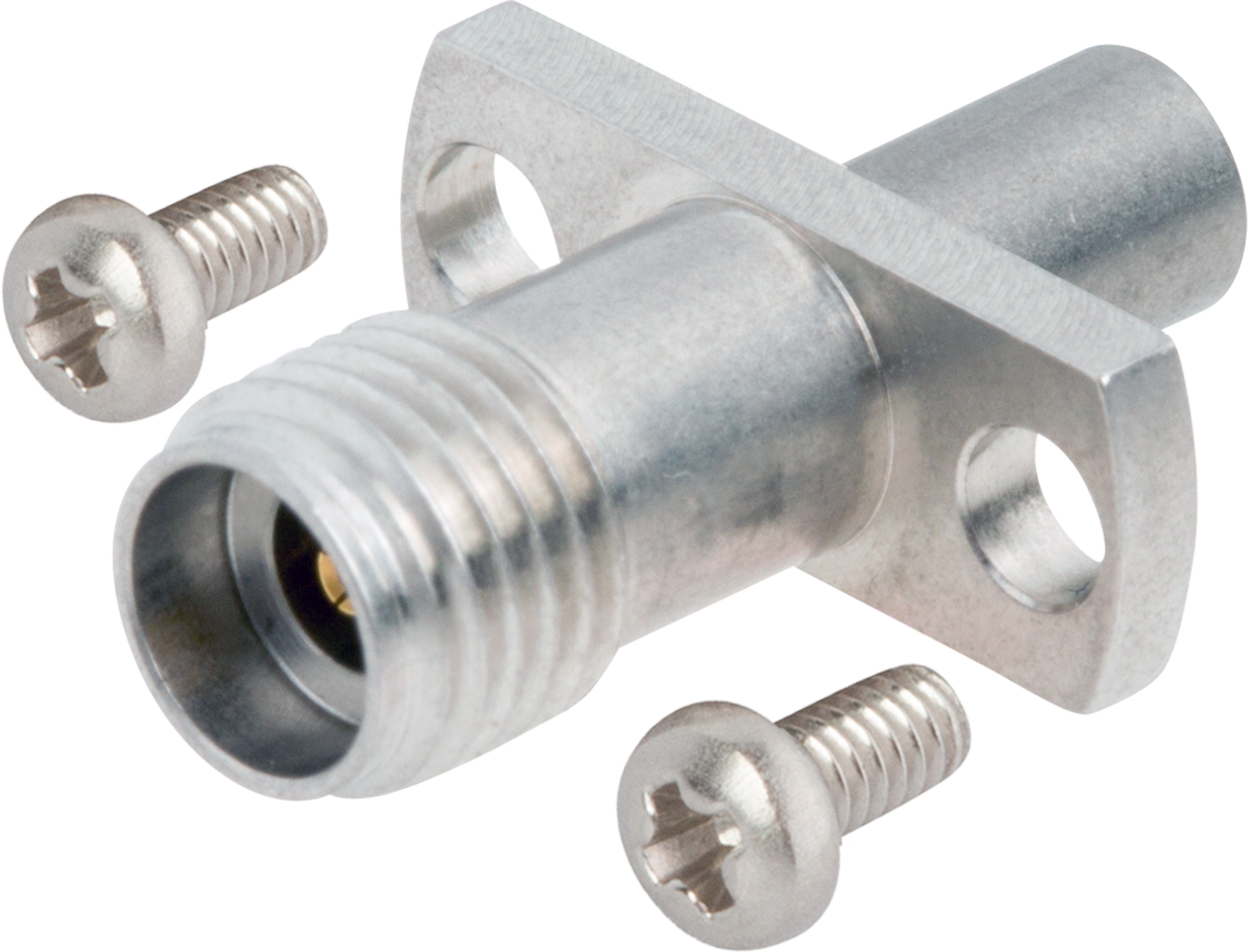

2.4mm Female to SMP Male, SB, Flange Mount Adapter, 2 Hole, with Screws
Available Inventory: 71
1116-6094
2.4mm Adapters 1116-6094
Part # 1116-6095

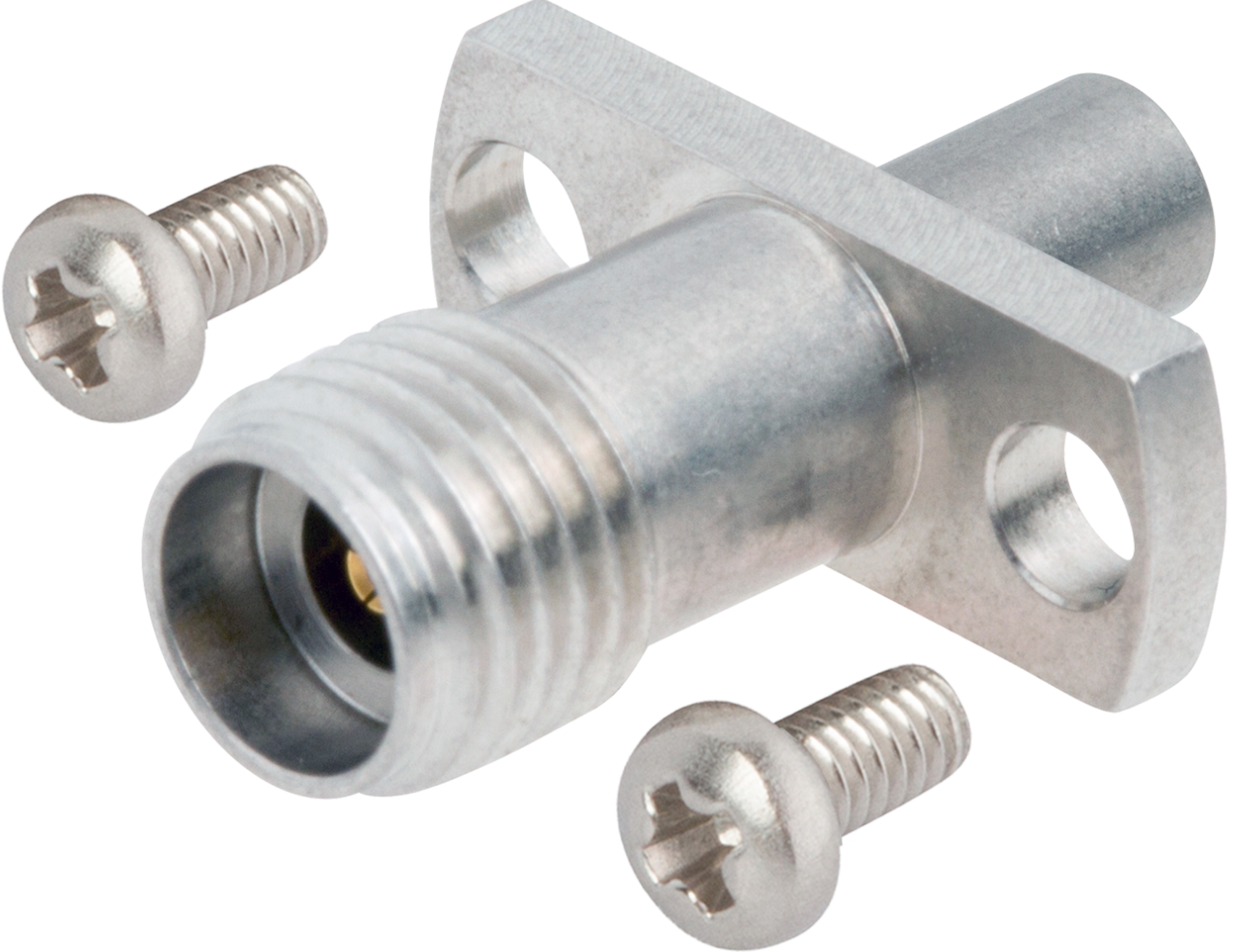

2.4mm Female to SMPM Male, FD, Flange Mount Adapter, 2 Hole, with Screws
Available Inventory: 54
1116-6095
2.4mm Adapters 1116-6095
Part # 1116-6096

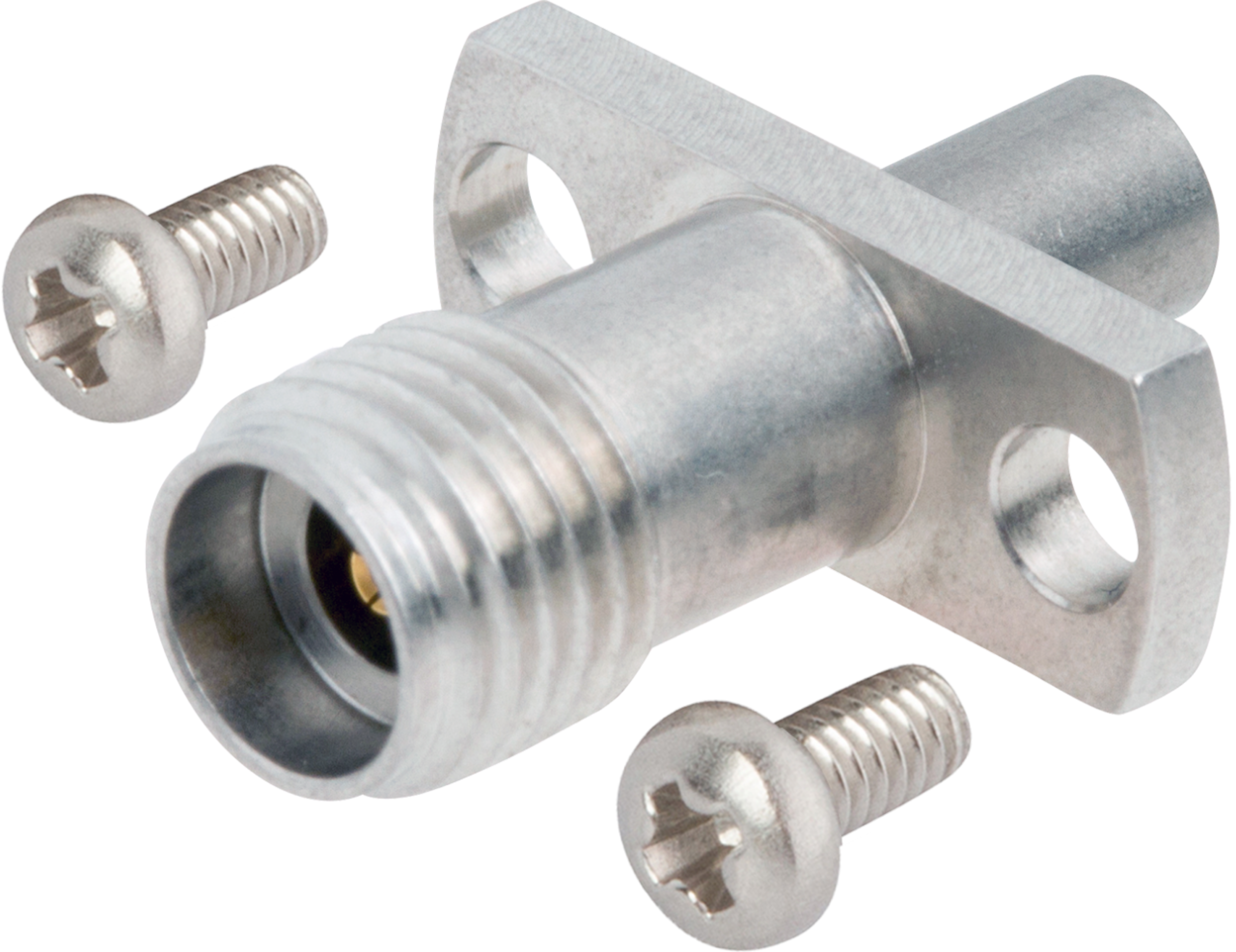

2.4mm Female to SMPM Male, SB, Flange Mount Adapter, 2 Hole, with Screws
