P/N: SF1132-6070

1.85mm Female to SMPM Male Adapter, SB

In stock at Qty Order
Digi-Key Electronics 9
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Detent Smooth Bore
Finish Passivated
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
RF Series 2 SMPM
Electrical
Impedance 50 ohms
Frequency 65 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Inter-mate ability 2.4mm
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Detent Smooth Bore
Finish Passivated
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
RF Series 2 SMPM
Electrical
Impedance 50 ohms
Frequency 65 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Inter-mate ability 2.4mm
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1133-6007

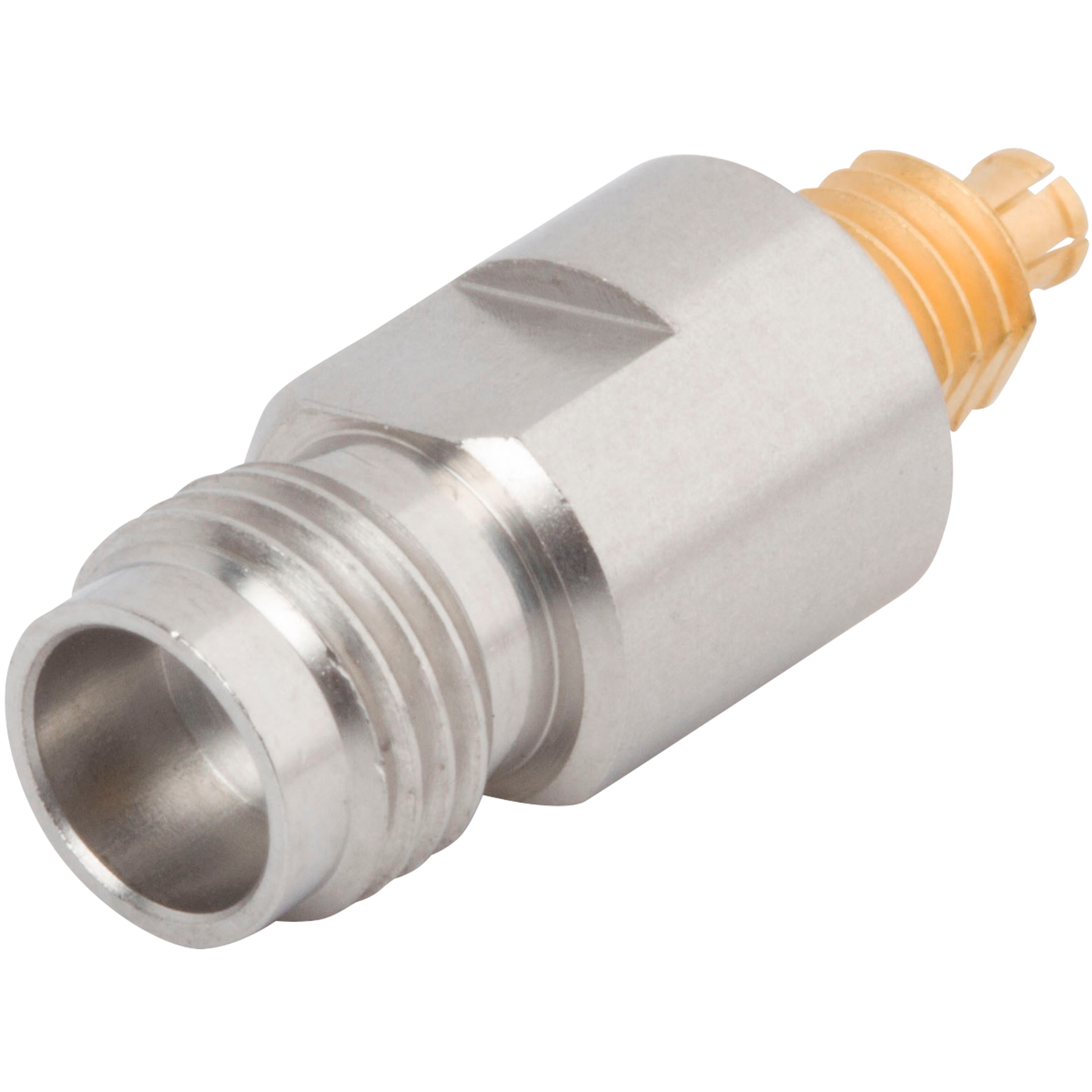

1.85mm Female to SMPM Thread-In Female Adapter

Available Inventory: 50
SF1133-6007
1.85mm Adapters SF1133-6007
Datasheet
Part #   SF1115-6084

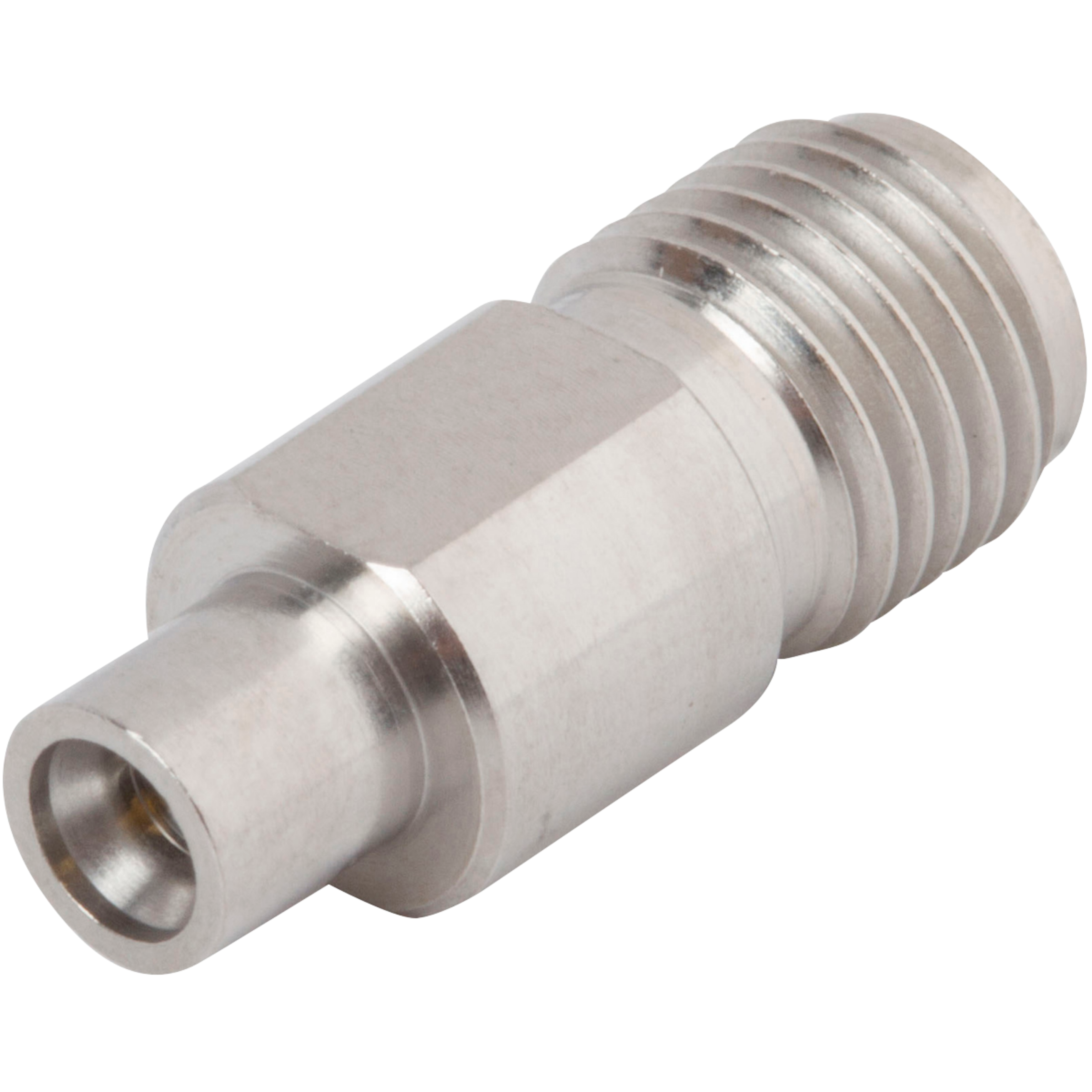

2.92mm Female to SMPM Male Adapter, FD

Available Inventory: 79
SF1115-6084
2.92mm Adapters SF1115-6084
Datasheet
Part #   SF1115-6087

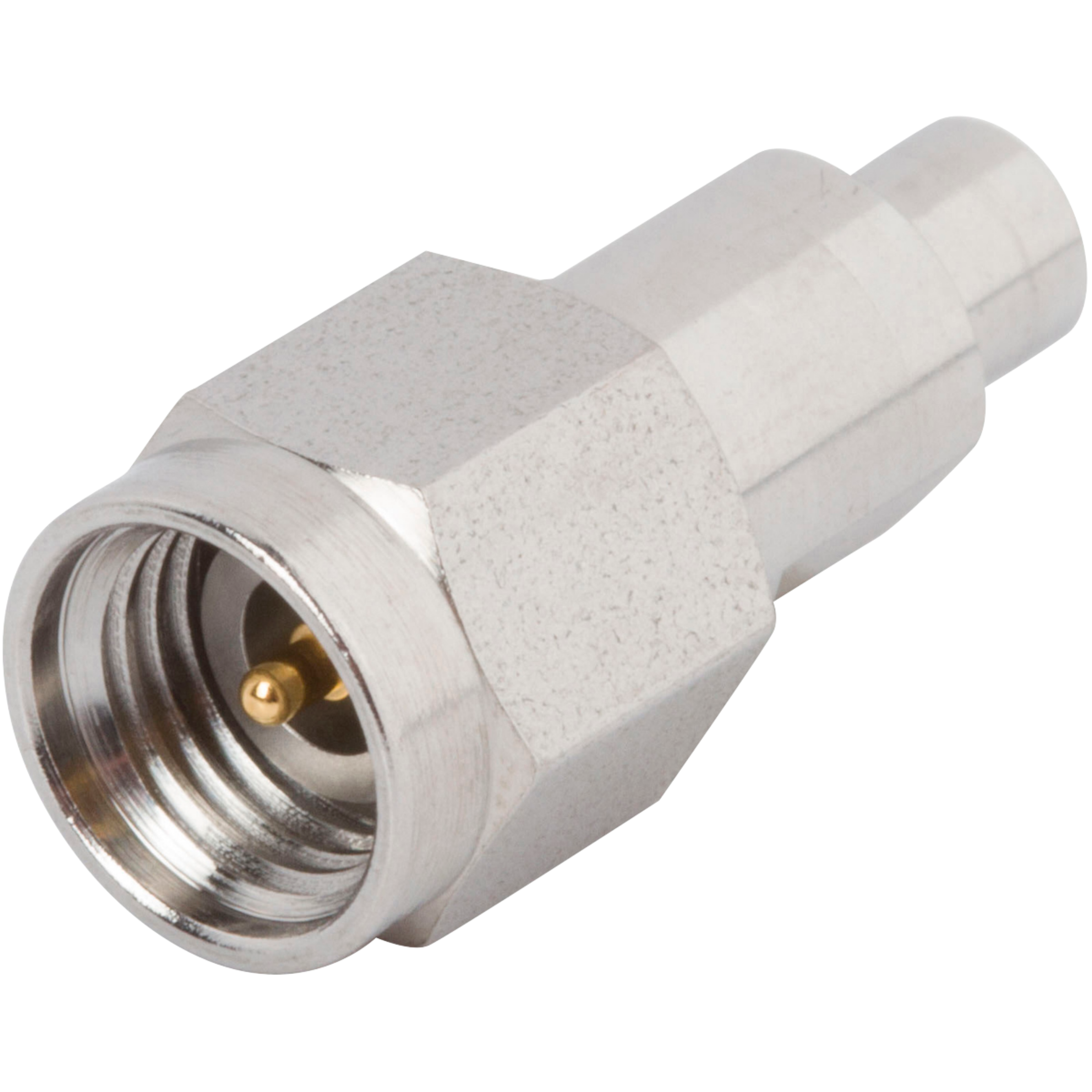

2.92mm Male to SMPM Male Adapter, SB
