P/N: 7033-0037

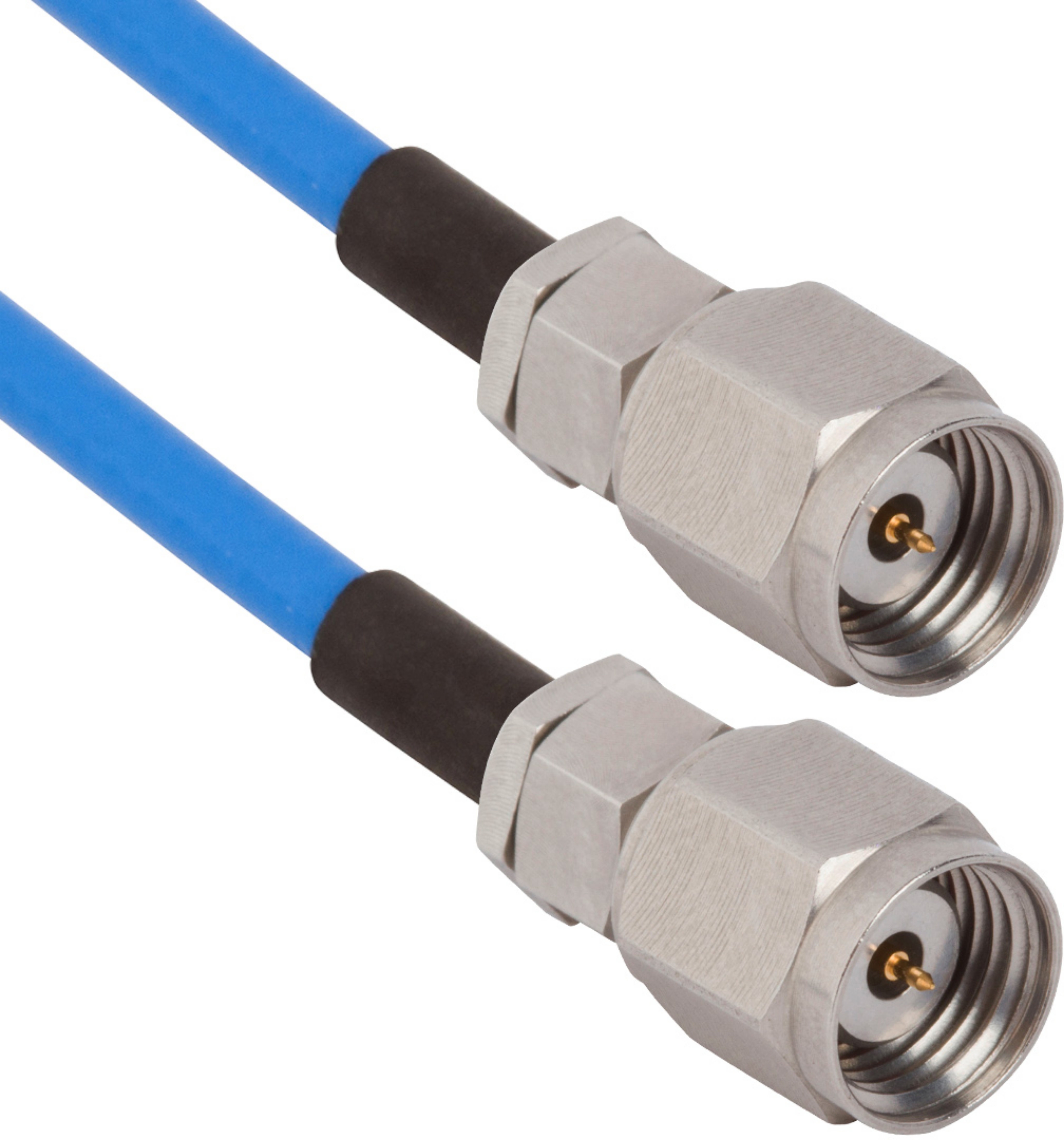

1.85mm Male to 1.85mm Male 6" Cable Assembly for .085 Cable

In stock at Qty Order
Digi-Key Electronics 10
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Number of Ports Single
RF Series 2 1.85 mm
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Cable Length 6"
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Inter-mate ability 2.4mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
