1.85mm Male to SMPM Male Adapter, FD
P/N: 1132-6147

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Finish Passivated
RF Series 2 SMPM
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Detent Full Detent
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Intermateability 2.4mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Finish Passivated
RF Series 2 SMPM
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Detent Full Detent
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Intermateability 2.4mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

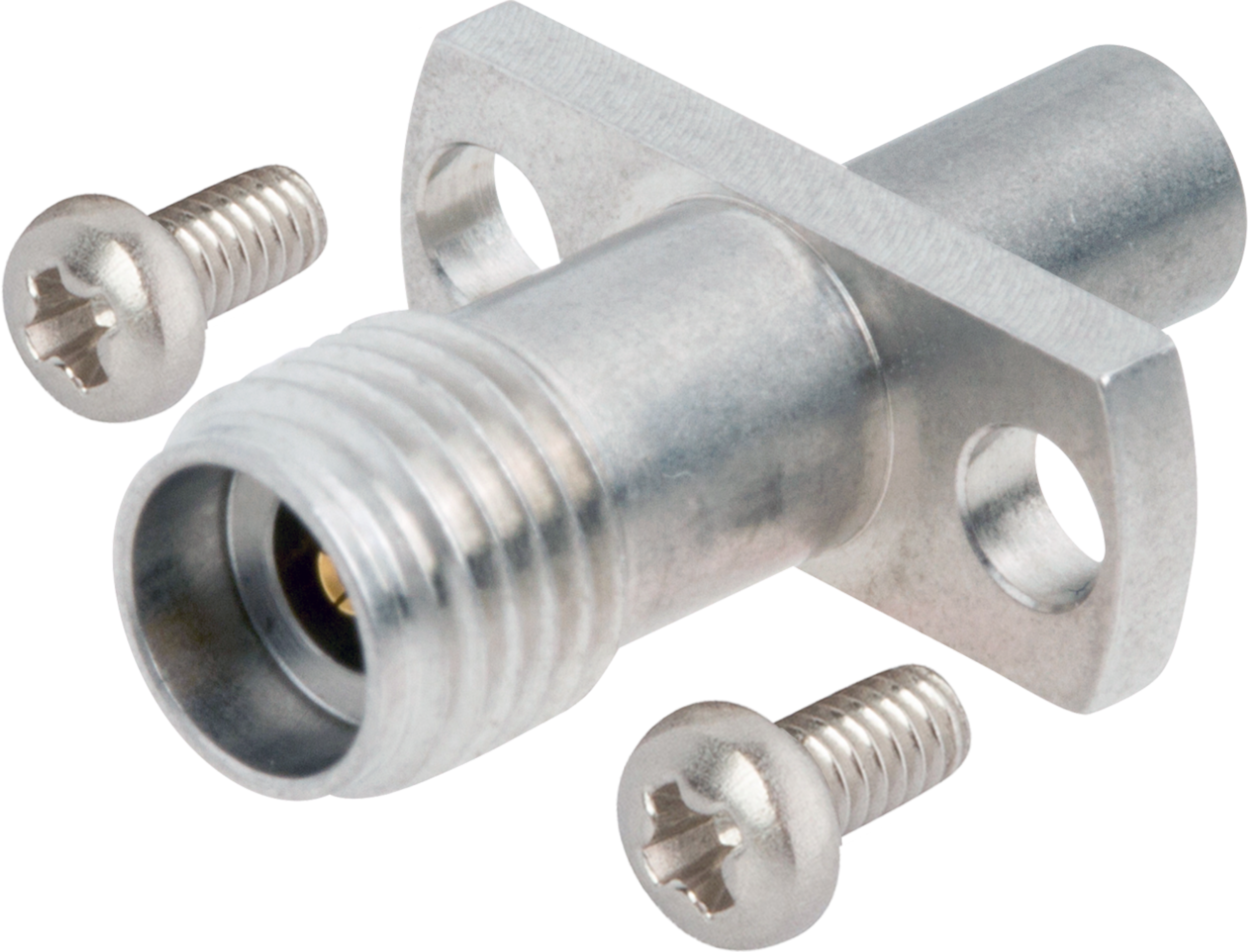

1116-6094
2.4mm Adapters 1116-6094
Datasheet

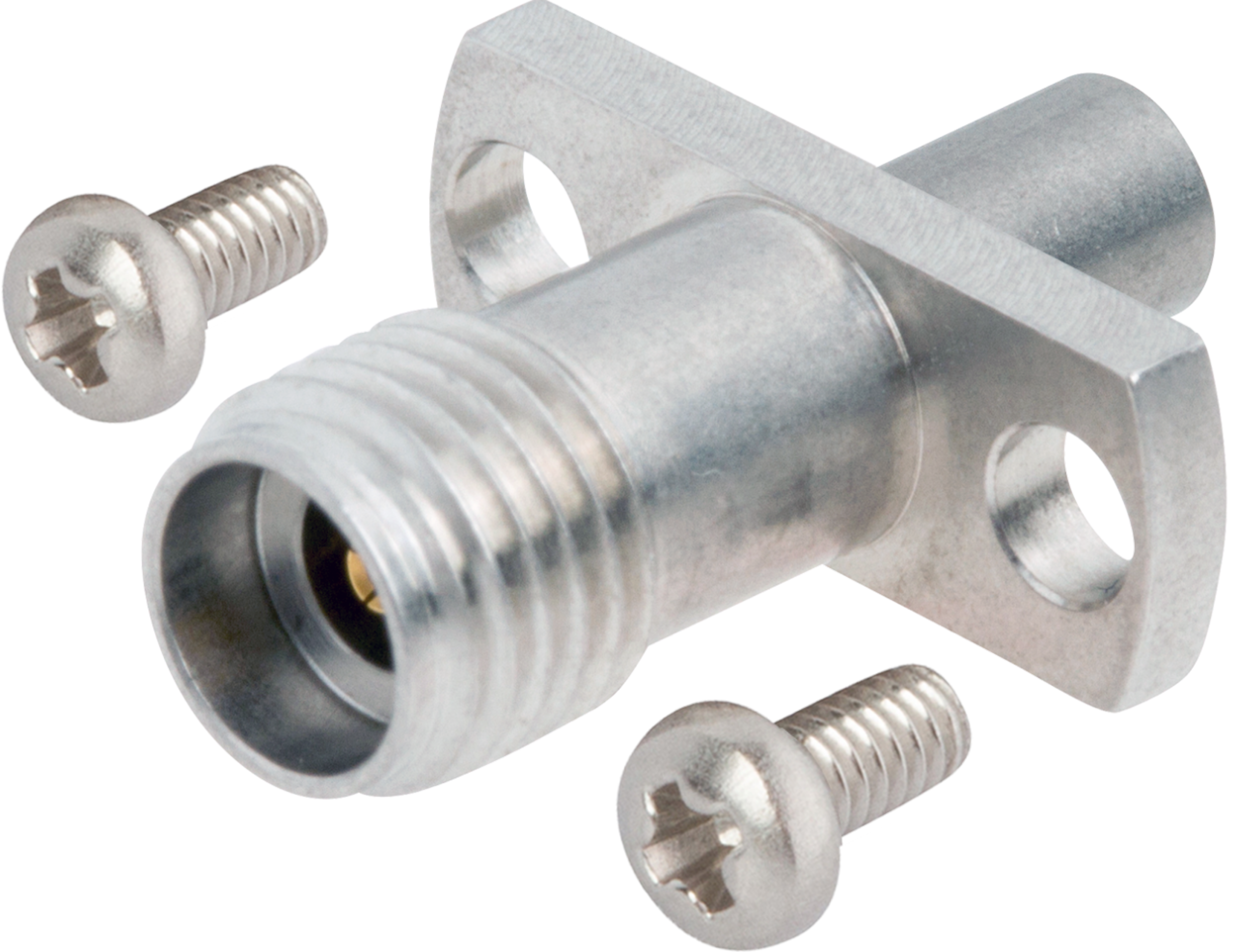

1116-6095
2.4mm Adapters 1116-6095
Datasheet

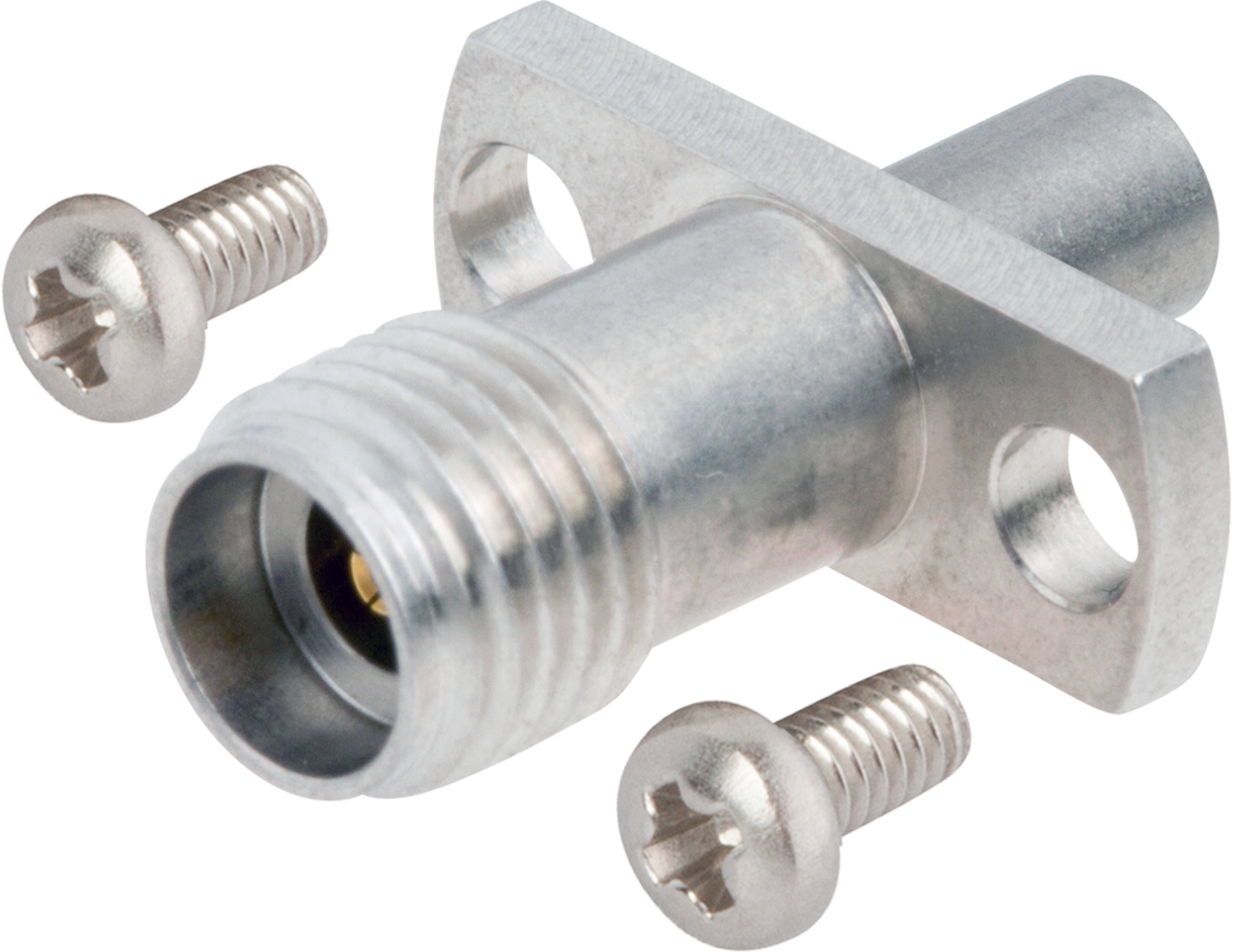

1116-6096
