P/N: SF1621-60014

2.4mm Female Connector for .047 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Gender Jack (Female)
Coupling Threaded
Orientation (Body) Straight
Termination Style Solder
Number of Ports Single
Cable Type 0.047 Flexible Coax
Frequency 50 GHz
Finish Passivated
Impedance 50 ohms
Electrical
Frequency GHz 50 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Gender Jack (Female)
Coupling Threaded
Orientation (Body) Straight
Termination Style Solder
Number of Ports Single
Cable Type 0.047 Flexible Coax
Frequency 50 GHz
Finish Passivated
Impedance 50 ohms
Electrical
Frequency GHz 50 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1611-60001

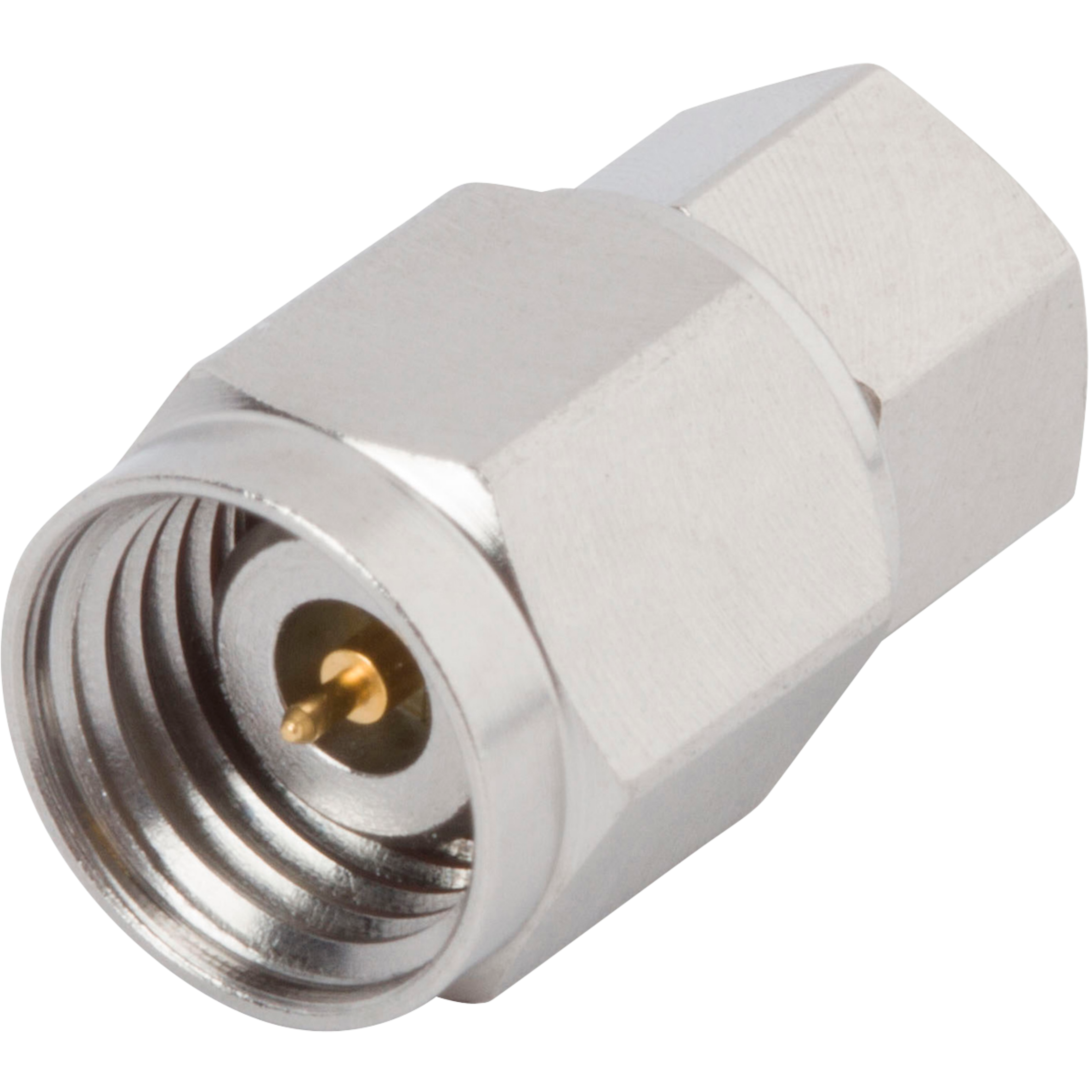

2.4mm Male Connector for .047 Cable

Available Inventory: 72
SF1611-60001
2.4mm Connectors SF1611-60001
Datasheet
Part #   SF1621-60005

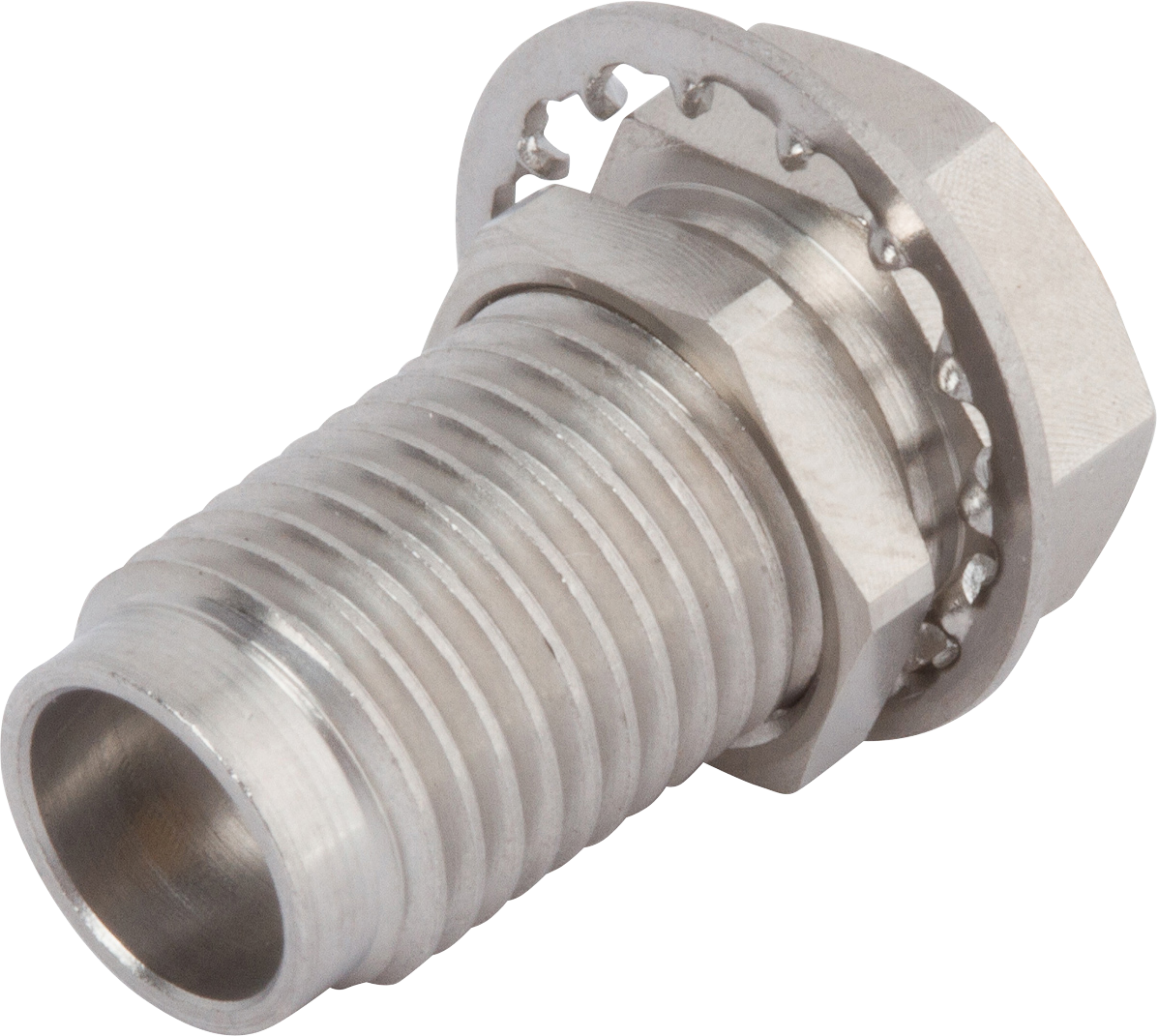

2.4mm Female Bulkhead Connector for .047 Cable

Available Inventory: 25
SF1621-60005
2.4mm Connectors SF1621-60005
Datasheet
Part #   SF1621-60009

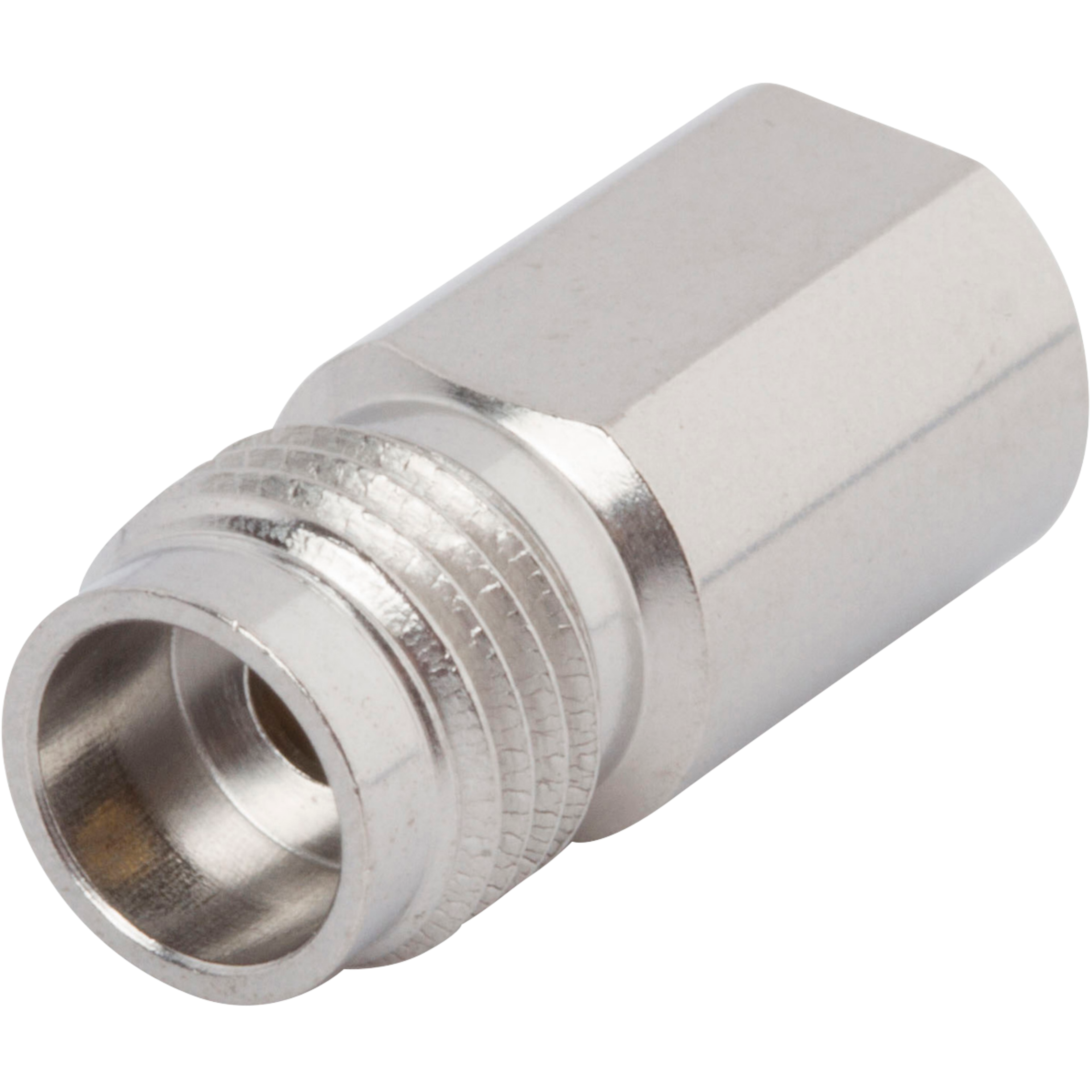

2.4mm Female Connector for .085 Cable
