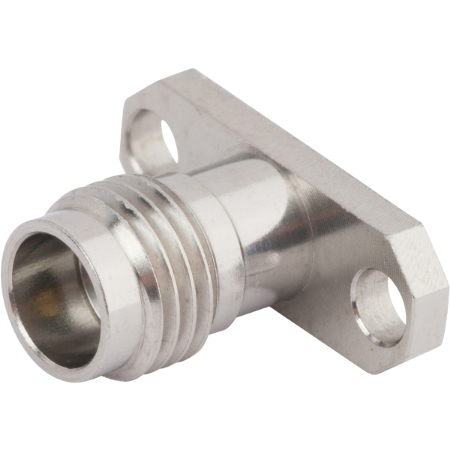

2.4mm Female Flange Mount Connector, 2 Hole (Accepts Ø.012 Pin)
P/N: SF1621-60017

In stock at Qty Order
Digi-Key Electronics 39
Mouser Electronics 26
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Orientation (Body) Straight
Gender Jack (Female)
Mounting Type Panel
Coupling Threaded
Body Style 2 Hole
Number of Ports Single
Finish Passivated
Electrical
Frequency 50 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 12/2/2022 1:08:28 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Orientation (Body) Straight
Gender Jack (Female)
Mounting Type Panel
Coupling Threaded
Body Style 2 Hole
Number of Ports Single
Finish Passivated
Electrical
Frequency 50 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   2933-6001

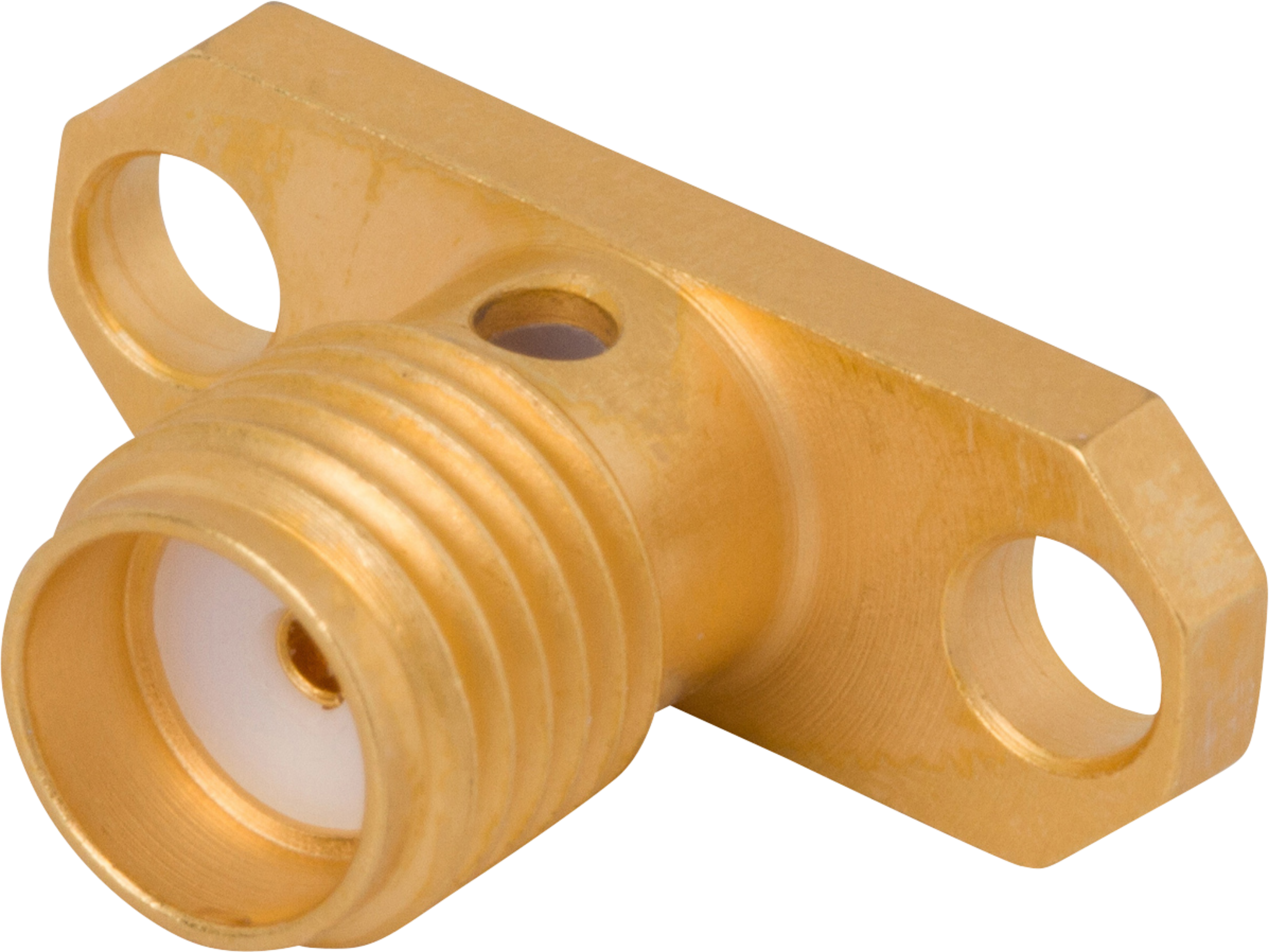

SMA Female Flange Mount Connector, 2 Hole, for .085 Cable

Available Inventory: 281
2933-6001
SMA Connectors 2933-6001
Datasheet
Part #   SF1552-6002

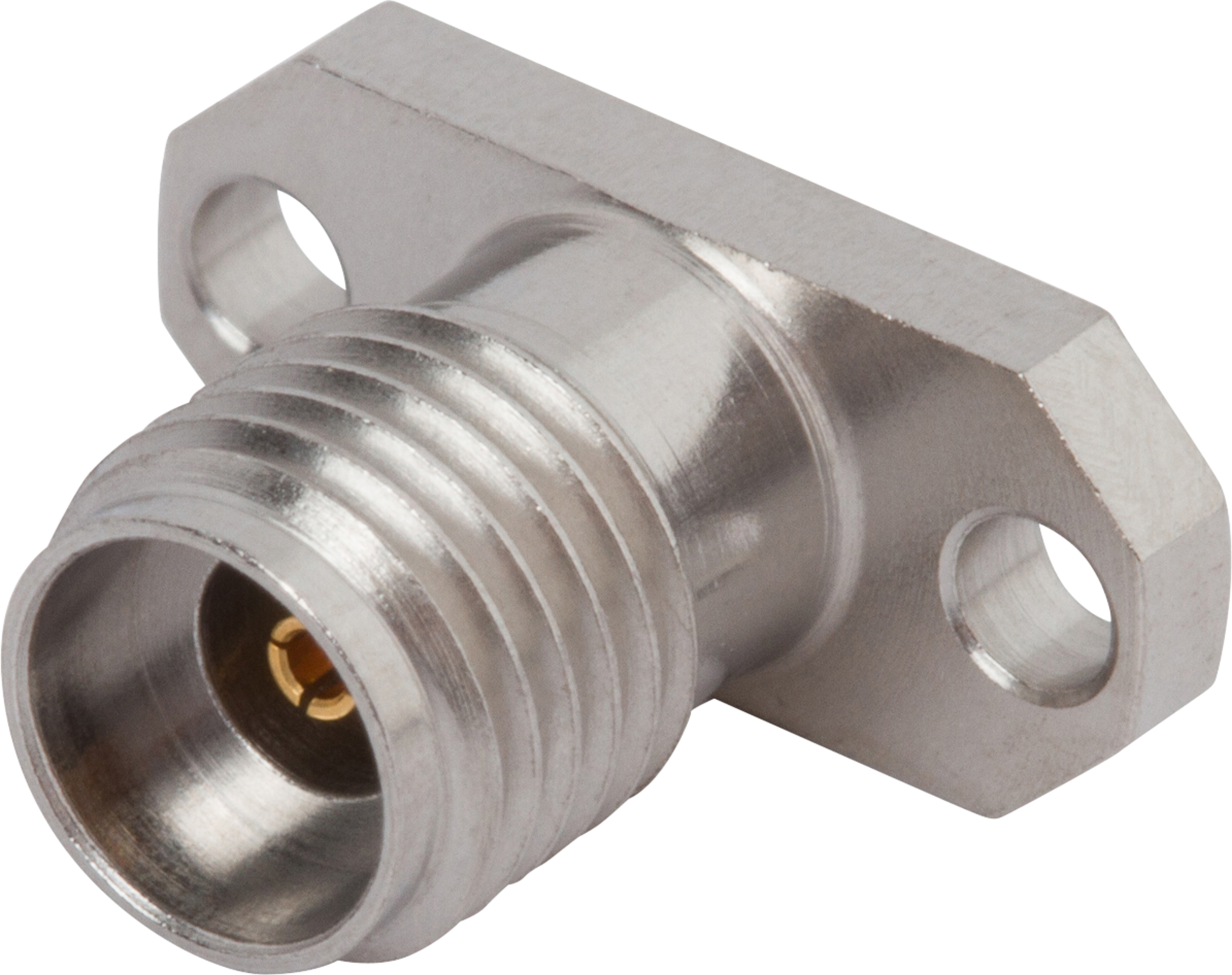

2.92mm Female Flange Mount Connector, 2 Hole (Accepts Ø.012 Pin)

Available Inventory: 1518
SF1552-6002
2.92mm Connectors SF1552-6002
Datasheet
Part #   SF2950-6062

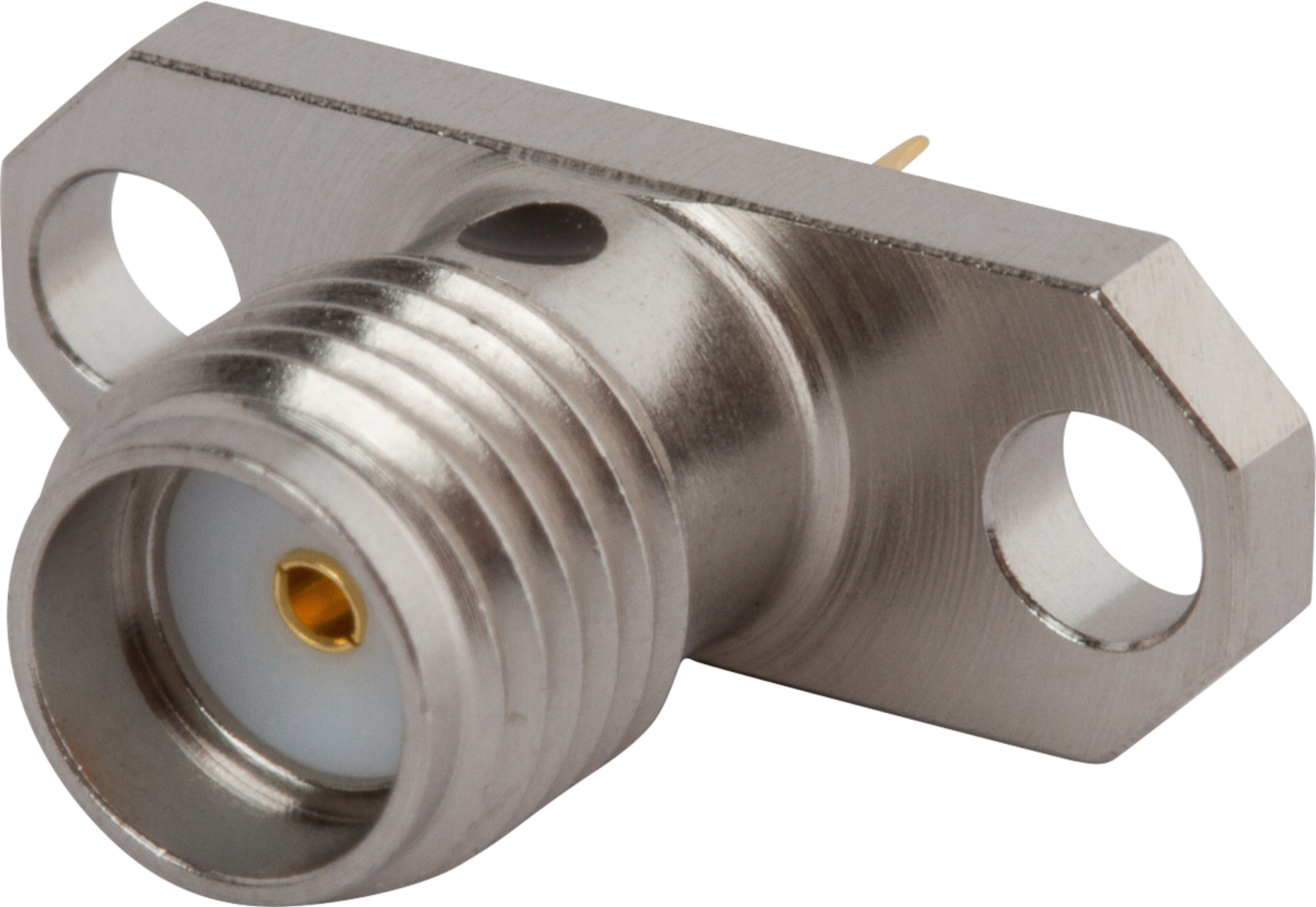

SMA Female Flange Mount Connector, 2 Hole (Solder Pot)
