P/N: SF1116-6003

2.4mm Female to 2.92mm Male Adapter

In stock at Qty Order
Electro Enterprises Inc 26
PEI-Genesis 23
Master Electronics 21
Mouser Electronics 14
Heilind Electronics 3
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Coupling Threaded
Orientation (Body) Straight
Gender Plug (Male)
Frequency 40 GHz
Finish Passivated
Impedance 50 ohms
RF Series 2 2.92 mm
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Impedance (Ω) 50
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -100 dB
Frequency GHz 50 GHz
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Coupling Threaded
Orientation (Body) Straight
Gender Plug (Male)
Frequency 40 GHz
Finish Passivated
Impedance 50 ohms
RF Series 2 2.92 mm
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Impedance (Ω) 50
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -100 dB
Frequency GHz 50 GHz
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1115-6009

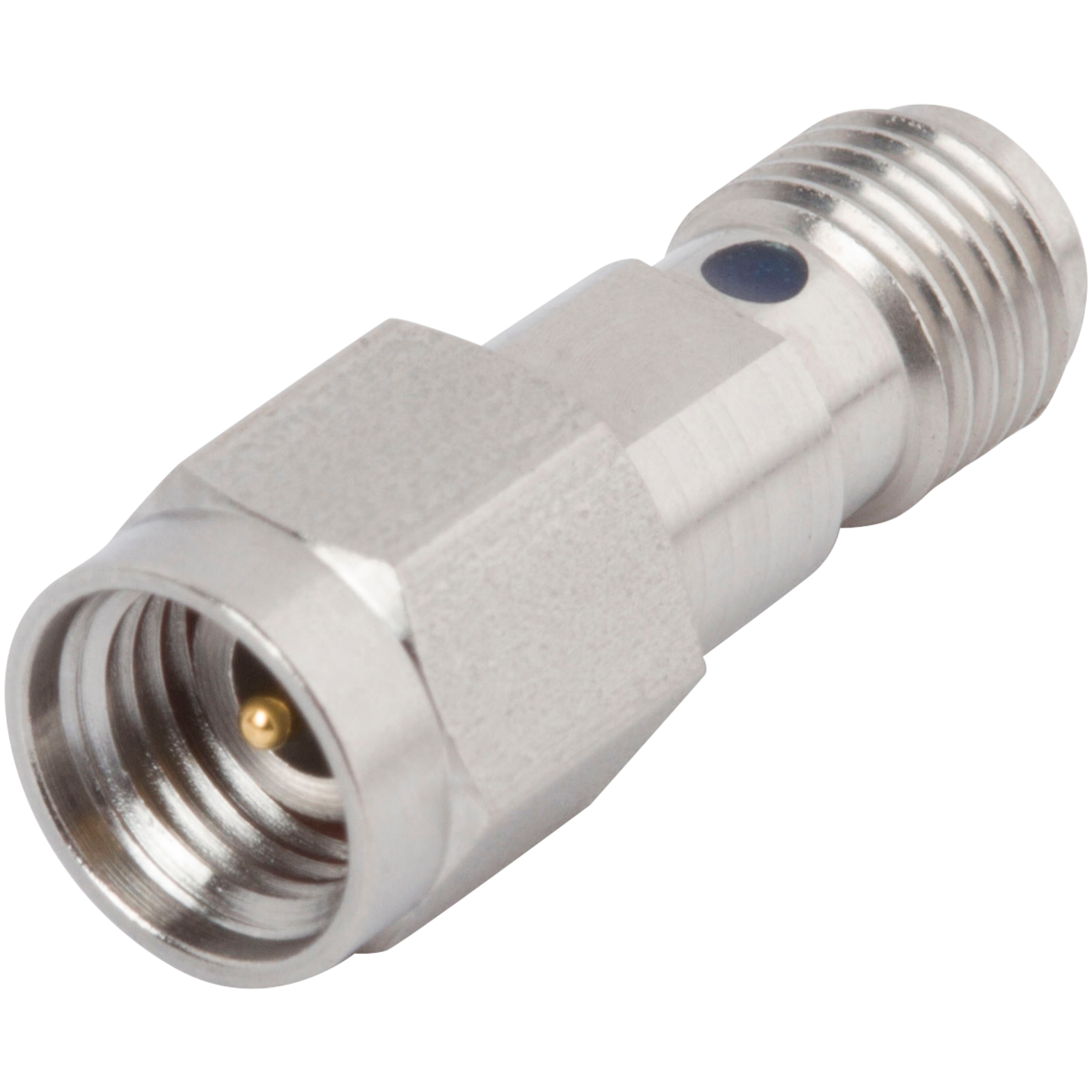

2.92mm Male to SMA Female Adapter

Available Inventory: 267
SF1115-6009
2.92mm Adapters SF1115-6009
Datasheet
Part #   SF1116-6002

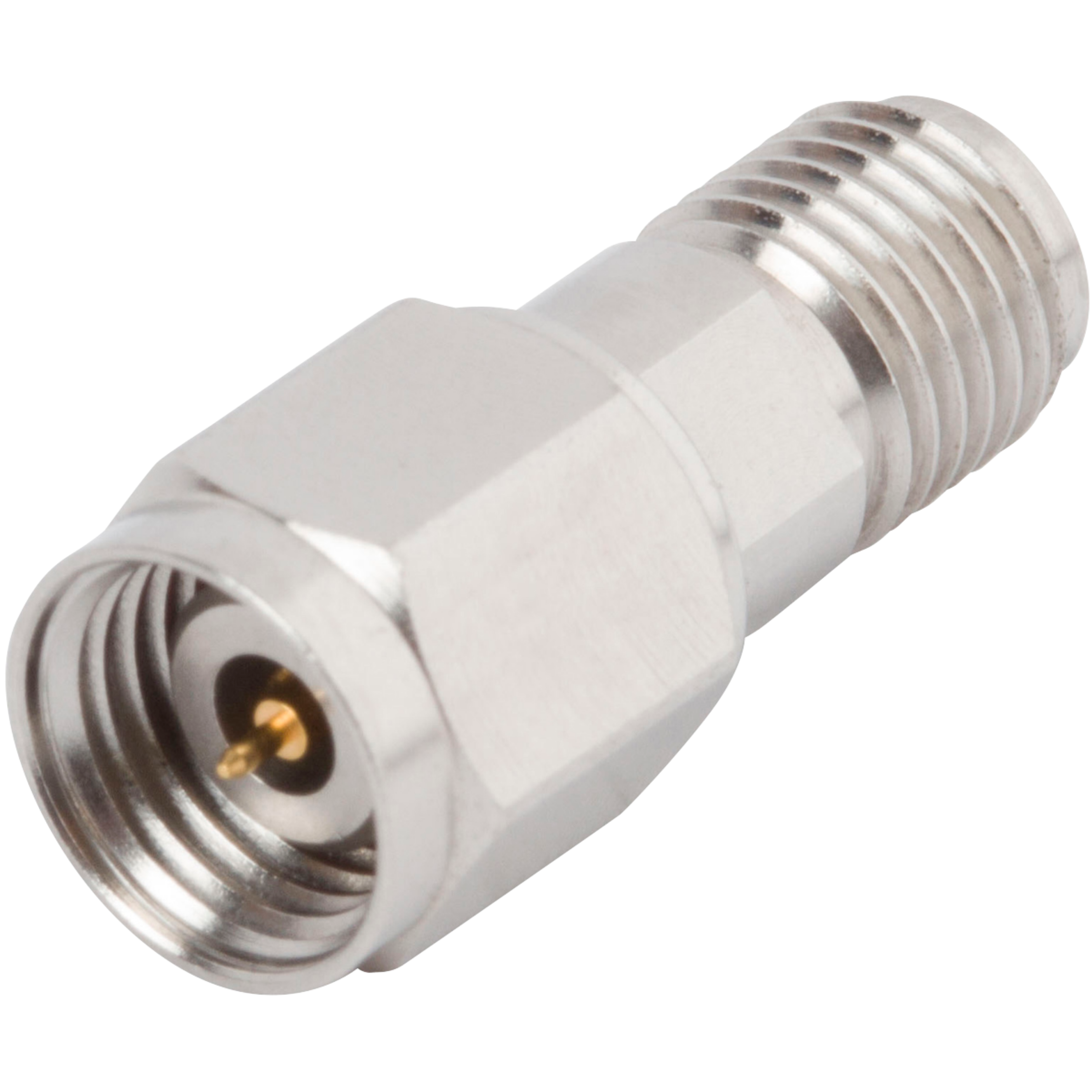

2.4mm Male to 2.92mm Female Adapter

Available Inventory: 409
SF1116-6002
2.4mm Adapters SF1116-6002
Datasheet
Part #   SF1116-6004

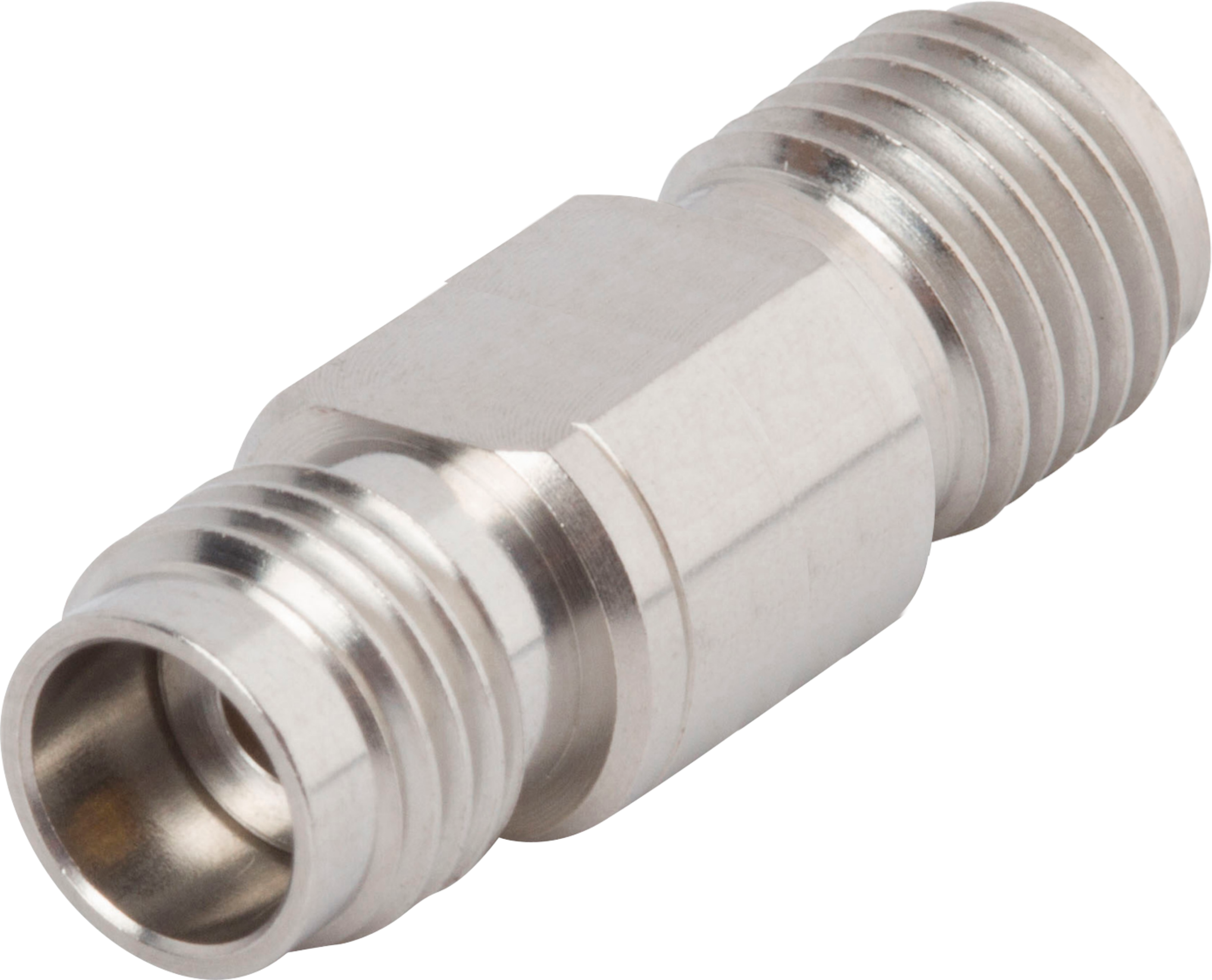

2.4mm Female to 2.92mm Female Adapter
