P/N: 1116-6097

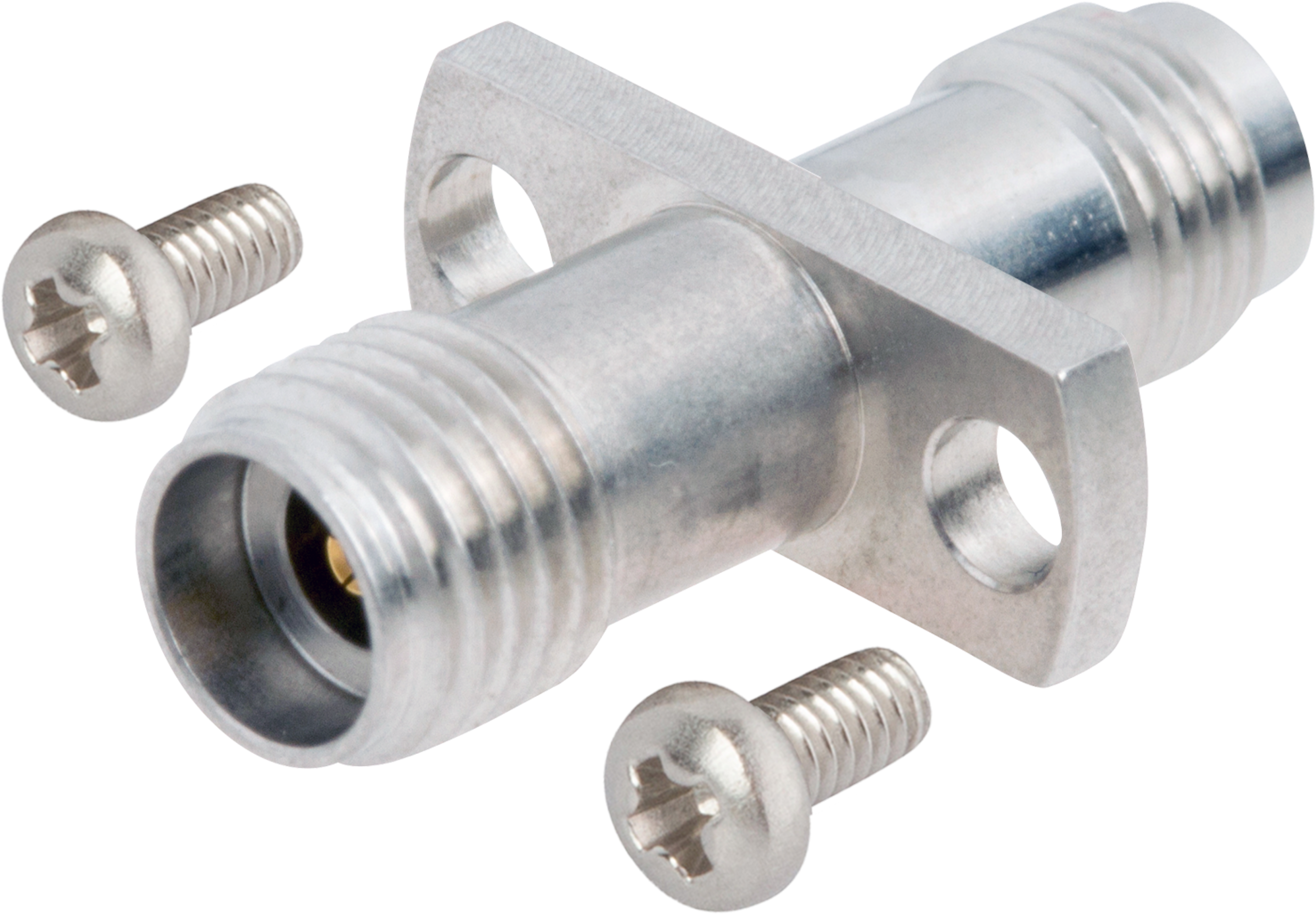

2.4mm Female to Female Flange Mount Adapter, 2 Hole, with Screws

In stock at Qty Order
Digi-Key Electronics 50
Newark 25
Farnell 25
Mouser Electronics 23
Products specifications
Attribute name Attribute value
Gender Jack (Female)
RF Series 2.4 mm
Orientation (Body) Straight
Coupling Threaded
Body Style 2 Hole
Mounting Type Panel
Impedance 50 ohms
Frequency 50 GHz
Finish Gold
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
RF Series 2 2.4 mm
Electrical
Impedance (Ω) 50
Frequency GHz 50 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
