P/N: 7016-0060

2.4mm Male to 2.92mm Male 6" Cable Assembly for .047 Cable

In stock at Qty Order
Mouser Electronics 6
Digi-Key Electronics 5
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Orientation (Body) Straight
Gender Plug (Male)
Coupling Threaded
Impedance 50 ohms
Orientation 2 (Body) Straight
Frequency 40 GHz
Gender 2 Plug (Male)
RF Series 2 2.92 mm
Cable Type 0.047 Flexible Coax
Cable Length 6"
Electrical
Frequency GHz 50 GHz
Impedance (Ω) 50
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Orientation (Body) Straight
Gender Plug (Male)
Coupling Threaded
Impedance 50 ohms
Orientation 2 (Body) Straight
Frequency 40 GHz
Gender 2 Plug (Male)
RF Series 2 2.92 mm
Cable Type 0.047 Flexible Coax
Cable Length 6"
Electrical
Frequency GHz 50 GHz
Impedance (Ω) 50
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   7015-0717

2.92mm Male to 2.92mm Male 6" Cable Assembly for .047 Cable

Available Inventory: 16
7015-0717
2.92mm Cable Assemblies 7015-0717
Datasheet
Part #   7016-0058

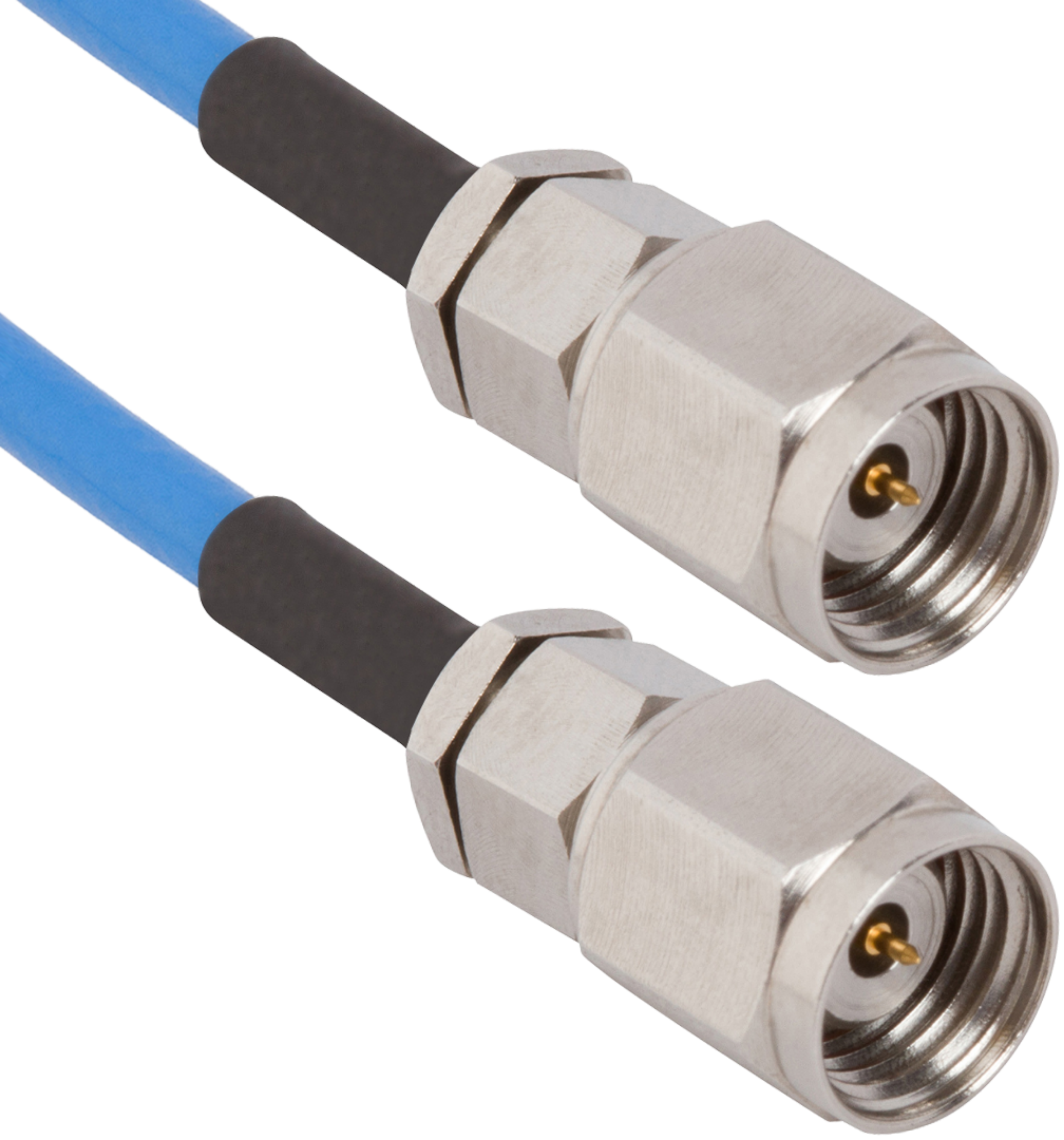

2.4mm Male to 2.4mm Male 6" Cable Assembly for .085 Cable"

Available Inventory: 32
7016-0058
2.4mm Cable Assemblies 7016-0058
Datasheet
Part #   7016-0062

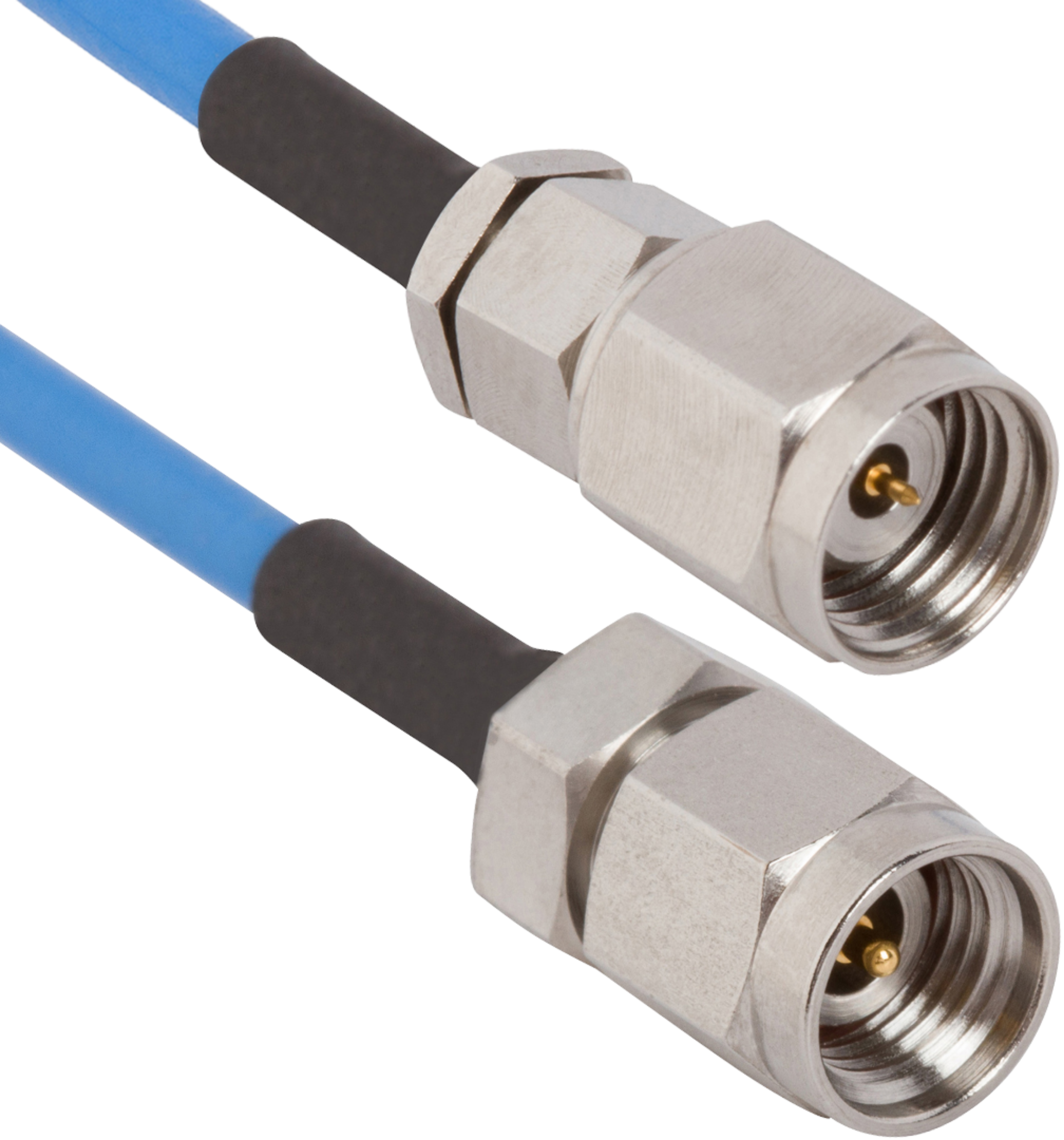

2.4mm Male to 2.92mm Male 6" Cable Assembly for .085 Cable"
