P/N: 1521-60194

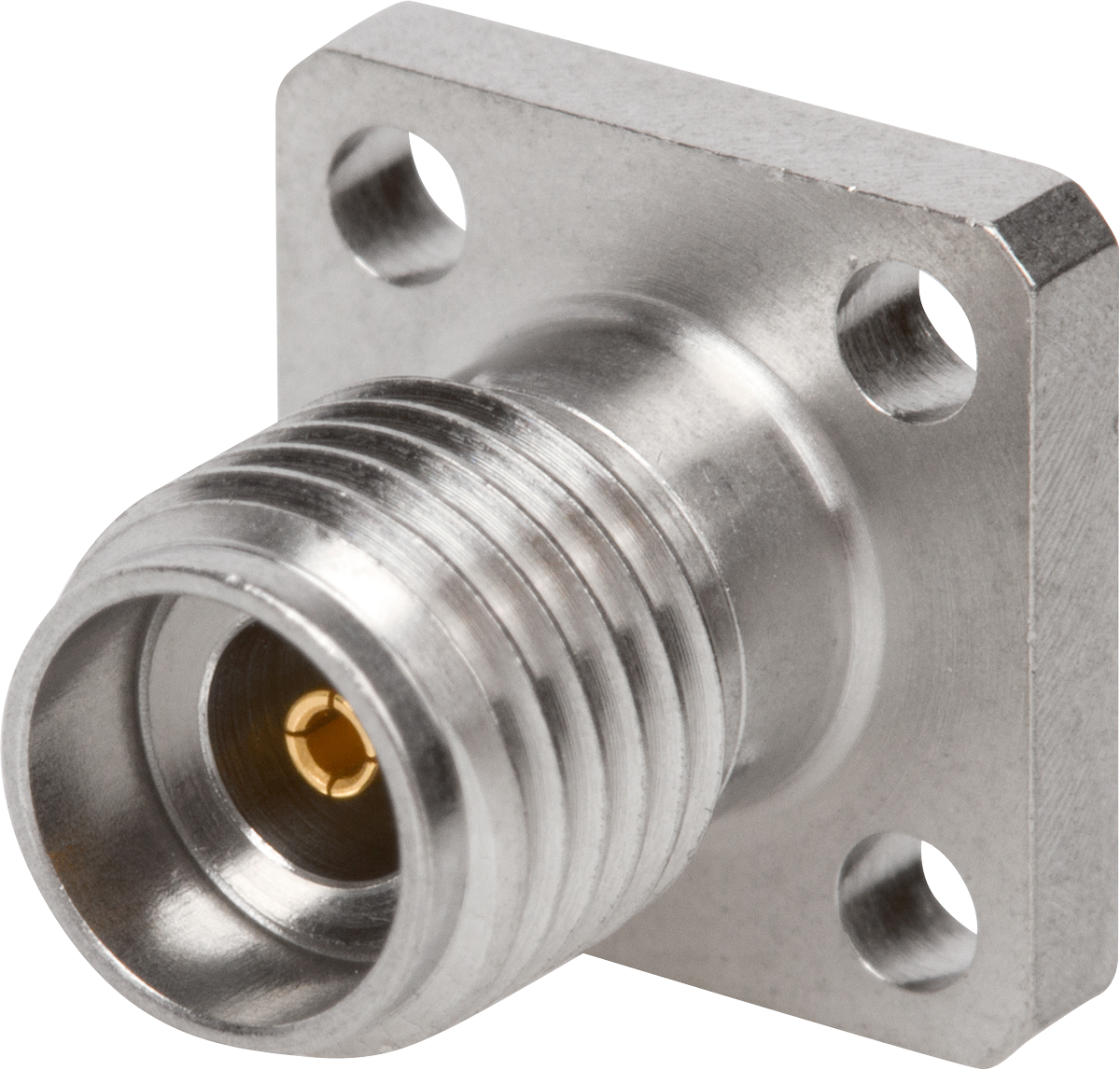

2.92mm Female Field Replaceable Flange Mount Connector, 4 Hole (Accepts Ø.012 Pin)

In stock at Qty Order
Mouser Electronics 69
Farnell 4
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Orientation (Body) Straight
Coupling Threaded
Gender Jack (Female)
Mounting Type Panel
Body Style 4 Hole
Frequency 40 GHz
Number of Ports Single
Impedance 50 ohms
Electrical
Frequency GHz 40 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Shock MIL-STD-202, Method 213, Condition I
