P/N: SF1521-60107

2.92mm Female Solderless PCB Edge Launch Connector, 2 Hole

In stock at Qty Order
Mouser Electronics 42
Heilind Electronics 25
Farnell 20
TTI Inc Global Headquarters 10
Master Electronics 9
Arrow Electronics Inc 1
Products specifications
Attribute name Attribute value
Family Solderless
Orientation (Body) Straight
RF Series 2.92 mm
Gender Jack (Female)
Mounting Type PCB Edge Launch
Coupling Threaded
Body Style 2 Hole
Termination Style Solder-free
Number of Ports Single
Frequency 40 GHz
Impedance 50 ohms
Finish Passivated
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Inter-mate ability SMA
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family Solderless
Orientation (Body) Straight
RF Series 2.92 mm
Gender Jack (Female)
Mounting Type PCB Edge Launch
Coupling Threaded
Body Style 2 Hole
Termination Style Solder-free
Number of Ports Single
Frequency 40 GHz
Impedance 50 ohms
Finish Passivated
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Inter-mate ability SMA
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed

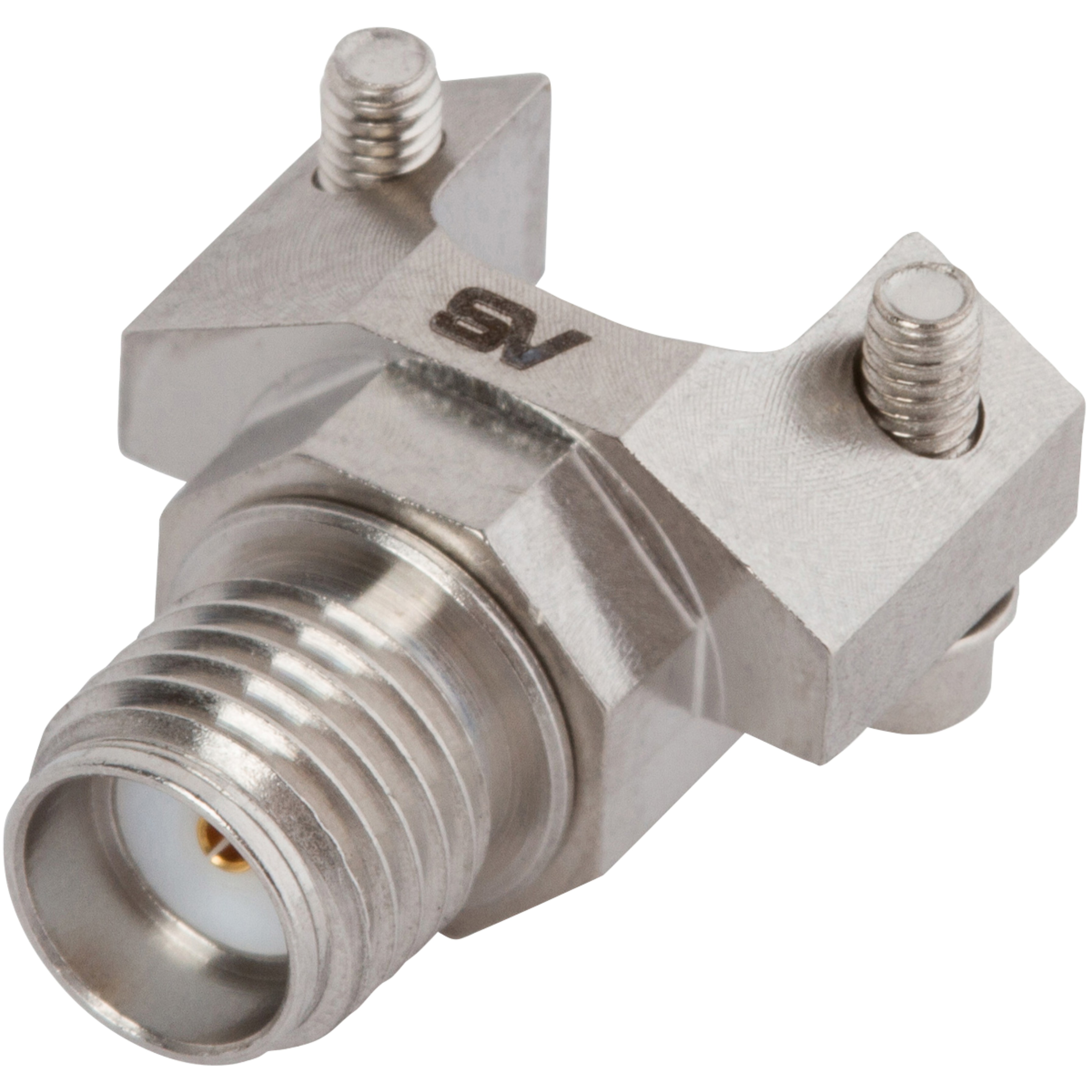

Part #   SF2921-61450

SMA Female Solderless PCB Edge Launch Connector, 2 Hole

Available Inventory: 289
SF2921-61450
SMA Connectors SF2921-61450
Datasheet

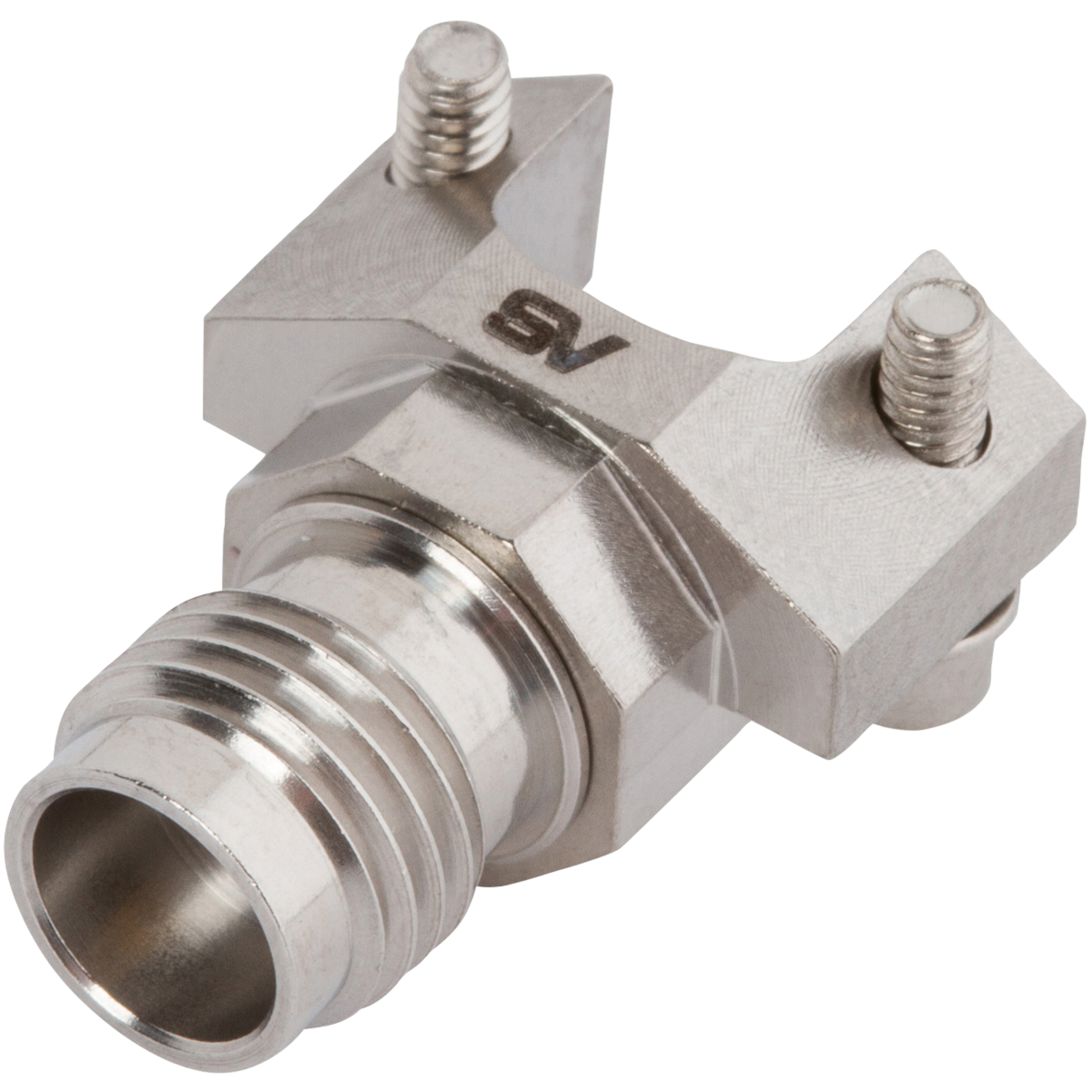

Part #   SF1621-60036

2.4mm Female Solderless PCB Edge Launch Connector, 2 Hole

Available Inventory: 195
SF1621-60036
2.4mm Connectors SF1621-60036
Datasheet

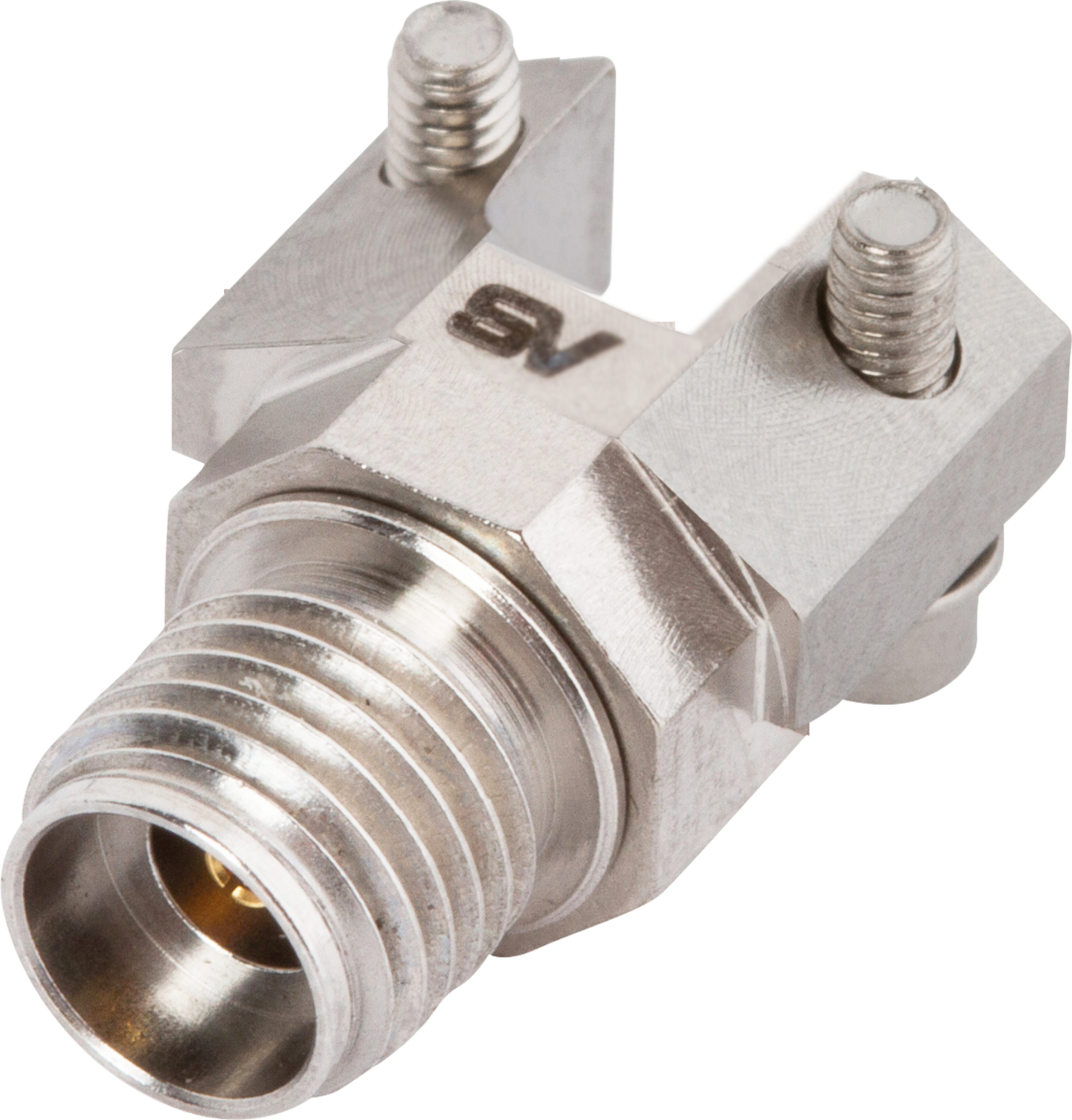

Part #   SF1521-60150
