P/N: SF1590-6000

2.92mm Female to Female Adapter

In stock at Qty Order
Digi-Key Electronics 360
TTI Inc Global Headquarters 100
Mouser Electronics 95
Arrow Electronics Inc 69
Farnell 38
Electro Enterprises Inc 29
Master Electronics 25
Heilind Electronics 12
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Frequency 40 GHz
Finish Passivated
Impedance 50 ohms
RF Series 2 2.92 mm
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Impedance (Ω) 50
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Frequency 40 GHz
Finish Passivated
Impedance 50 ohms
RF Series 2 2.92 mm
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Impedance (Ω) 50
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

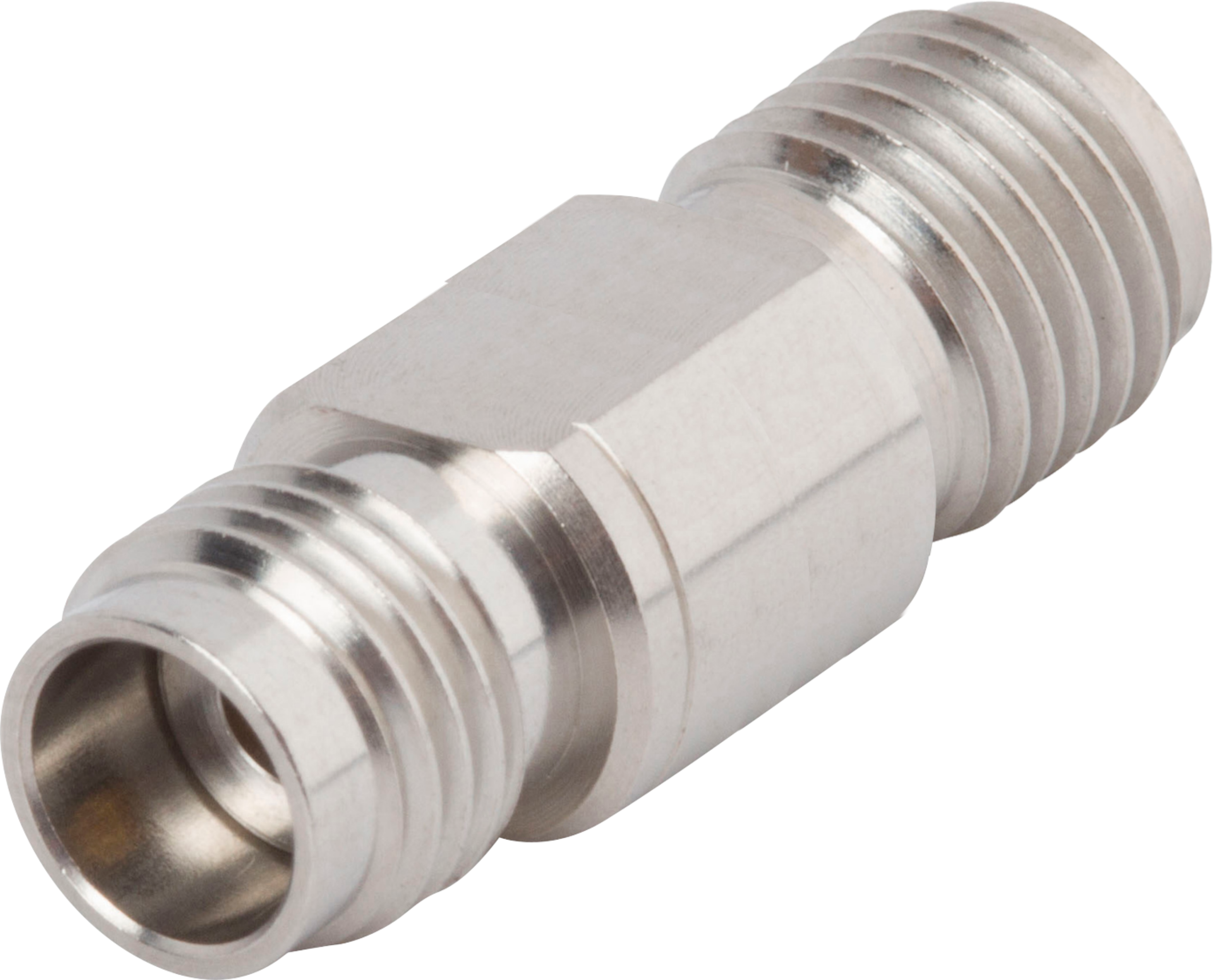

Part #   SF1116-6004

2.4mm Female to 2.92mm Female Adapter

Available Inventory: 231
SF1116-6004
2.4mm Adapters SF1116-6004
Datasheet

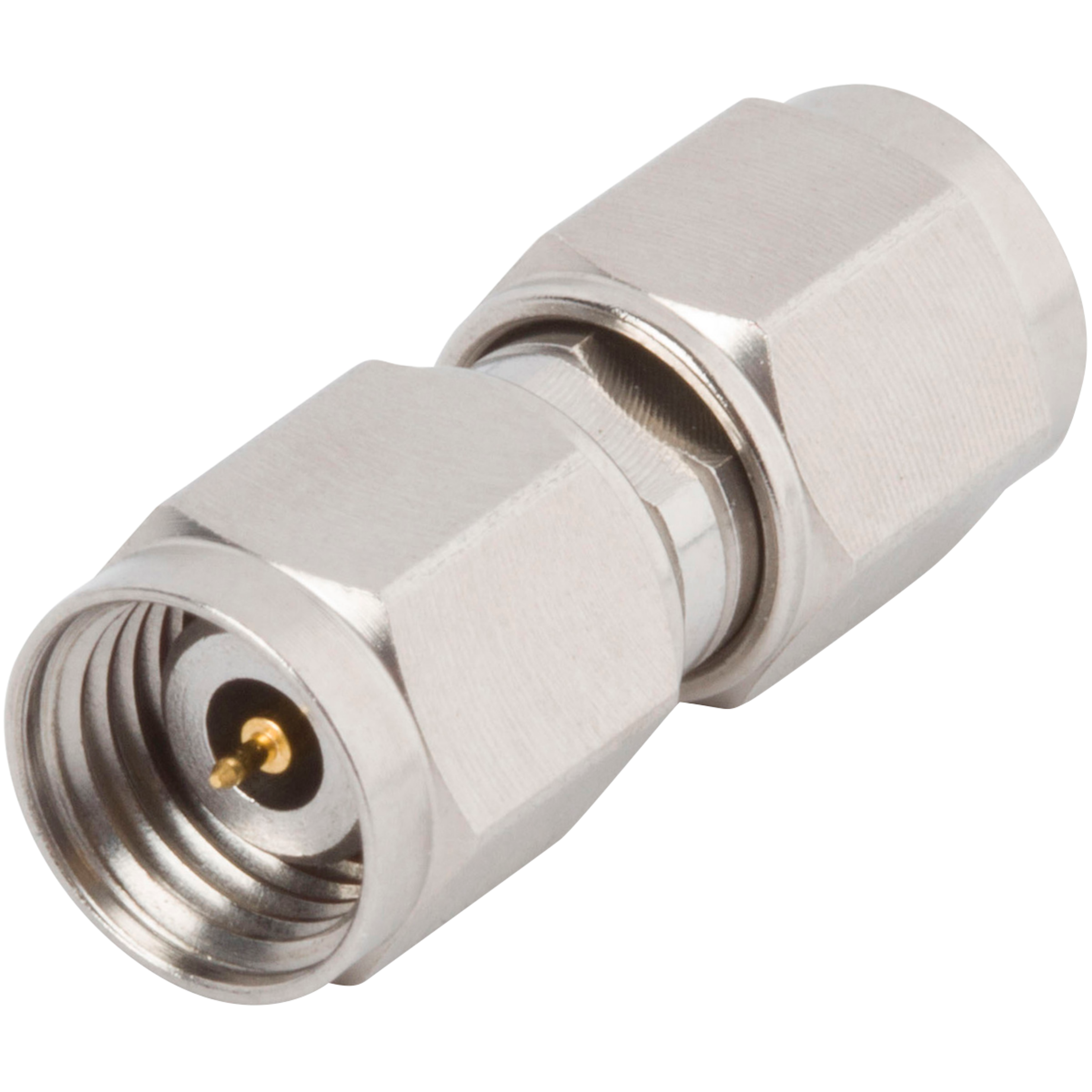

Part #   SF1593-6000

2.92mm Male to Male Adapter

Available Inventory: 538
SF1593-6000
2.92mm Adapters SF1593-6000
Datasheet

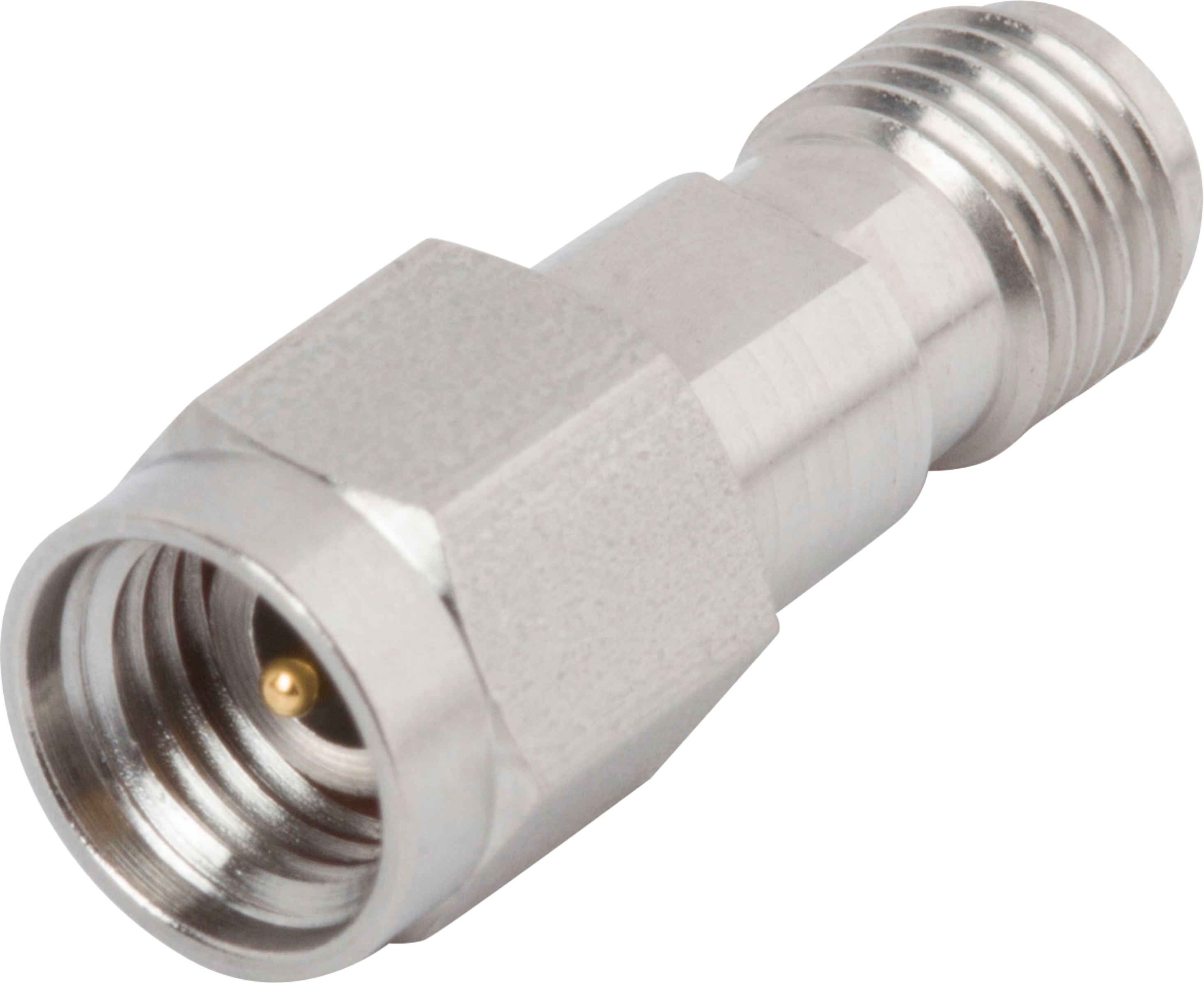

Part #   SF1597-6003
