2.92mm Female to Female Bulkhead Hermetic Adapter
P/N: SF1115-6072

In stock at Qty Order
Mouser Electronics 91 On Order
Digi-Key Electronics 43
Master Electronics 21
Arrow Electronics Inc 20
Interstate Connecting Components 5
Heilind Electronics 1
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Orientation (Body) Straight
Gender Jack (Female)
Mounting Type Panel
Body Style Jamnut/Bulkhead
Coupling Threaded
Style Hermetic
IP Rating IP 68
Finish Passivated
Gender 2 Jack (Female)
RF Series 2 2.92 mm
Orientation 2 (Body) Straight
Electrical
Impedance 50 ohms
Frequency 40 GHz
Dielectric withstanding Voltage 750 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Mating Cycles 500
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

CE / UKCA Not Yet Reviewed

Please contact our compliance team for more information.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 12/4/2022 1:02:41 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Orientation (Body) Straight
Gender Jack (Female)
Mounting Type Panel
Body Style Jamnut/Bulkhead
Coupling Threaded
Style Hermetic
IP Rating IP 68
Finish Passivated
Gender 2 Jack (Female)
RF Series 2 2.92 mm
Orientation 2 (Body) Straight
Electrical
Impedance 50 ohms
Frequency 40 GHz
Dielectric withstanding Voltage 750 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Mating Cycles 500
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   SF2991-6002

SMA Female to Female Bulkhead Hermetic Adapter

Available Inventory: 3359
SF2991-6002
SMA Adapters SF2991-6002
Datasheet
Part #   SF1132-6093

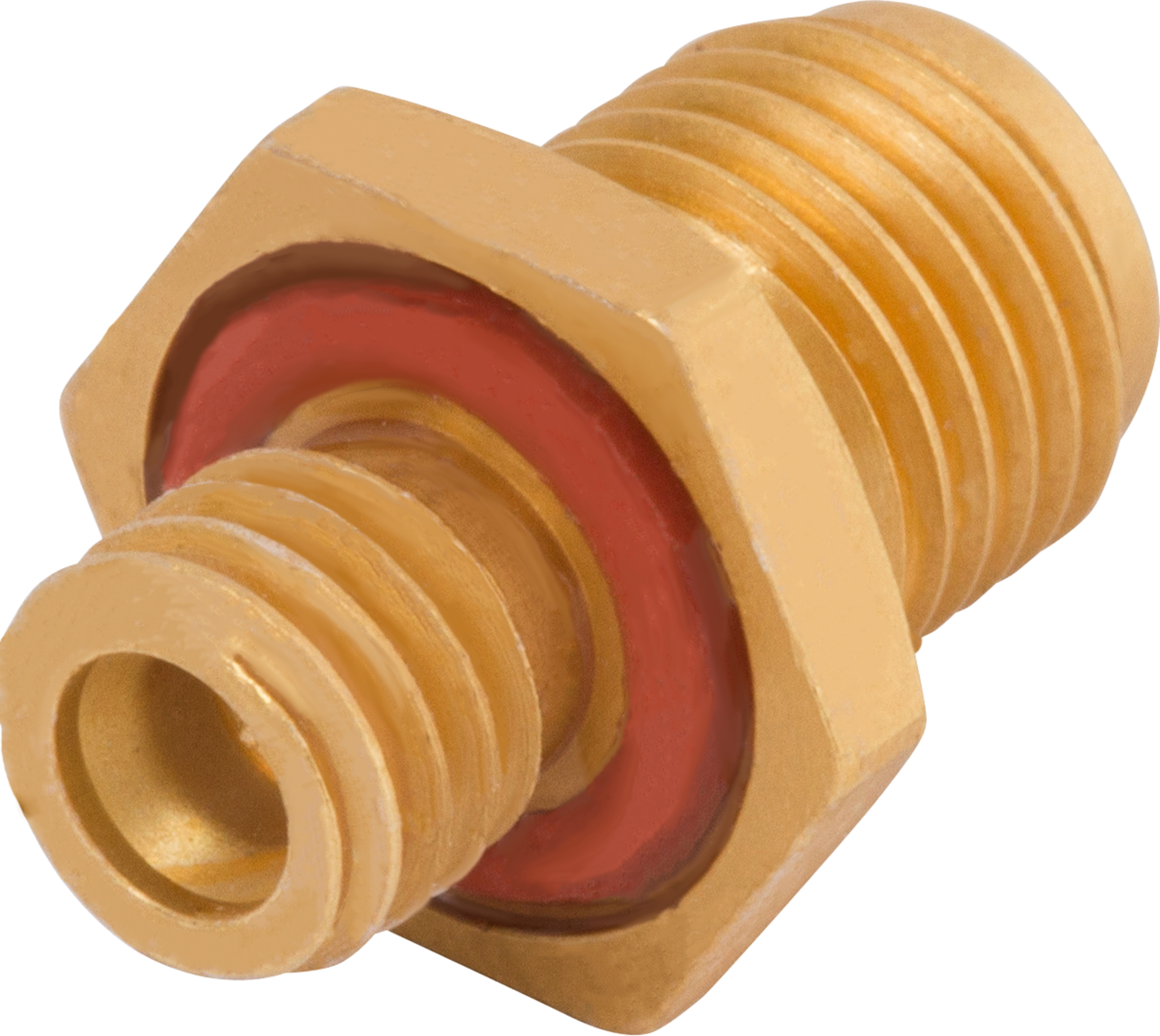

SMPM Male to SMA Female Bulkhead Sealed Adapter, FD

Available Inventory: 414
SF1132-6093
SMPM Adapters SF1132-6093
Datasheet
Part #   SF1132-6094

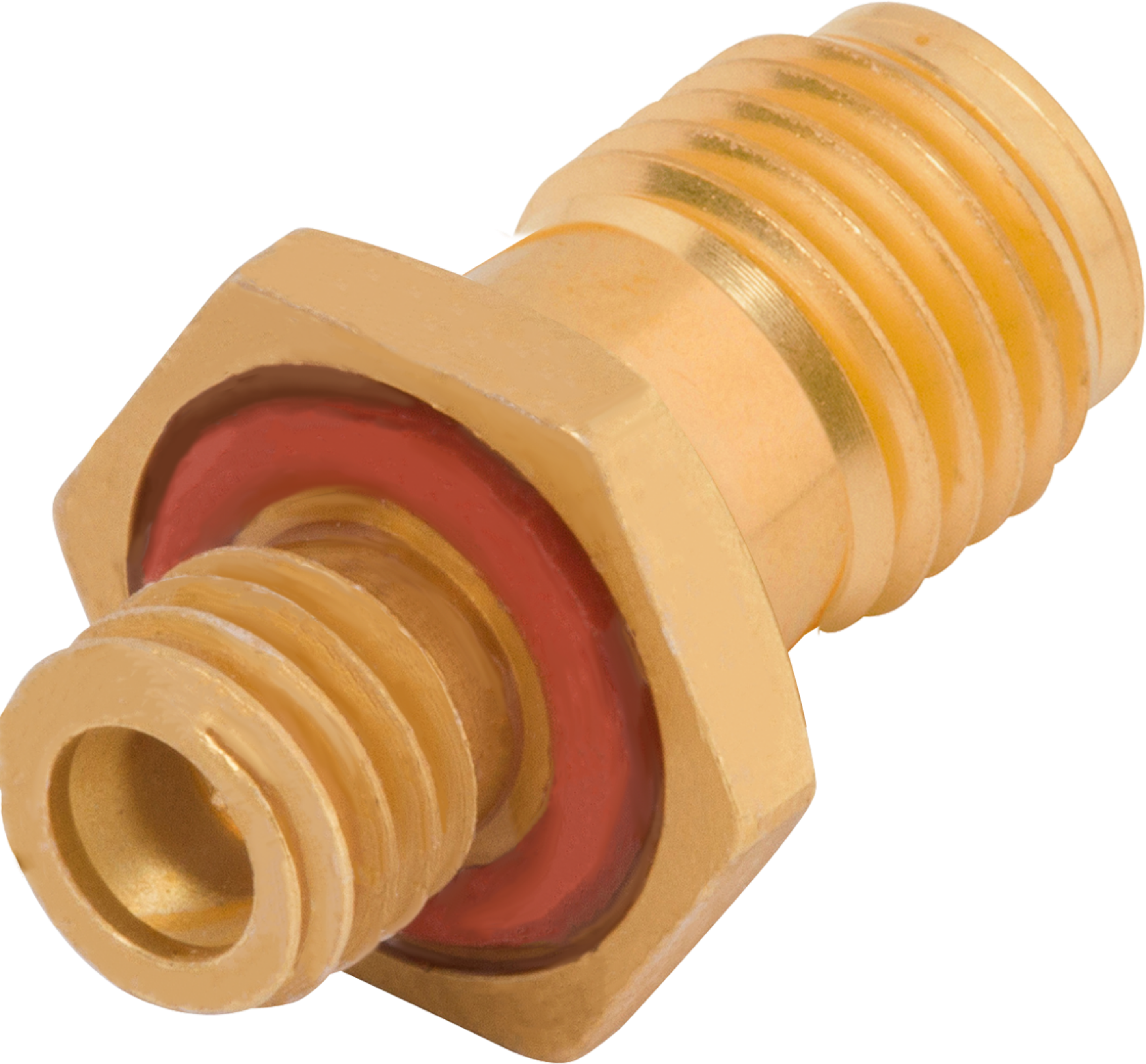

SMPM Male to 2.92mm Female Bulkhead Hermetic Adapter, FD
