P/N: 1115-6127

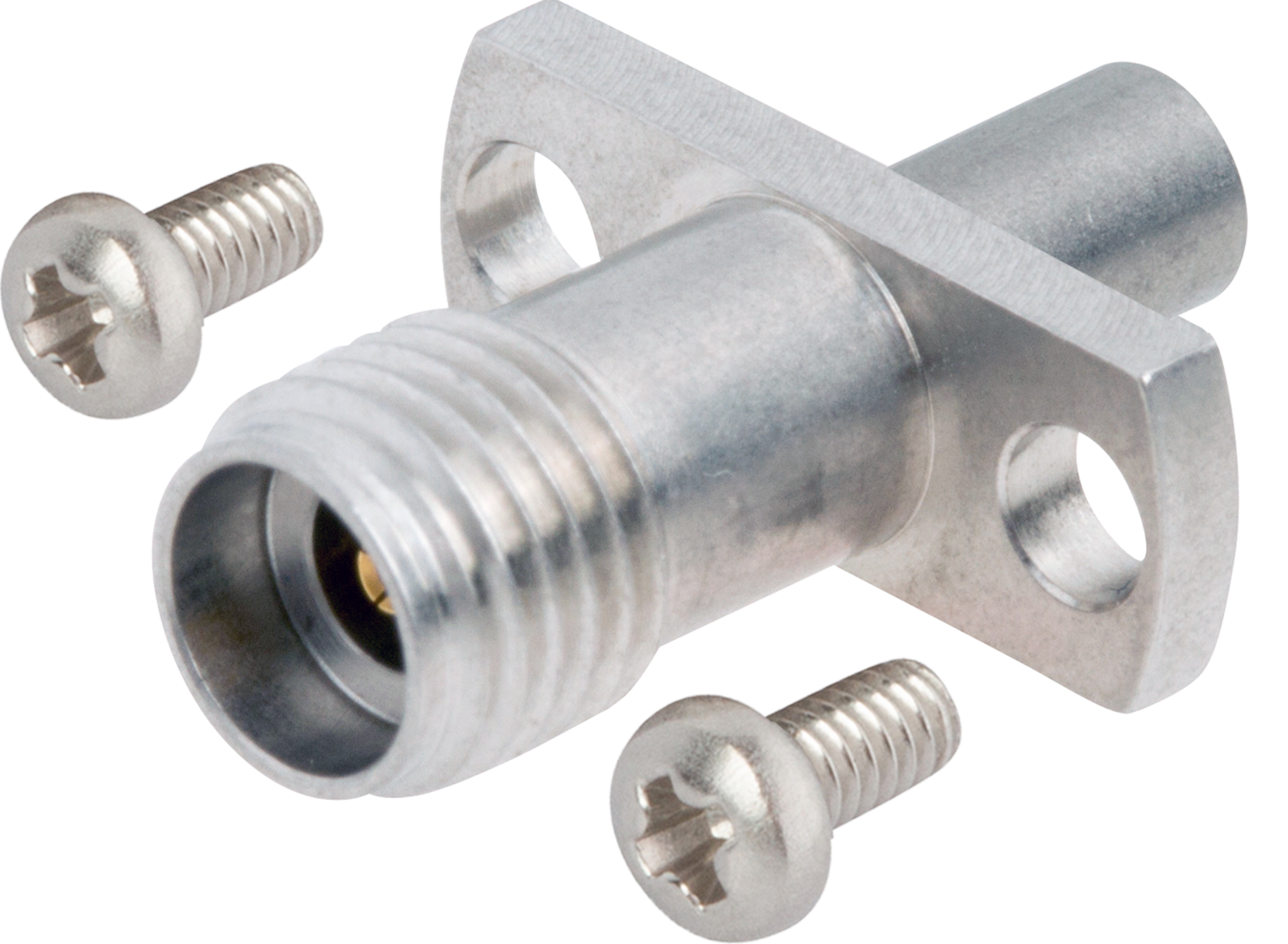

2.92mm Female to SMPM Male, SB, Flange Mount Adapter, 2 Hole, with Screws

In stock at Qty Order
Digi-Key Electronics 36
Newark 25
Farnell 25
Mouser Electronics 23
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Orientation (Body) Straight
Detent Smooth Bore
Coupling Threaded
Body Style 2 Hole
Mounting Type Panel
Finish Passivated
Frequency 40 GHz
Gender 2 Plug (Male)
Impedance 50 ohms
RF Series 2 SMPM
Orientation 2 (Body) Straight
Electrical
Frequency GHz 40 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
