P/N: 7015-1000

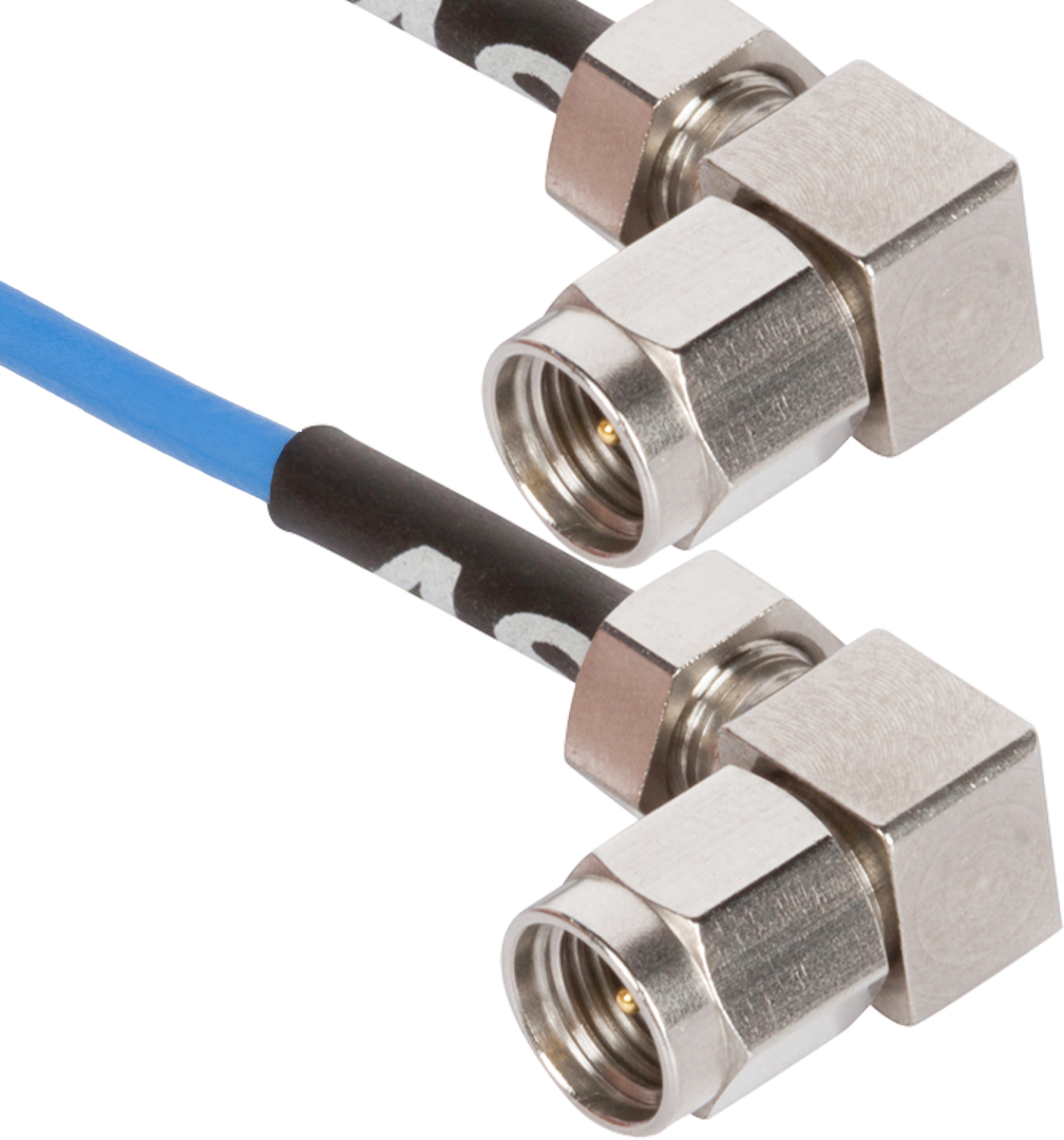

2.92mm Male R/A to 2.92mm Male R/A 6" Cable Assembly for .085 Cable

In stock at Qty Order
Mouser Electronics 7
Digi-Key Electronics 7
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Plug (Male)
Coupling Threaded
Frequency 40 GHz
Orientation (Body) Right Angle
Impedance 50 ohms
Gender 2 Plug (Male)
Orientation 2 (Body) Right Angle
Cable Type 0.085 Flexible Coax
RF Series 2 2.92 mm
Cable Length 6"
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Plug (Male)
Coupling Threaded
Frequency 40 GHz
Orientation (Body) Right Angle
Impedance 50 ohms
Gender 2 Plug (Male)
Orientation 2 (Body) Right Angle
Cable Type 0.085 Flexible Coax
RF Series 2 2.92 mm
Cable Length 6"
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7015-0990

2.92mm Male R/A to 2.92mm Male R/A 6" Cable Assembly for .047 Cable

Available Inventory: 16
7015-0990
2.92mm Cable Assemblies 7015-0990
Datasheet
Part #   7015-0991

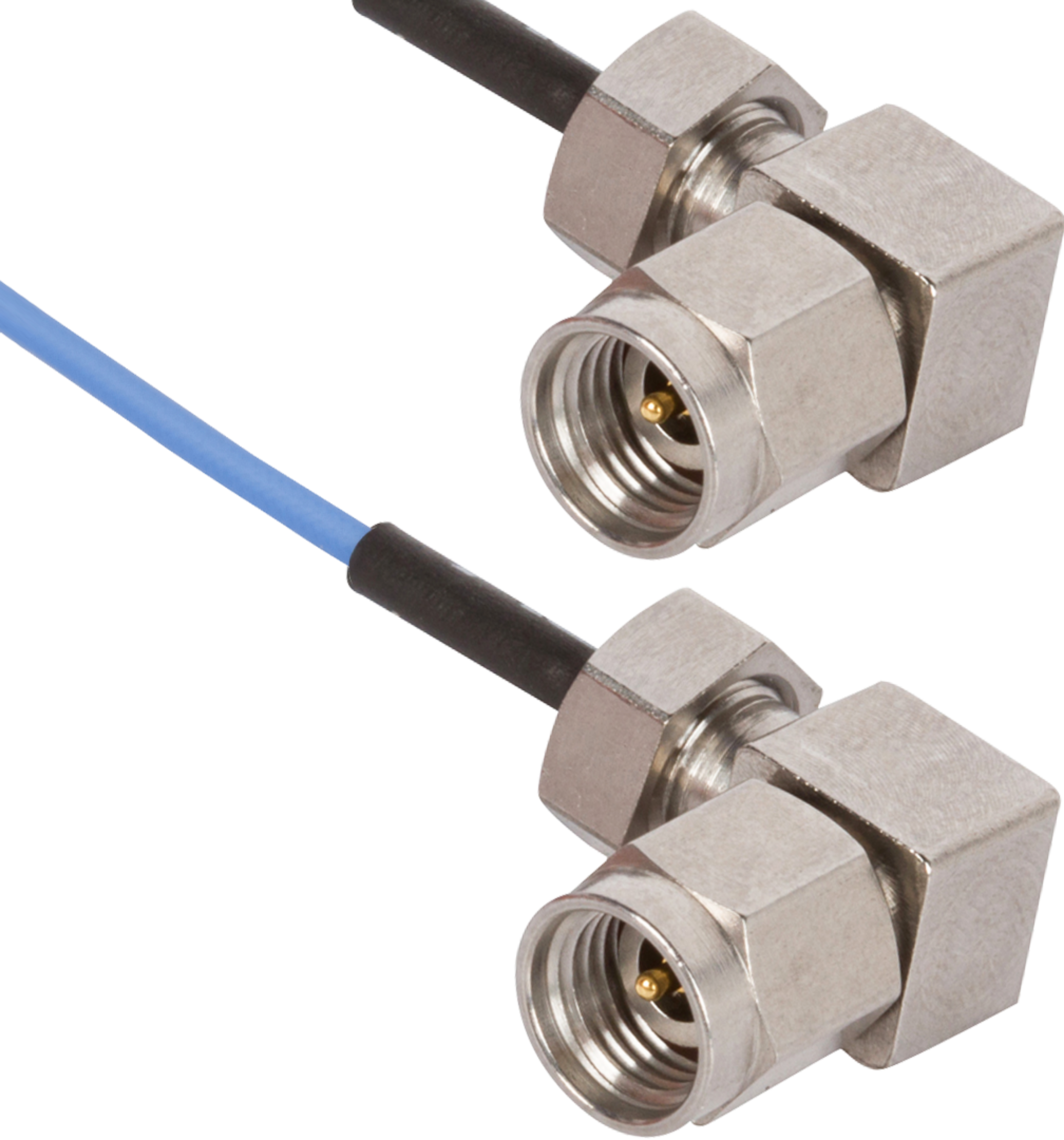

2.92mm Male R/A to 2.92mm Male R/A 12" Cable Assembly for .047 Cable
