P/N: 7015-1096

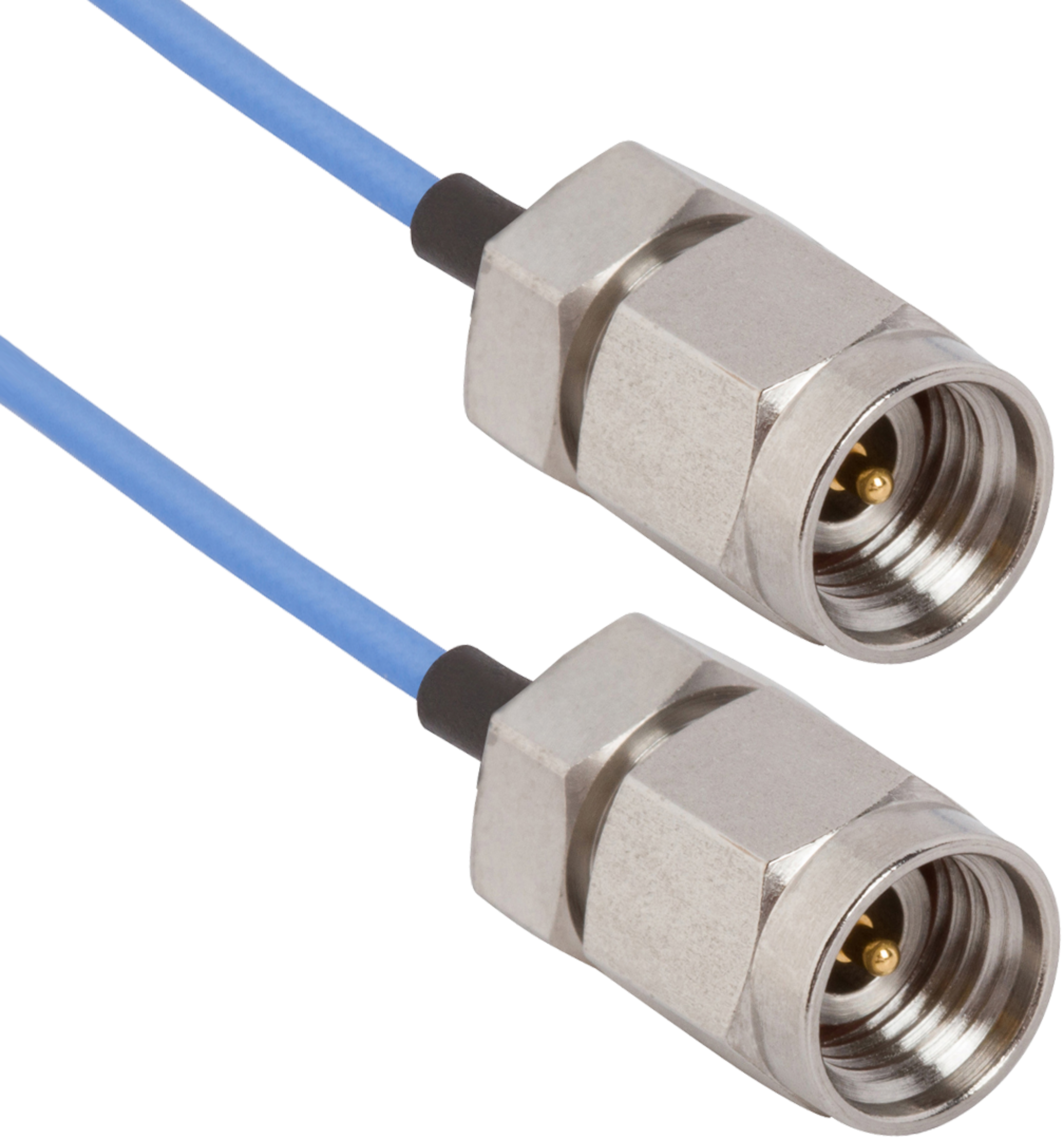

2.92mm Male to 2.92mm Male 3" Cable Assembly for .047 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
Gender Plug (Male)
RF Series 2.92 mm
Orientation (Body) Straight
Coupling Threaded
Frequency 40 GHz
Impedance 50 ohms
RF Series 2 2.92 mm
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Cable Length 3"
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Dielectric withstanding Voltage 750 VRMS
Mechanical
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Environmental
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Vibration MIL-STD-202, Method 204, Condition D
