P/N: SF1115-6086

2.92mm Male to SMPM Male Adapter, FD

In stock at Qty Order
Digi-Key Electronics 48
Mouser Electronics 37
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Detent Full Detent
Impedance 50 ohms
Finish Passivated
Frequency 40 GHz
Gender 2 Plug (Male)
RF Series 2 SMPM
Orientation 2 (Body) Straight
Electrical
Frequency GHz 40 GHz
Impedance (Ω) 50
Mating Cycles 500
Dielectric withstanding Voltage 750 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Detent Full Detent
Impedance 50 ohms
Finish Passivated
Frequency 40 GHz
Gender 2 Plug (Male)
RF Series 2 SMPM
Orientation 2 (Body) Straight
Electrical
Frequency GHz 40 GHz
Impedance (Ω) 50
Mating Cycles 500
Dielectric withstanding Voltage 750 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1133-6007

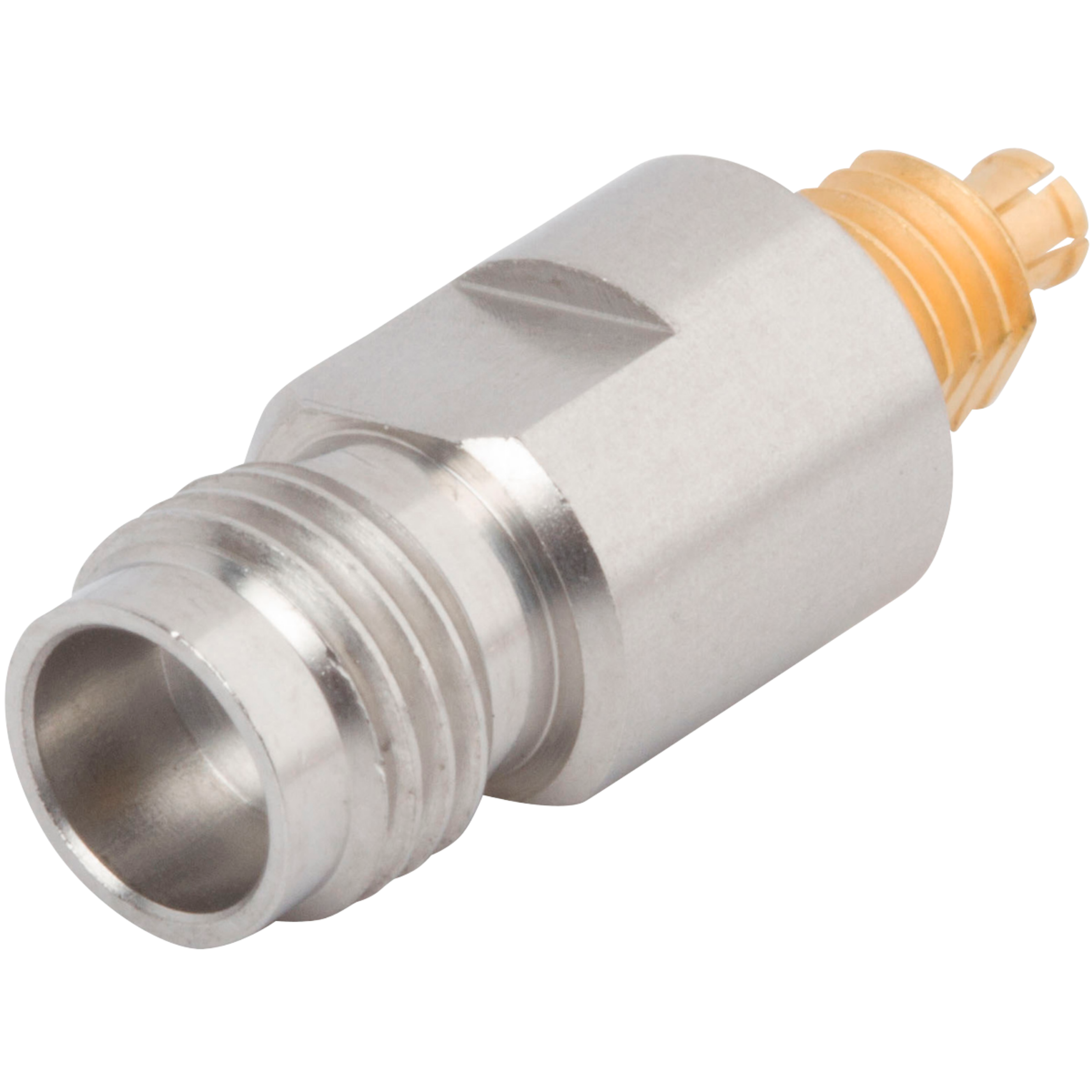

1.85mm Female to SMPM Thread-In Female Adapter

Available Inventory: 55
SF1133-6007
1.85mm Adapters SF1133-6007
Datasheet
Part #   SF1115-6084

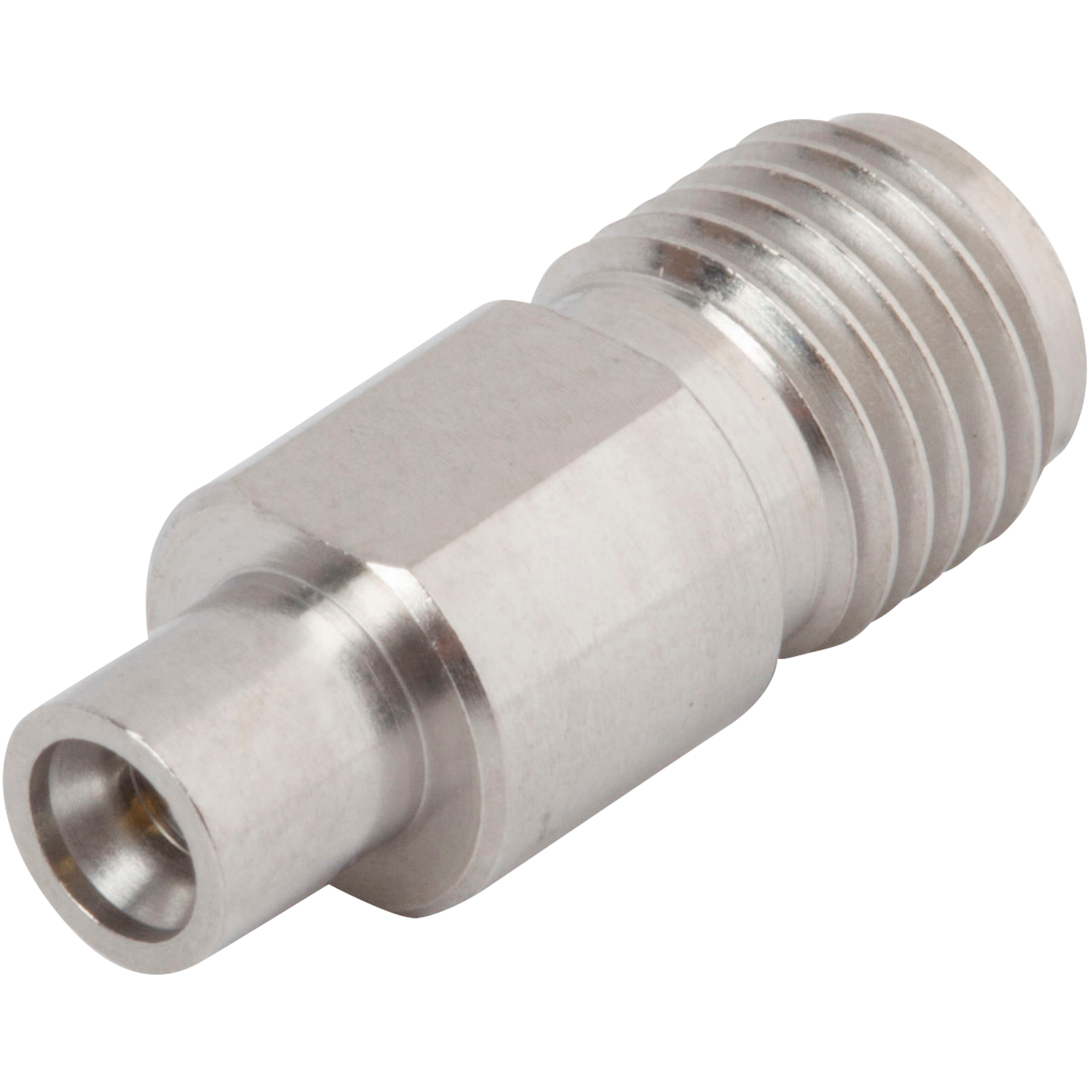

2.92mm Female to SMPM Male Adapter, FD

Available Inventory: 86
SF1115-6084
2.92mm Adapters SF1115-6084
Datasheet
Part #   SF1115-6085

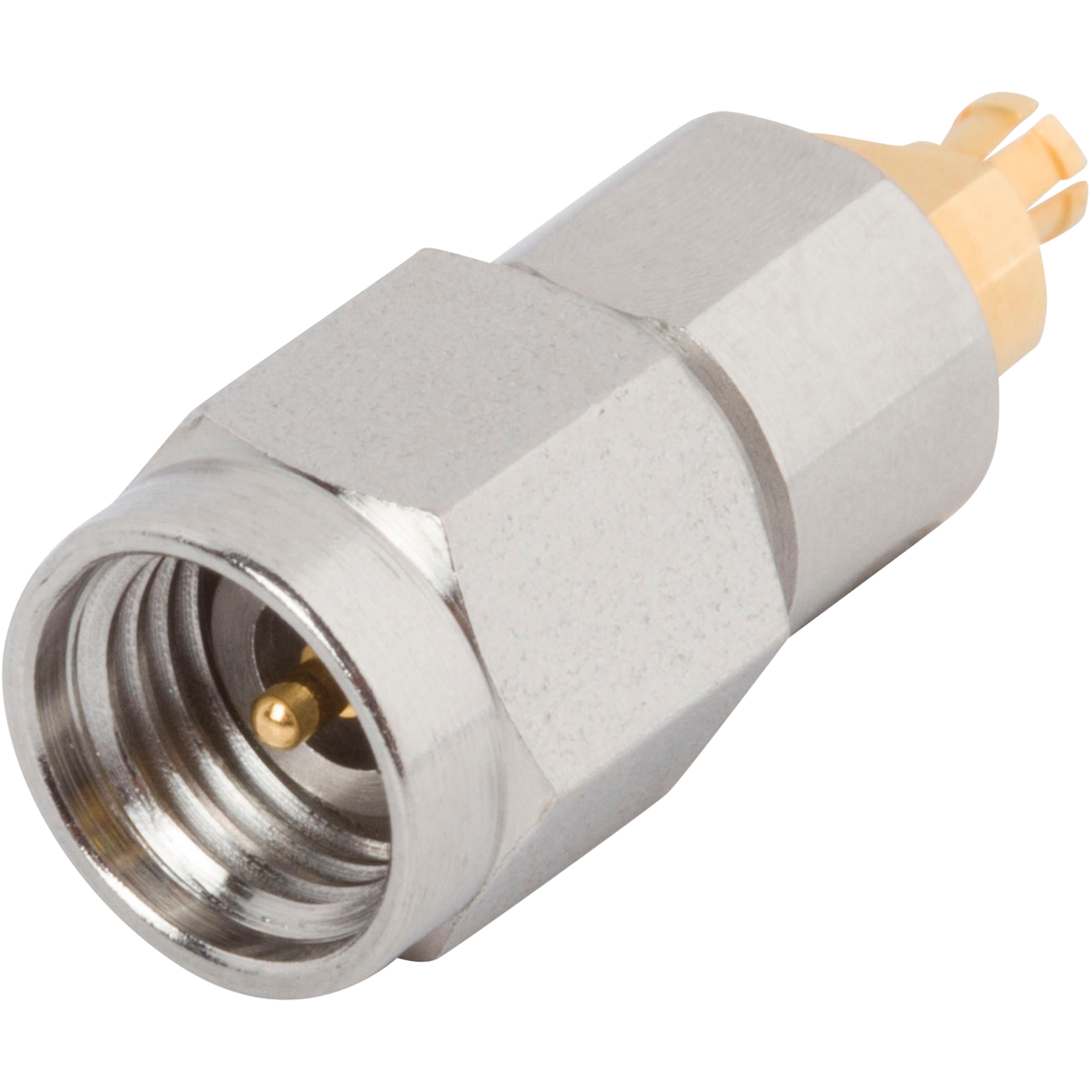

2.92mm Male to SMPM Female Adapter
