P/N: 8017-6002

BMA Female Termination

In stock at Qty Order
CW Swift & Associates 1
Products specifications
Attribute name Attribute value
RF Series BMA
Orientation (Body) Straight
Gender Jack (Female)
Coupling Push-on
Number of Ports Single
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Insertion Force 3.0 lbs
Mating Cycles 5000
Withdrawal Force 1.5 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BMA
Orientation (Body) Straight
Gender Jack (Female)
Coupling Push-on
Number of Ports Single
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Insertion Force 3.0 lbs
Mating Cycles 5000
Withdrawal Force 1.5 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

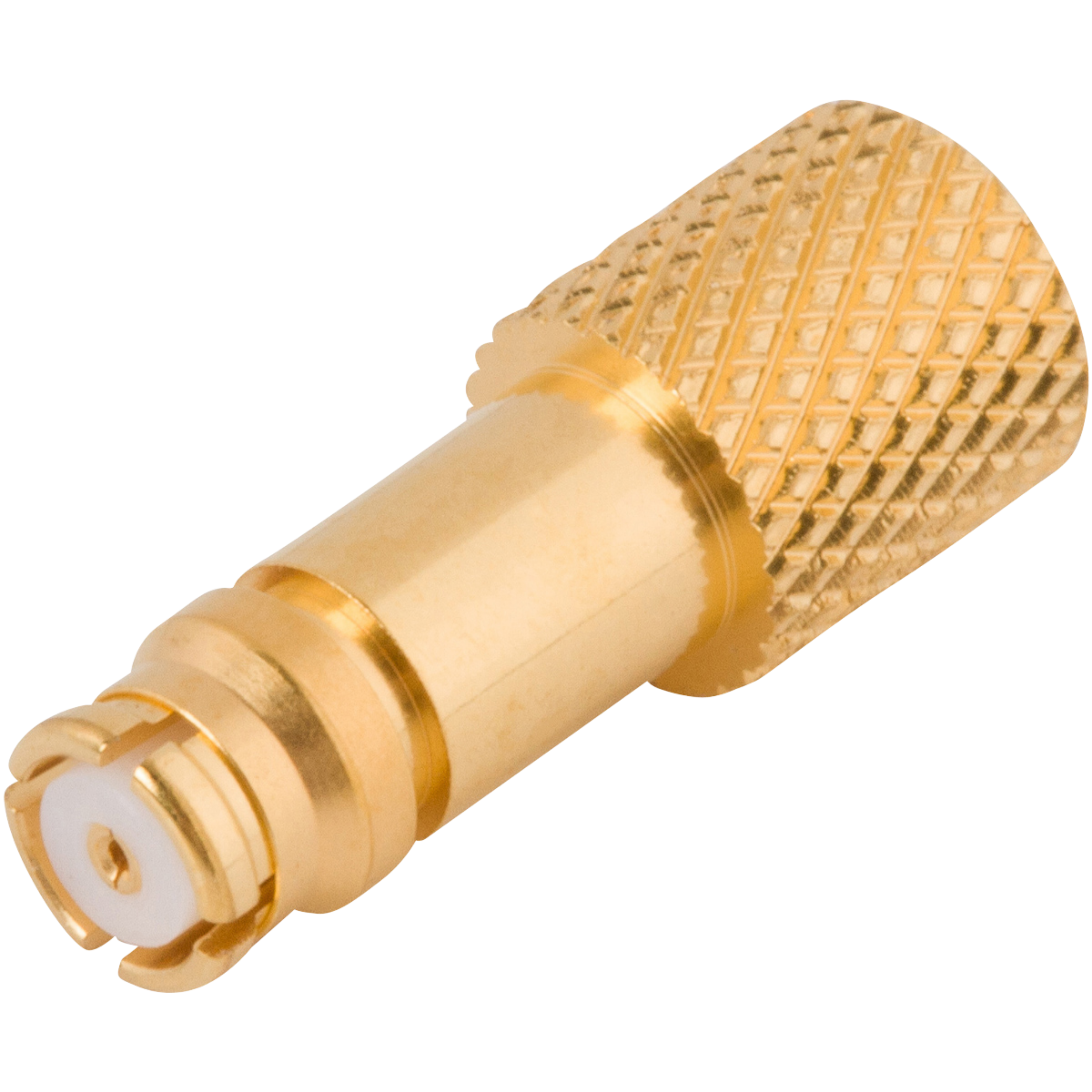

Part #   8012-4006

SMP Female Termination (1/2 Watt)

Available Inventory: 5
8012-4006
SMP Components 8012-4006
Datasheet

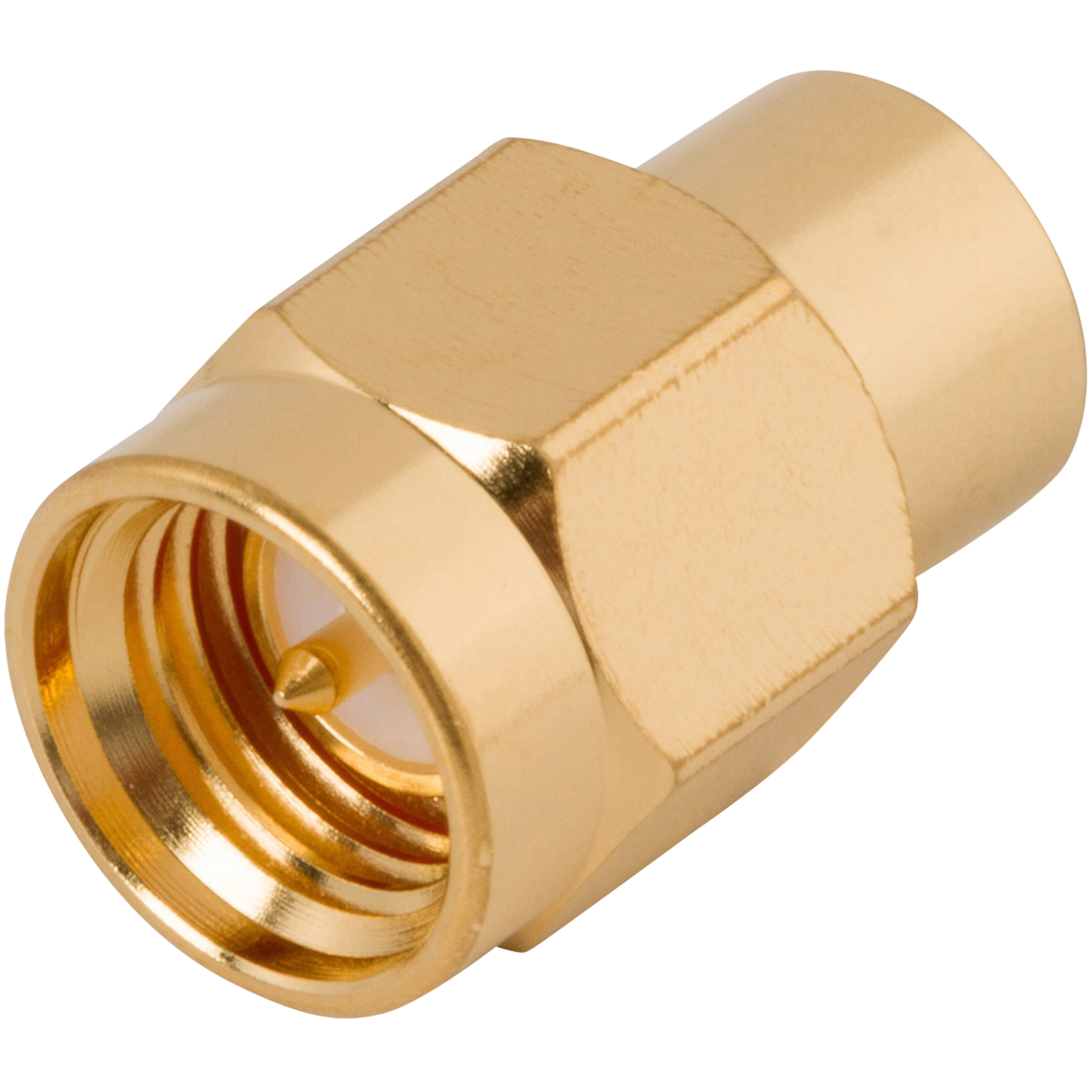

Part #   8018-6005

SMA Male Termination

Available Inventory: 6675
8018-6005
SMA Components 8018-6005
Datasheet

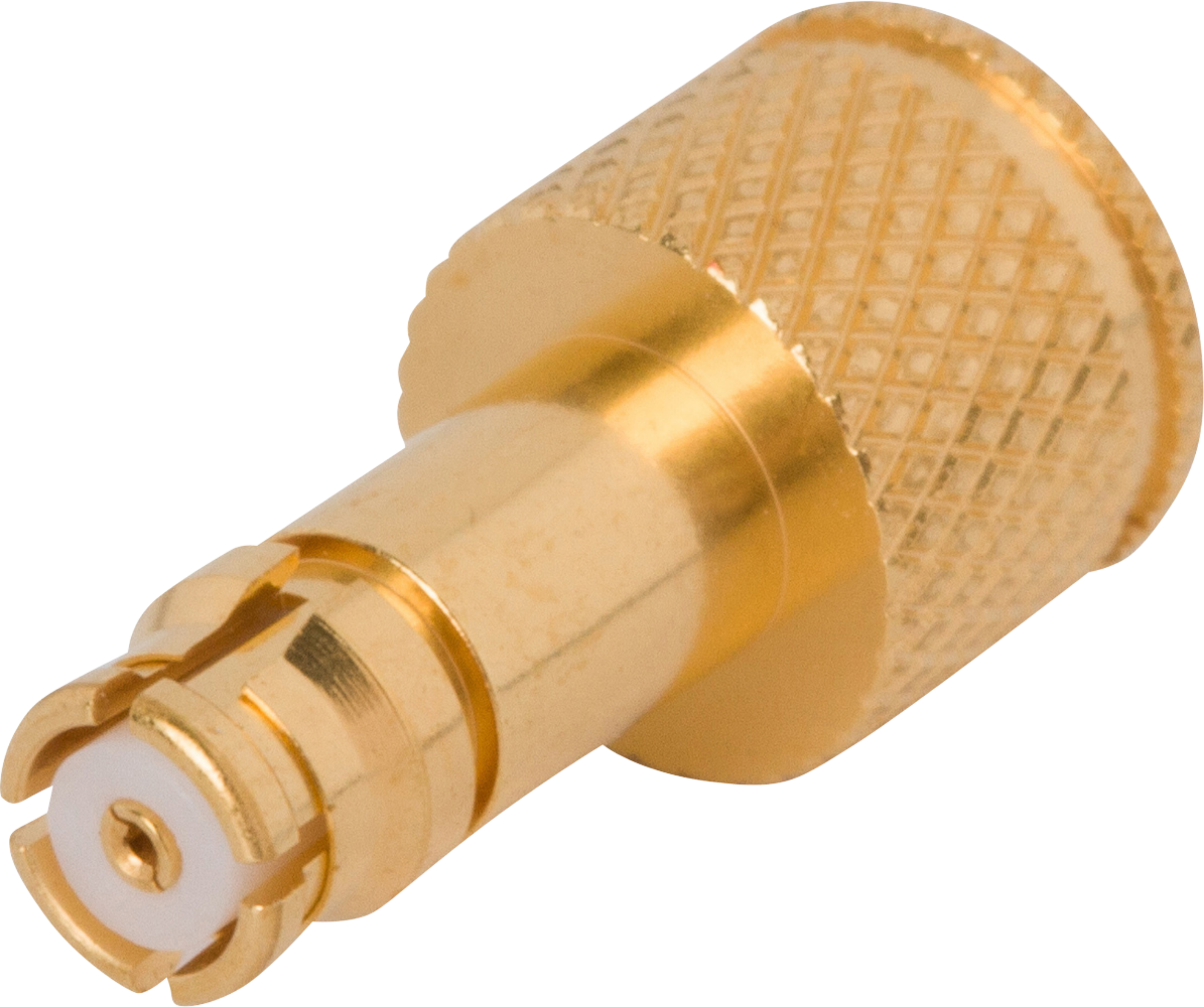

Part #   8012-4013
