P/N: 1709-6002

BMA Male Bulkhead Connector for .141 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series BMA
Gender Plug (Male)
Mounting Type Panel
Orientation (Body) Straight
Body Style Jamnut/Bulkhead
Coupling Push-on
Termination Style Solder
Number of Ports Single
Frequency 18 GHz
Impedance 50 ohms
Cable Type 0.140 Flexible Coax
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 5000
Mechanical
Insertion Force 3.0 lbs
Withdrawal Force 1.5 lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BMA
Gender Plug (Male)
Mounting Type Panel
Orientation (Body) Straight
Body Style Jamnut/Bulkhead
Coupling Push-on
Termination Style Solder
Number of Ports Single
Frequency 18 GHz
Impedance 50 ohms
Cable Type 0.140 Flexible Coax
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 5000
Mechanical
Insertion Force 3.0 lbs
Withdrawal Force 1.5 lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   1708-0001

BMA Male Bulkhead Connector for .085 Cable

Available Inventory: 0
1708-0001
BMA Connectors 1708-0001
Datasheet

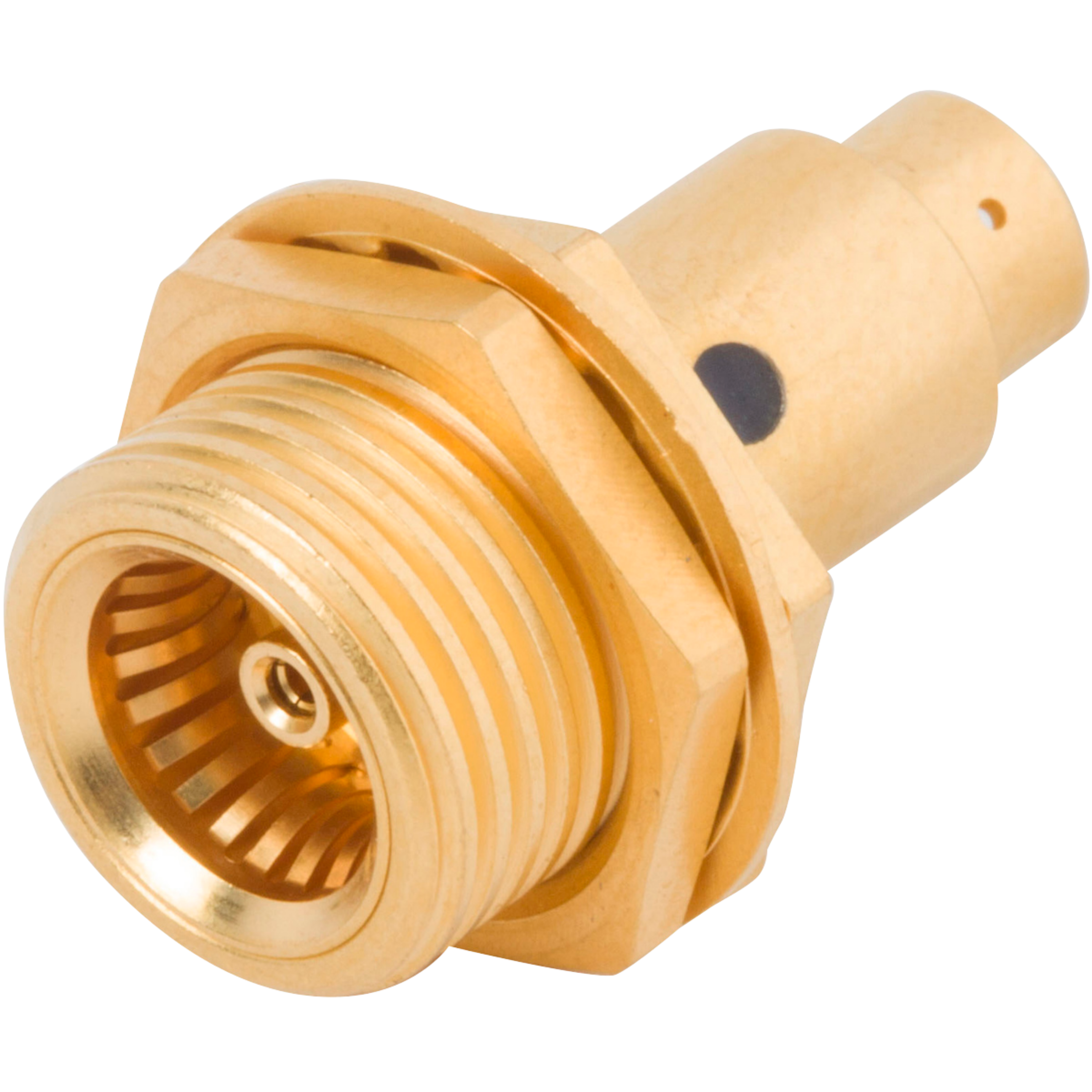

Part #   1732-6012

BMA Female Bulkhead Connector for .141 Cable

Available Inventory: 0
1732-6012
BMA Connectors 1732-6012
Datasheet

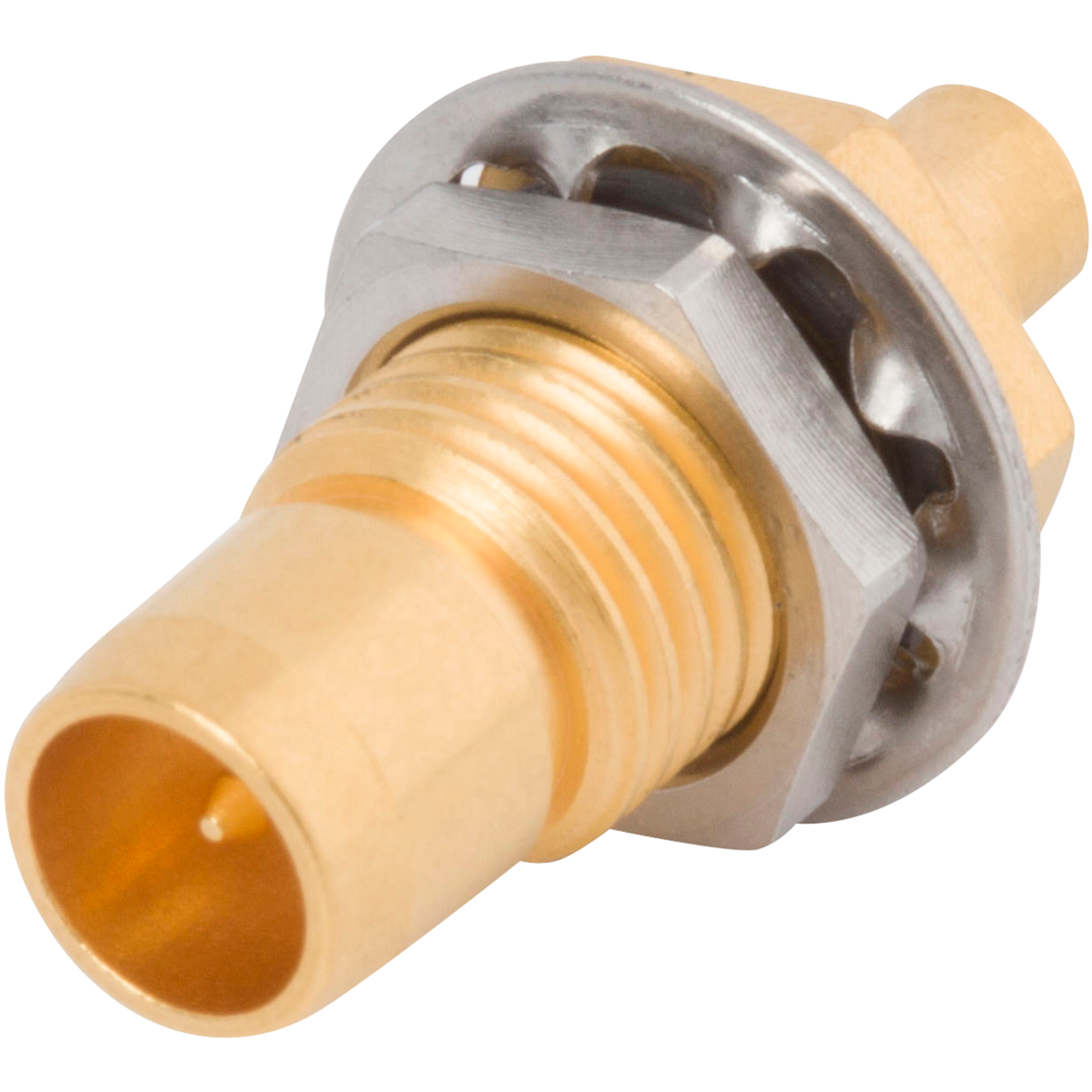

Part #   1708-6003
