P/N: SF1755-6104

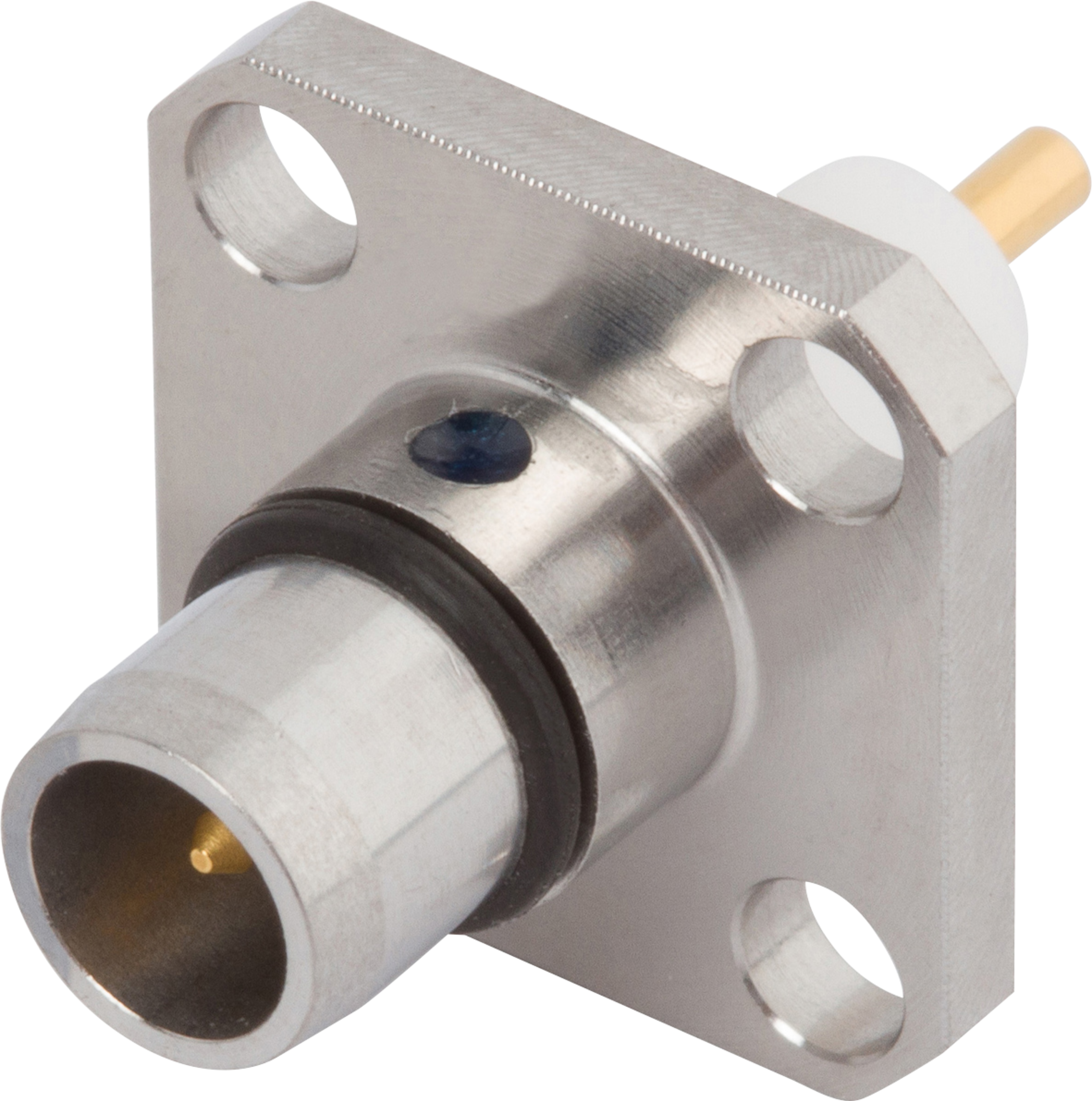

BMA Male Flange Mount Connector, 4 Hole (Candlestick)

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series BMA
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Body Style 4 Hole
Mounting Type Panel
Number of Ports Single
Style Candlestick
Frequency 18 GHz
Impedance 50 ohms
Finish Passivated
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mating Cycles 5000
Mechanical
Insertion Force 3.0 lbs
Withdrawal Force 1.5 lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BMA
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Body Style 4 Hole
Mounting Type Panel
Number of Ports Single
Style Candlestick
Frequency 18 GHz
Impedance 50 ohms
Finish Passivated
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mating Cycles 5000
Mechanical
Insertion Force 3.0 lbs
Withdrawal Force 1.5 lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1750-6101

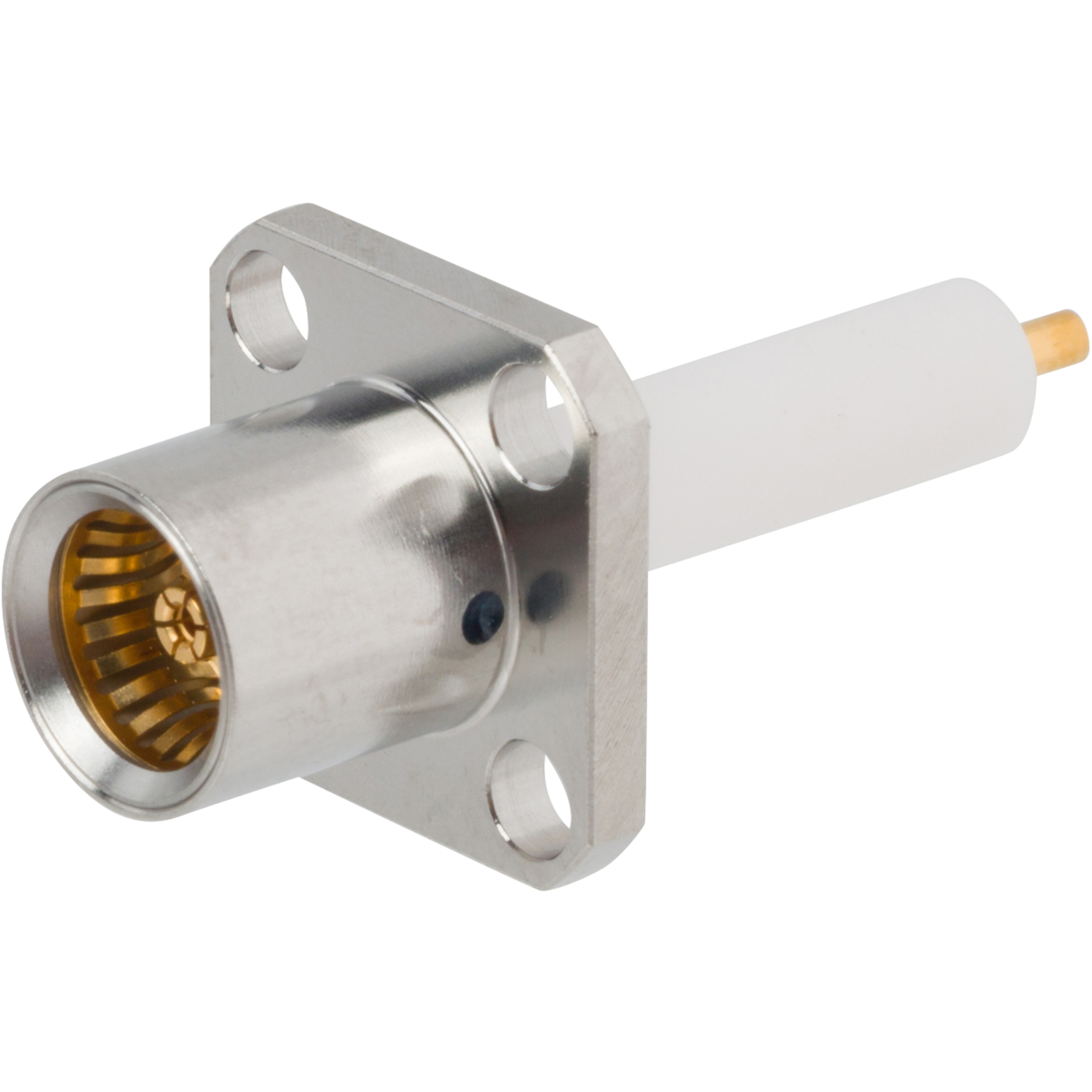

BMA Female Flange Mount Connector, 4 Hole (Candlestick)

Available Inventory: 27
SF1750-6101
BMA Connectors SF1750-6101
Datasheet
Part #   SF1755-6105

BMA Male Flange Mount Connector, 4 Hole (Candlestick)

Available Inventory: 0
SF1755-6105
BMA Connectors SF1755-6105
Datasheet
Part #   SF1711-60013

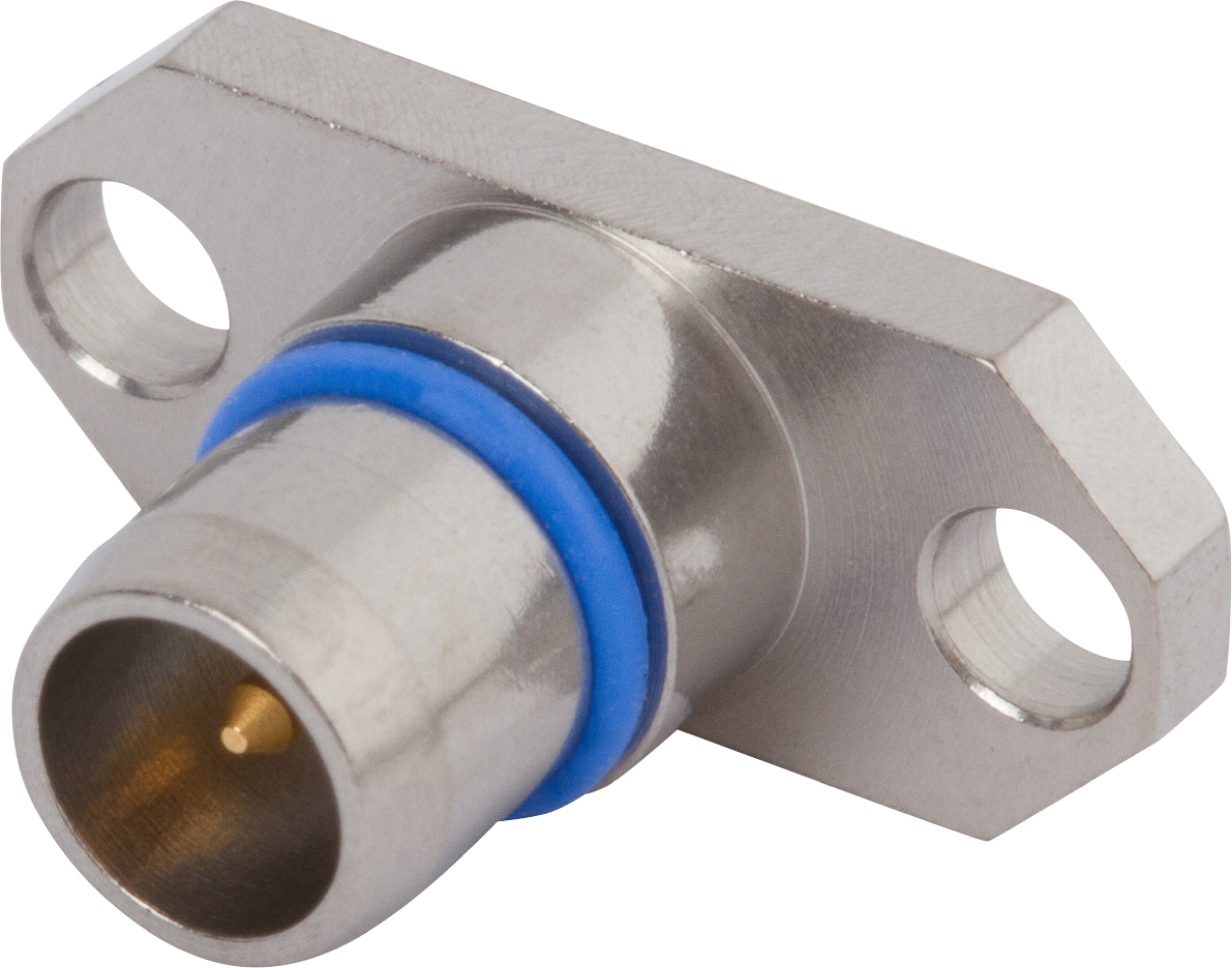

BMA Male Flange Mount Connector, 2 Hole (Accepts .018 Pin)
