BMA Socket D38999 Contact (Size 8) for .085 Cable
P/N: SF9411-6000

In stock at Qty Order
FDH Electronics 50
Digi-Key Electronics 49
Interstate Connecting Components 37
Master Electronics 25
Newark 25
Onlinecomponents.com 25
Mouser Electronics 150 On Order
Heilind Electronics 12
Products specifications
Attribute name Attribute value
RF Series BMA
Orientation (Body) Straight
Coupling Push-on
Mounting Type D38999
Style Size 8
Finish Passivated
Cable Type 0.085 Flexible Coax
Gender Socket
Electrical
Frequency 26.5 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Insertion Force 3.0 lbs
Mating Cycles 5000
Withdrawal Force 1.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 30000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:21:20 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BMA
Orientation (Body) Straight
Coupling Push-on
Mounting Type D38999
Style Size 8
Finish Passivated
Cable Type 0.085 Flexible Coax
Gender Socket
Electrical
Frequency 26.5 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Insertion Force 3.0 lbs
Mating Cycles 5000
Withdrawal Force 1.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF9411-6001

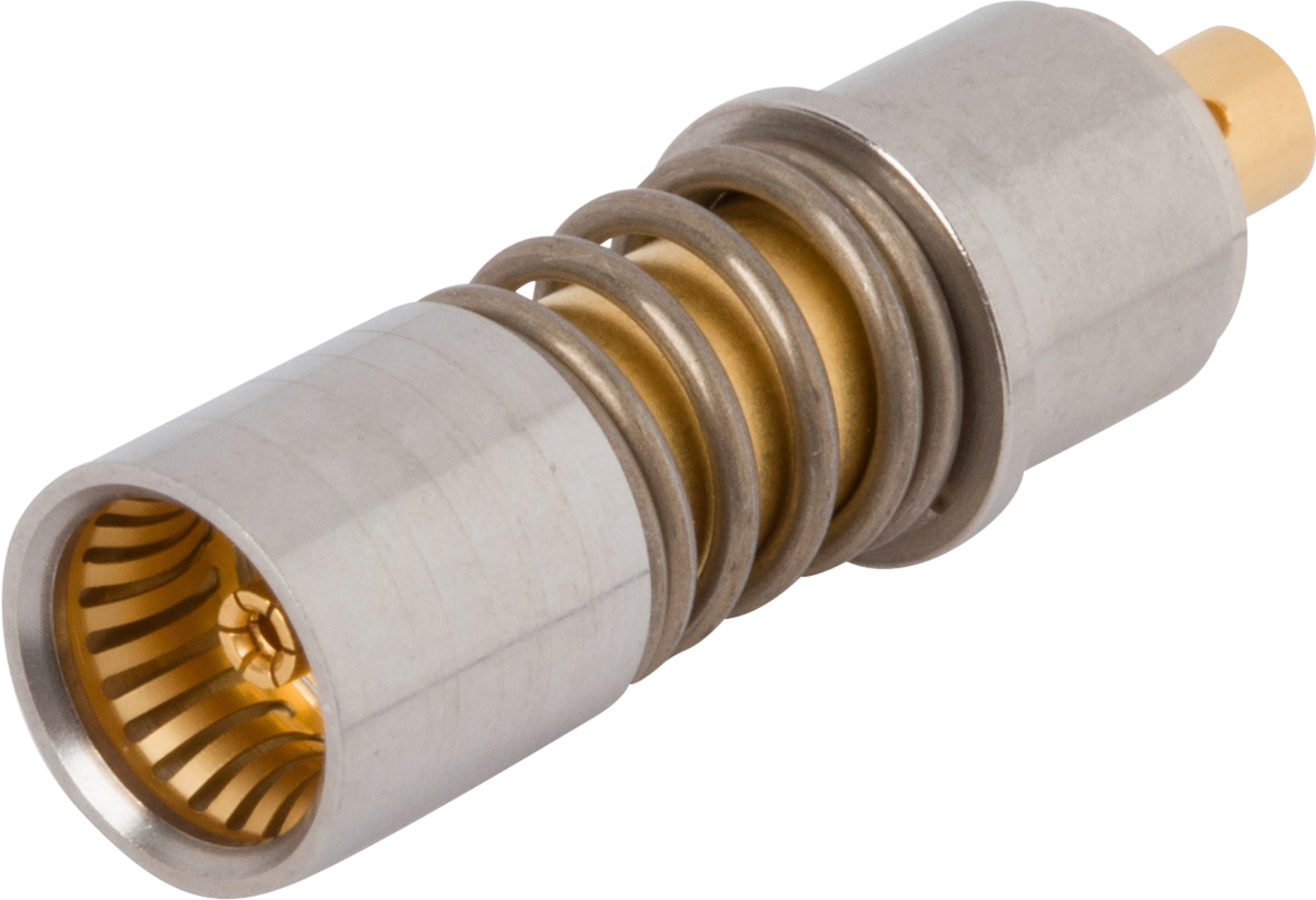

BMA Socket D38999 Contact (Size 8) for .141 Cable

Available Inventory: 108
SF9411-6001
BMA Connectors SF9411-6001
Datasheet
Part #   SF9421-6000

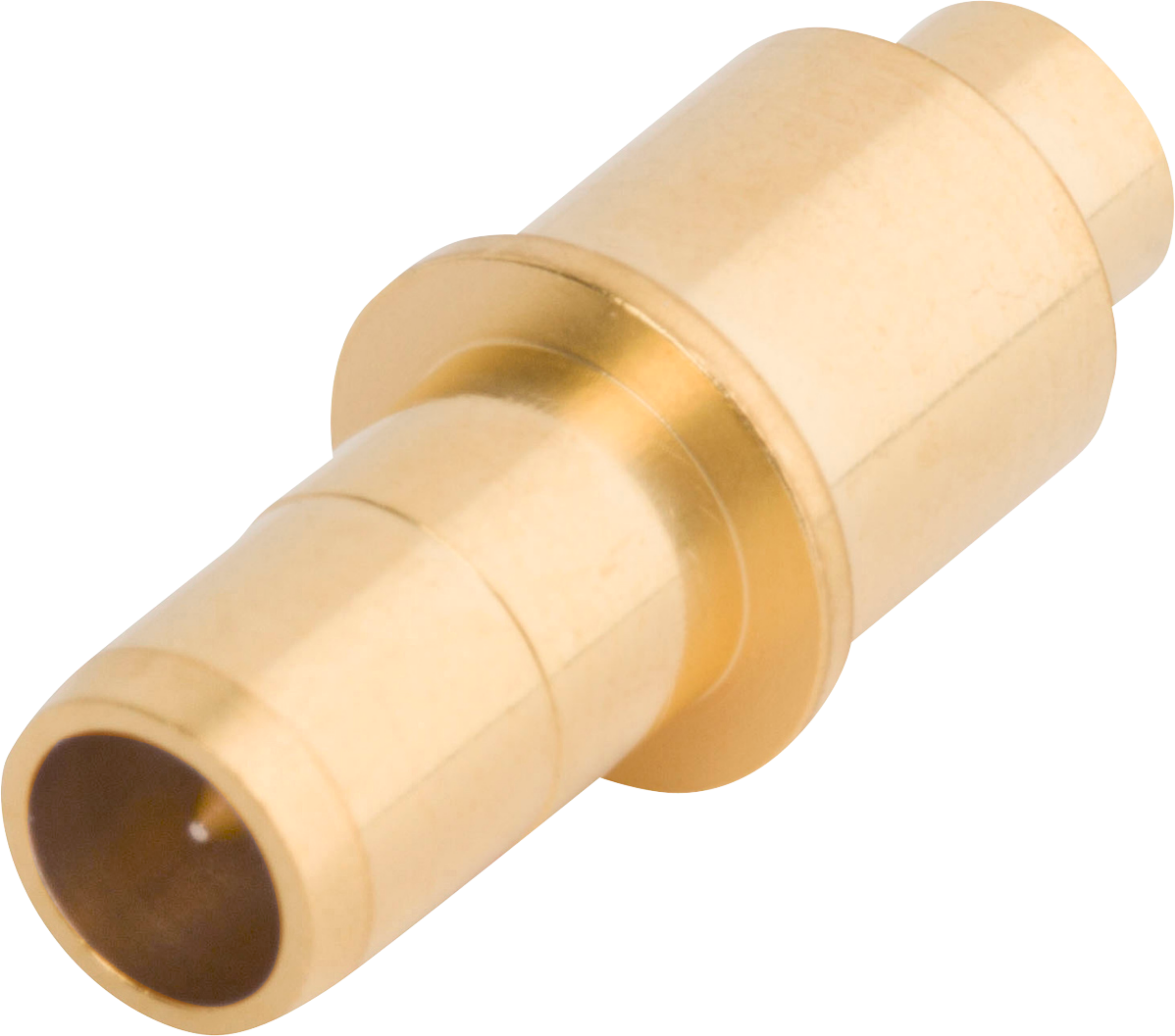

BMA Pin D38999 Contact (Size 8) for .085 Cable
