P/N: 1421-60014

BMMA Female PCB Edge Launch Connector, .068" PCB Thickness"

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series BMMA
Orientation (Body) Straight
Gender Jack (Female)
Coupling Push-on
Mounting Type PCB Edge Launch
Frequency 18 GHz
Termination Style Solder
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 28 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 675 VRMS
Mating Cycles 5000
Mechanical
Insertion Force 3.0 lbs
Withdrawal Force 1.5 lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BMMA
Orientation (Body) Straight
Gender Jack (Female)
Coupling Push-on
Mounting Type PCB Edge Launch
Frequency 18 GHz
Termination Style Solder
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 28 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 675 VRMS
Mating Cycles 5000
Mechanical
Insertion Force 3.0 lbs
Withdrawal Force 1.5 lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   1485-6000

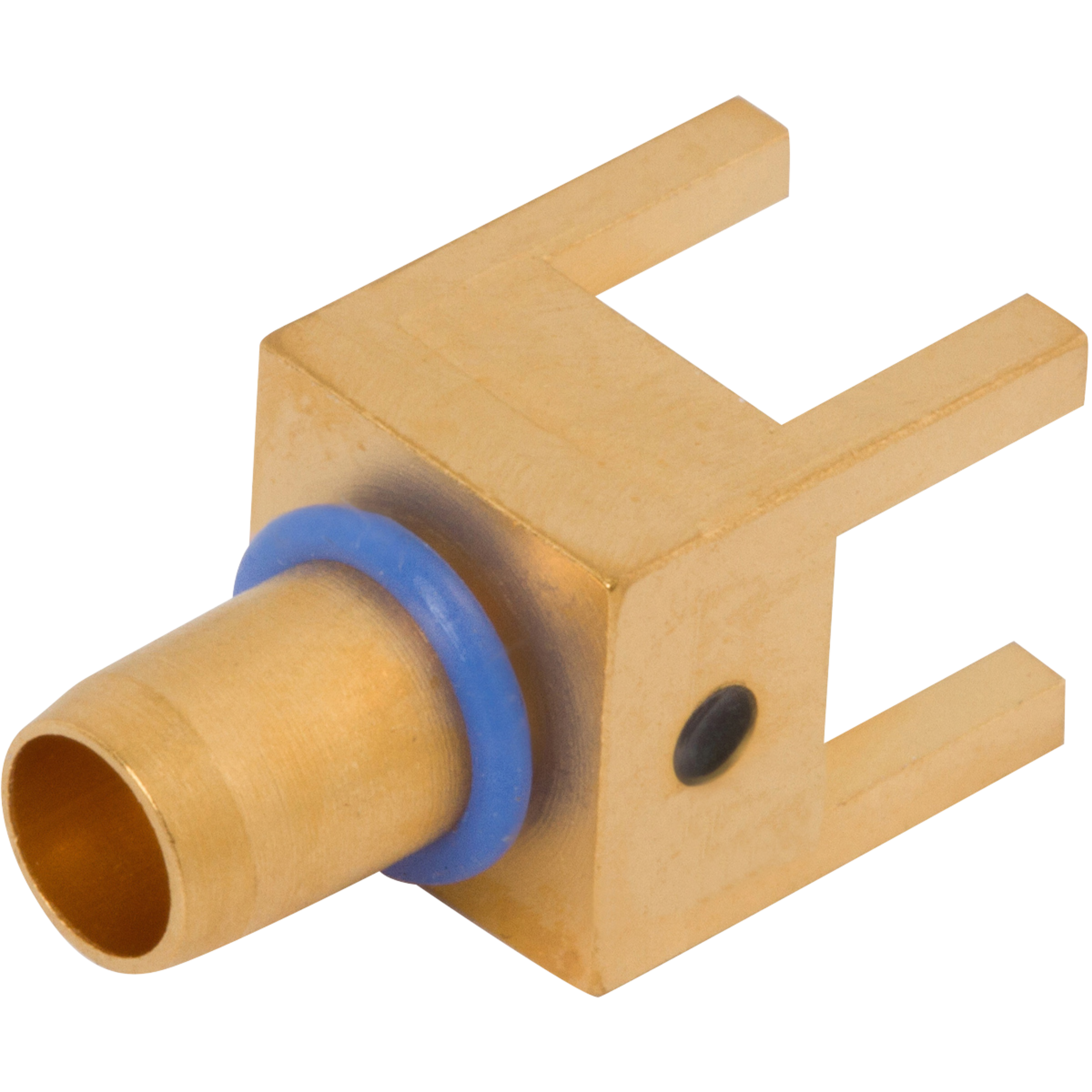

BMMA Male PCB Thru-Hole Connector

Available Inventory: 50
1485-6000
BMMA Connectors 1485-6000
Datasheet
Part #   1411-60007

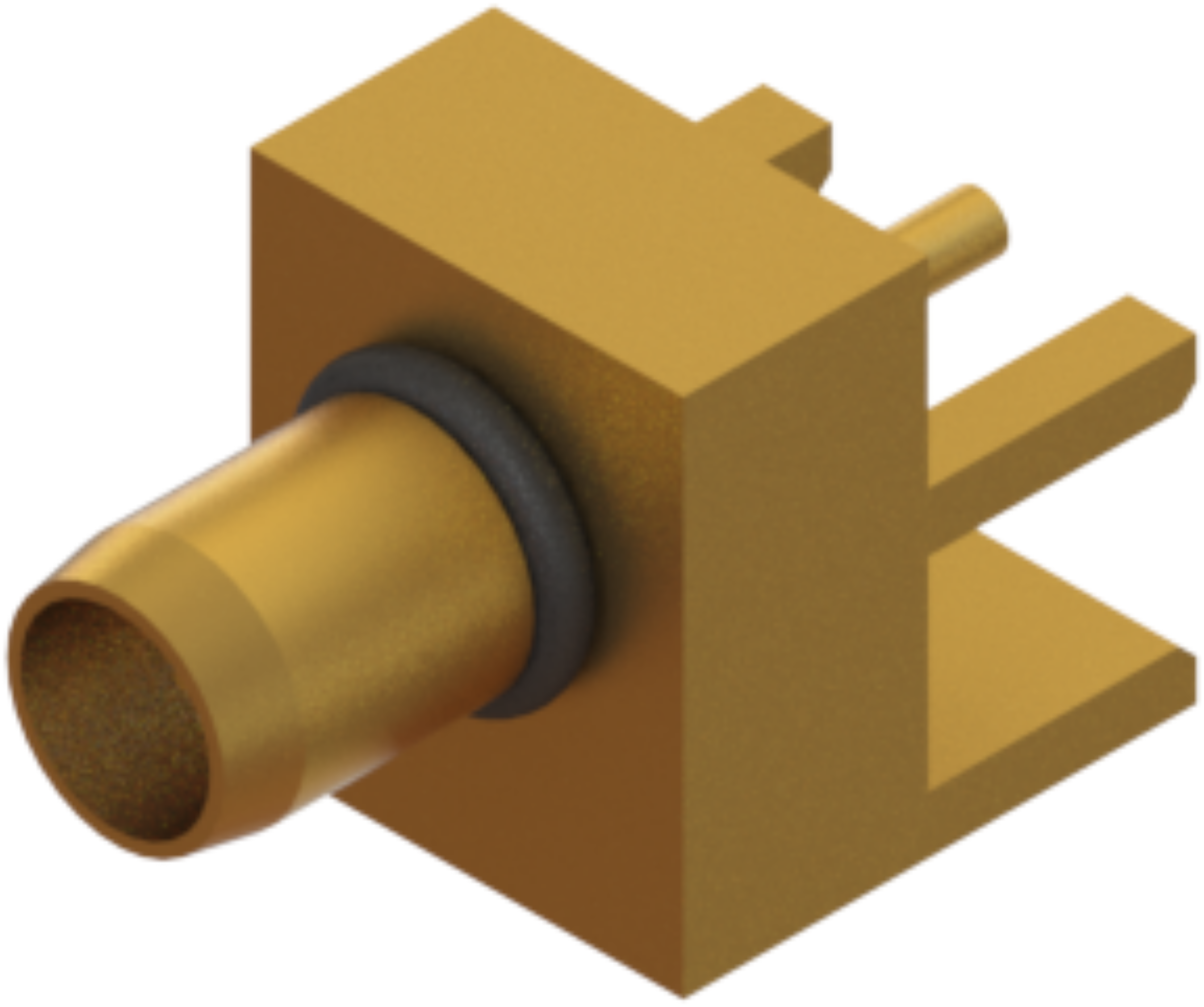

BMMA Male PCB Edge Launch Connector, .117" PCB Thickness"

Available Inventory: 0
1411-60007
BMMA Connectors 1411-60007
Datasheet
Part #   1412-60001

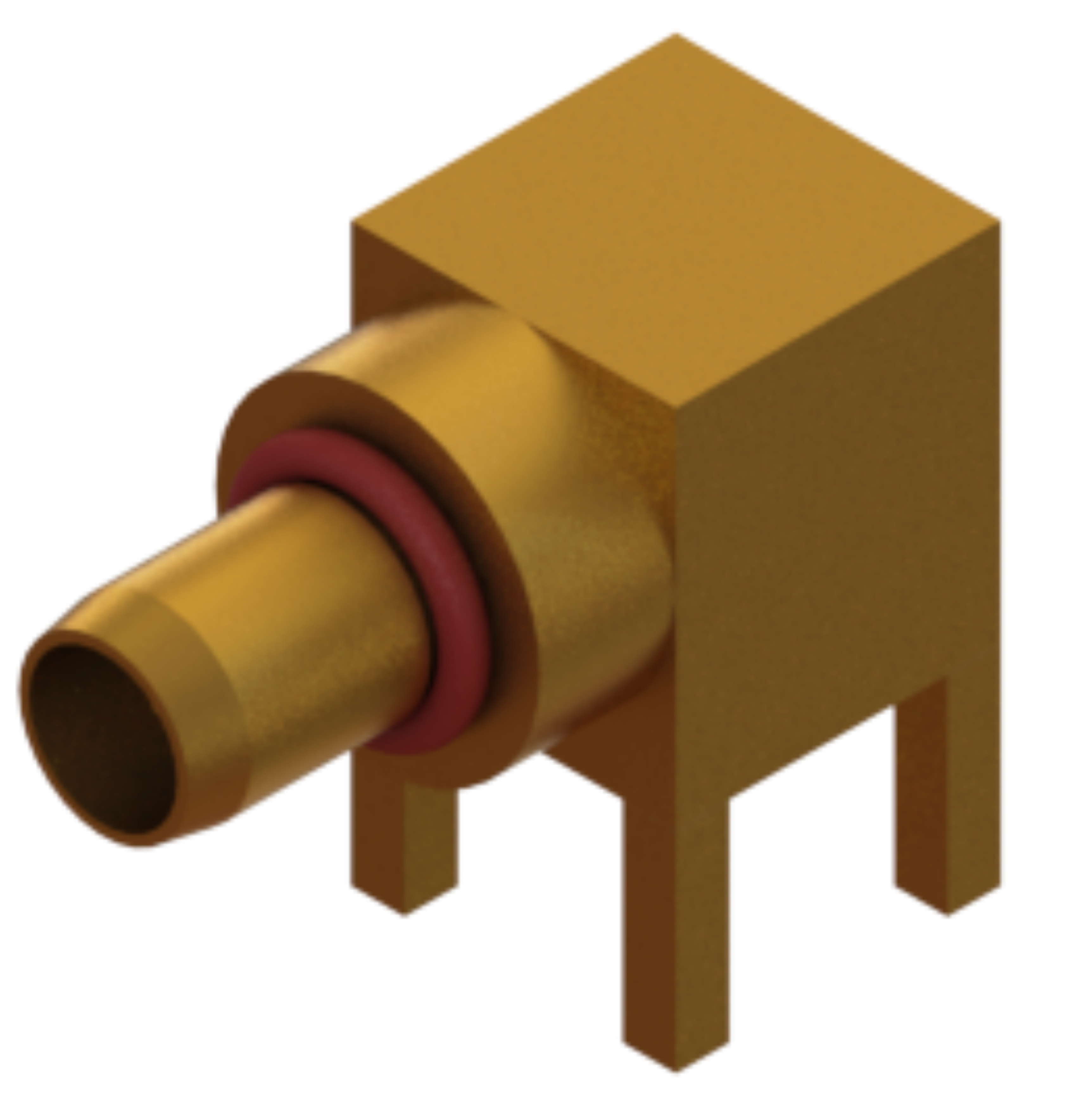

BMMA Male PCB Thru-Hole Connector, R/A
