P/N: SF1122-6101

BZ Male to SMA Female Adapter, Spring Loaded

In stock at Qty Order
Digi-Key Electronics 19
Mouser Electronics 3
Products specifications
Attribute name Attribute value
Gender Plug (Male)
Orientation (Body) Straight
RF Series BZ
Coupling Push-on
Impedance 50 ohms
Frequency 11 GHz
RF Series 2 SMA
Gender 2 Jack (Female)
Finish Passivated
Orientation 2 (Body) Straight
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Frequency GHz 11 GHz
Mechanical
Insertion Force 2.0 lbs
Withdrawal Force 1.25 lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Gender Plug (Male)
Orientation (Body) Straight
RF Series BZ
Coupling Push-on
Impedance 50 ohms
Frequency 11 GHz
RF Series 2 SMA
Gender 2 Jack (Female)
Finish Passivated
Orientation 2 (Body) Straight
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Frequency GHz 11 GHz
Mechanical
Insertion Force 2.0 lbs
Withdrawal Force 1.25 lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1122-6102

BZ Male to SMA Male Adapter, Spring Loaded

Available Inventory: 0
SF1122-6102
BZ Adapters SF1122-6102
Datasheet
Part #   SF1122-6106

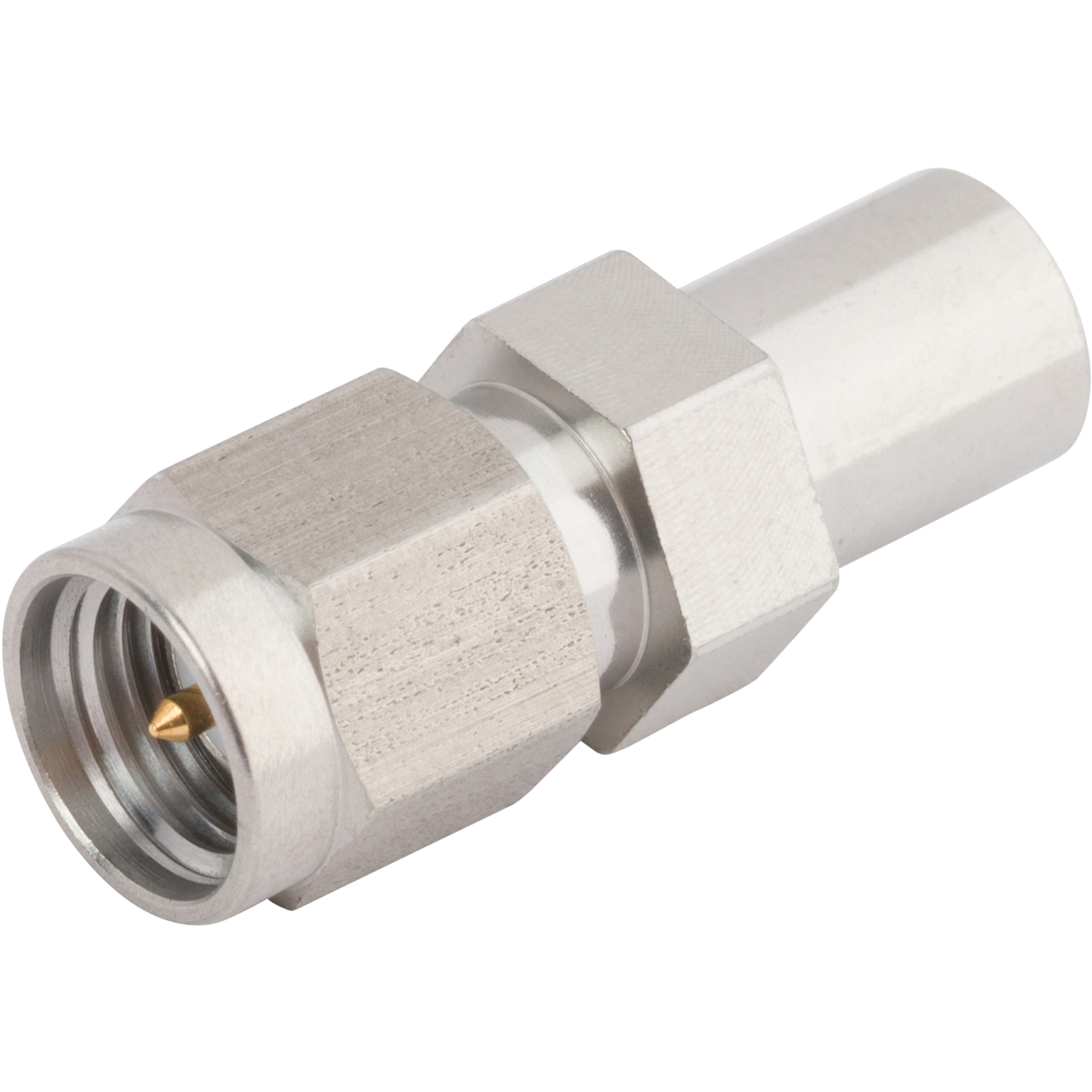

BZ Female to SMA Male Adapter
