P/N: 9311-60112

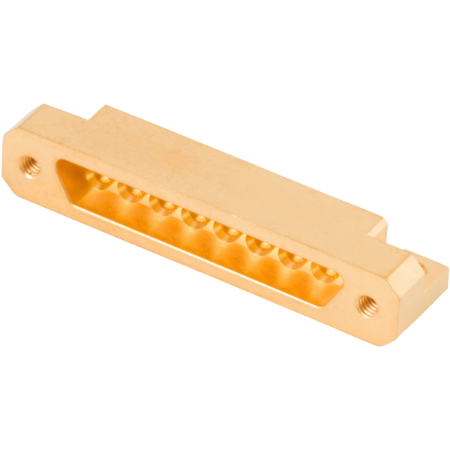

Mini-D RF Male PCB Edge Launch Connector, 8 Port

In stock at Qty Order
Mouser Electronics 10
Products specifications
Attribute name Attribute value
Family Mini-D RF
RF Series SMPS
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Detent Smooth Bore
Termination Style Solder
Mounting Type PCB Edge Launch
Number of Ports Multiple
Frequency 65 GHz
Impedance 50 ohms
Finish Gold
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mating Cycles - SB 500
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - FD 100
Insertion Force - SB 1.2 lbs
Withdrawal Force - FD 4.5 lbs
Withdrawal Force - SB 1.0 lbs
Insertion Force - FD 2.5 lbs
Axial Misalignment .010” Max
Temperature Rating -65°C to +165°C
Radial Misalignment 3° Max
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family Mini-D RF
RF Series SMPS
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Detent Smooth Bore
Termination Style Solder
Mounting Type PCB Edge Launch
Number of Ports Multiple
Frequency 65 GHz
Impedance 50 ohms
Finish Gold
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mating Cycles - SB 500
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - FD 100
Insertion Force - SB 1.2 lbs
Withdrawal Force - FD 4.5 lbs
Withdrawal Force - SB 1.0 lbs
Insertion Force - FD 2.5 lbs
Axial Misalignment .010” Max
Temperature Rating -65°C to +165°C
Radial Misalignment 3° Max
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
7038-0211

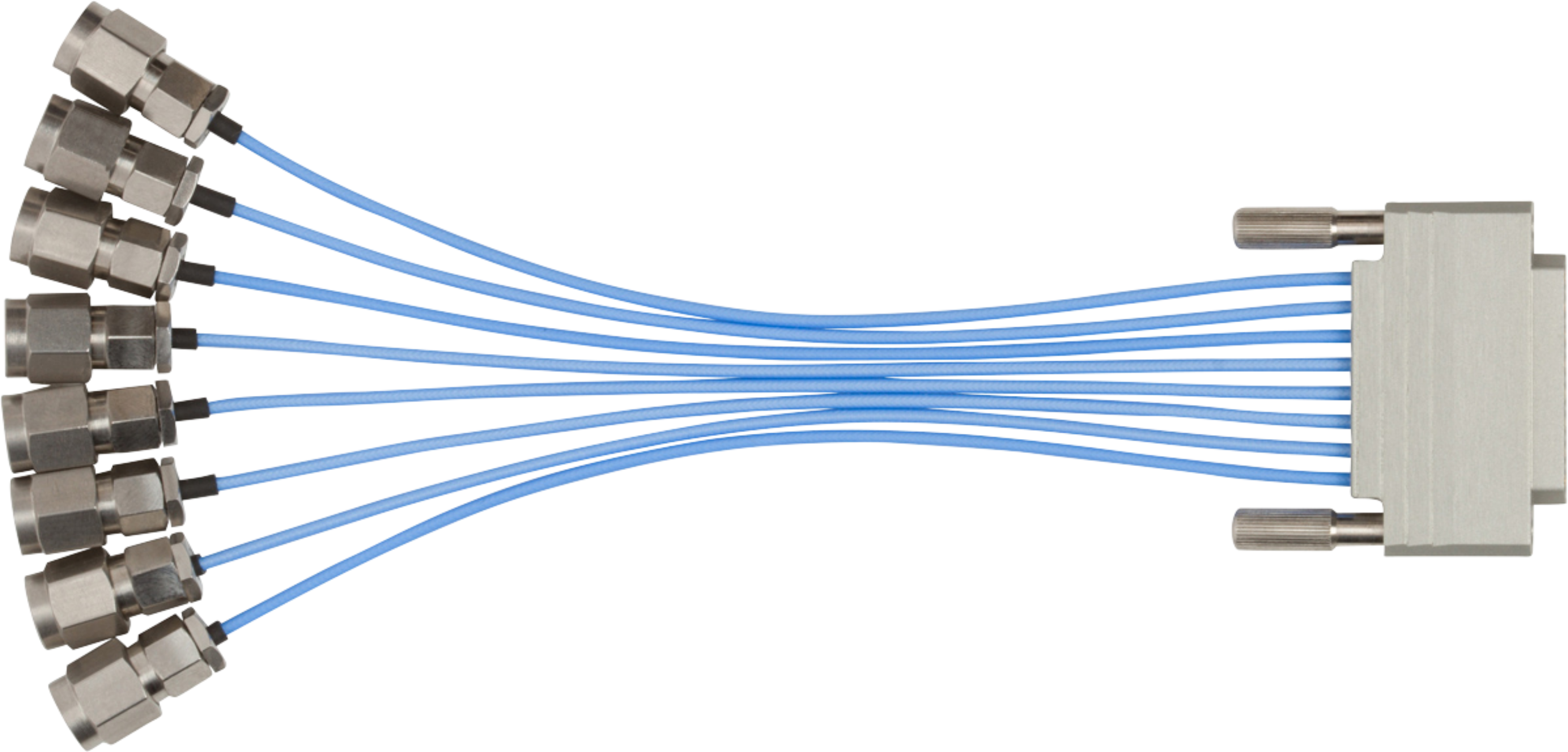

Mini-D RF Cable Assemblies 7038-0211
Datasheet
Part #   9311-60128

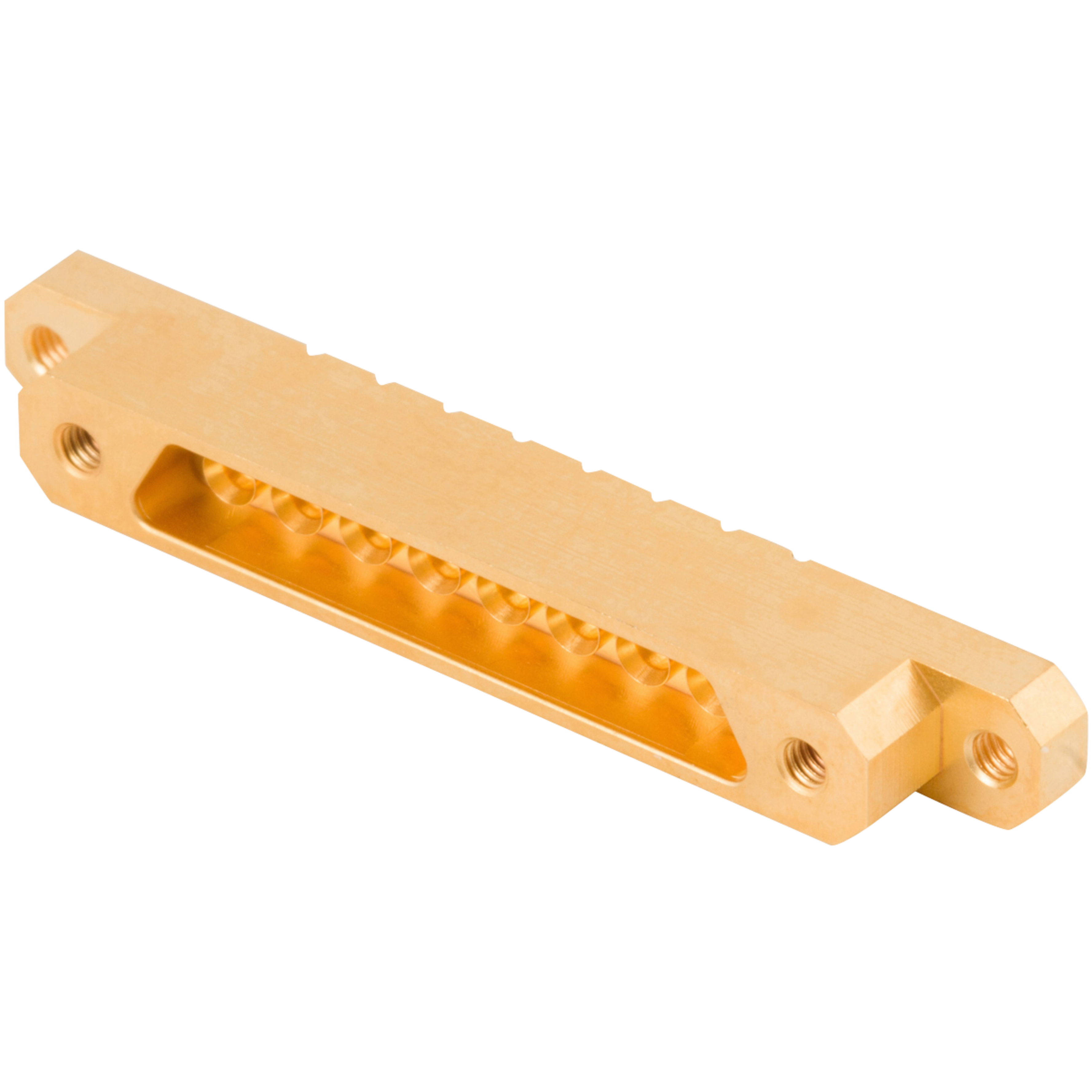

Mini-D RF Male PCB Surface Mount Connector, 8 Port
