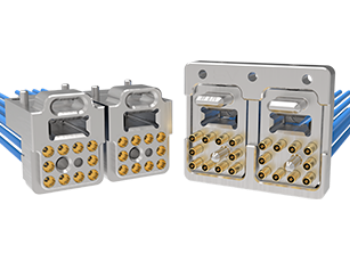

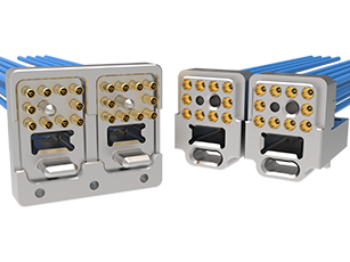

NanoRF Modules, SOSA Aligned

SV Microwave expands its VITA connector portfolio with a new line of Backplane and Plug-In modules designed for the NanoRF connector system and fully aligned to the latest SOSA technical standard. Engineered for modern embedded computing platforms, these modules deliver ultra-high density, high-frequency RF performance and seamless modular interoperability. Full compliance with the Sensor Open Systems Architecture ensures your design is future-proof and compatible with other key VITA standards, including VITA 66.5, VITA 46, and more.

Features / Benefits & Applications
Technical Specs
Additional Resources

Features / Benefits:

SOSA-Aligned Design
High-Density RF Performance
Hybrid RF/Fiber options
Drop-in Compatability

Applications:

Robust and rugged high-speed cabled solution
Mil-Aero
SIGINT, EWR, ground base station & communication systems, avionics, radar systems
Embedded Systems
Unmanned Systems like UAVs and UGVs

The specifications below are typical for the connector series, but may not apply to this particular part. Please see the datasheet for full specifications.

VITA NANORF

Impedance (Ω)	50
Frequency GHz	67 GHz
Shielding Effectiveness	≥ -140 dB, 3 MHz to 30 MHz ≥ -120 dB, 30 MHz to 3.0 GHz ≥ -100 dB, 3.0 GHz to 30 GHz ≥ -90 dB, 30 to 67.0 GHz
Dielectric withstanding Voltage	250 VRMS
Mating Cycles	500
Insertion Force	2.5 lbs (per contact)
Withdrawal Force	0.315 lbs
Temperature Rating	-55°C to +125°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
