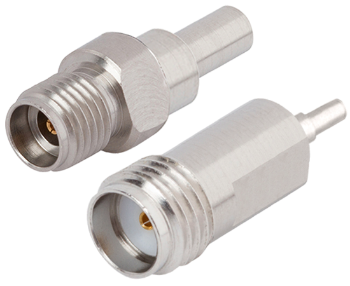

NanoRF VITA 67.3 Adapters
Our newest VITA adapter product line is designed to support the test, calibration, and optimization of embedded systems using SV’s NanoRF VITA 67.3 contacts. This suite of precision adapters provides direct access to individual NanoRF pin (Backplane) and socket (Plug-In) contacts, allowing system designers to validate electrical performance and easily maintain signal integrity during development. By minimizing the number of interfaces in the test setup, these adapters can also help improve overall system performance. Built for high-frequency embedded computing environments, they offer a reliable solution for validating NanoRF contact performance without compromising signal quality.
Features / Benefits:
- Features common threaded series: SMA, 2.92mm, and 1.85mm
- DC – 65GHz
Applications:
- Test and Instrumentation
- Mil-Aero
- Embedded Systems
The specifications below are typical for the connector series, but may not apply to this particular part. Please see the datasheet for full specifications.
VITA NANORF
| Impedance (Ω) | 50 |
| Frequency GHz | 67 GHz |
| Shielding Effectiveness |
≥ -140 dB, 3 MHz to 30 MHz ≥ -120 dB, 30 MHz to 3.0 GHz ≥ -100 dB, 3.0 GHz to 30 GHz ≥ -90 dB, 30 to 67.0 GHz |
| Dielectric withstanding Voltage | 250 VRMS |
| Mating Cycles | 500 |
| Insertion Force | 2.5 lbs (per contact) |
| Withdrawal Force | 0.315 lbs |
| Temperature Rating | -55°C to +125°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Part # 1183-6011
NanoRF Backplane Contact VITA 67.3 to 1.85mm Female Adapter
Available Inventory: 74
Part # 1183-6007
NanoRF Backplane Contact VITA 67.3 to 2.92mm Female Adapter
Available Inventory: 114
