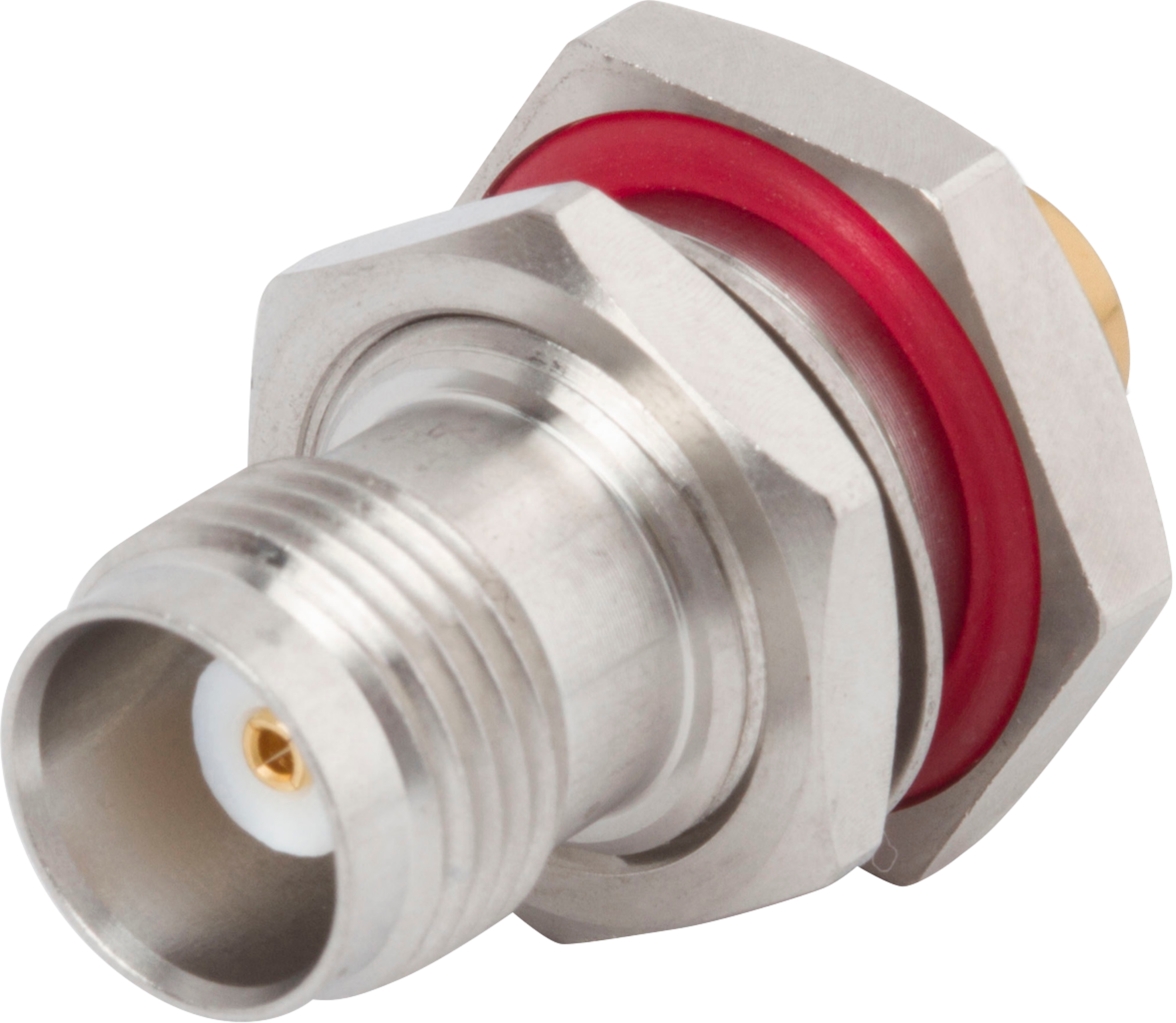

Attribute name | Attribute value |
---|---|
RF Series | PTNC |
Gender | Jack (Female) |
Mounting Type | Panel |
Orientation (Body) | Straight |
Coupling | Threaded |
Body Style | Jamnut/Bulkhead |
Impedance | 50 ohms |
IP Rating | IP 68 |
RF Series 2 | PTNC |
Gender 2 | Jack (Female) |
Style | Hermetic |
Frequency | 18 GHz |
Electrical | |
Frequency GHz | 18 GHz |
Impedance (Ω) | 50 |
Shielding Effectiveness | ≥ -90 dB |
Dielectric withstanding Voltage | 1500 VRMS |
Mating Cycles | 500 |
Mechanical | |
Mating Torque | 12 - 15 in - lbs |
Temperature Rating | -65°C to +165°C |
Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
Environmental | |
Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
Shock | MIL-STD-202, Method 213, Condition I |
Vibration | MIL-STD-202, Method 204, Condition D |
Thermal Shock | MIL-STD-202, Method 107, Condition B |
Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
