Shielded Edge Launch PCB Connectors

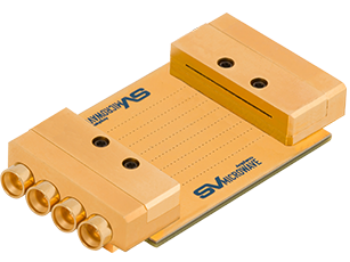

Picture for category  Shielded Edge Launch PCB Connectors

Engineered for environments sensitive to EMI and cross talk, SV Microwave’s new Shielded Multiport connectors deliver outstanding performance with industry-leading isolation and crosstalk suppression—achieving 70 dB min at 30 GHz. This exceptional electrical separation between ports ensures ultra-clean signal transmission, setting a new benchmark compared to traditional coax PCB multiports.

For optimal performance, SV must be consulted for the PCB Footprint design. To get started, email applications@svmicro.com.

Features / Benefits:

  • Superior isolation and crosstalk suppression
  • Single, 2- and 4-port designs
  • EMI Shielding
  • DC – 40GHz

Applications:

  • High-Speed Digital Test Systems
  • 5G Communication Systems
  • RADAR and Navigation Equipment
  • EW Suites
  • Payload and Sensor Systems
  • Unmanned Platforms

SMPM

Impedance (Ω)50
Frequency GHz65 GHz
Shielding Effectiveness≥ -80 dB DC - 3 GHz
 ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage325 VRMS
Mating Cycles - SB500
Mating Cycles - FD100
Insertion Force - SB2.5 lbs
Insertion Force - FD4.5 lbs
Withdrawal Force - SB1.5 lbs
Withdrawal Force - FD6.5 lbs
Axial Misalignment.010” Max
Radial Misalignment3° Max
Temperature Rating-65°C to +165°C
Corrosion (salt spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D
ShockMIL-STD-202, Method 213, Condition I
Thermal ShockMIL-STD-202, Method 107, Condition B
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

Product Video

Filters
Part #   3211-60469

SMPM Male PCB Edge Launch Connector, (Shielded), FD

Available Inventory: 0
3211-60469
SMPM Connectors 3211-60469
Datasheet
Part #   3211-60468

SMPM Male PCB Edge Launch Connector, (Shielded), SB

Available Inventory: 0
3211-60468
SMPM Connectors 3211-60468
Datasheet
Part #   9311-60342

SMPM Male PCB Edge Launch Connector, 2 Port (Shielded), FD

Available Inventory: 0
9311-60342
SMPM Connectors 9311-60342
Datasheet
Part #   9311-60341

SMPM Male PCB Edge Launch Connector, 2 Port (Shielded), SB

Available Inventory: 0
9311-60341
SMPM Connectors 9311-60341
Datasheet
Part #   9311-60344

SMPM Male PCB Edge Launch Connector, 4 Port (Shielded), FD

Available Inventory: 0
9311-60344
SMPM Connectors 9311-60344
Datasheet
Part #   9311-60343

SMPM Male PCB Edge Launch Connector, 4 Port (Shielded), SB

Available Inventory: 0
9311-60343
SMPM Connectors 9311-60343
Datasheet
