P/N: M39012/60-3001

SMA Female Flange Mount Connector, 4 Hole (Solder Pot)

In stock at Qty Order
TTI Inc Global Headquarters 149
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Body Style 4 Hole
Mounting Type Panel
Number of Ports Single
Style Solder Pot
Impedance 50 ohms
Frequency 18 GHz
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Frequency GHz 18 GHz
Mating Cycles 500
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Body Style 4 Hole
Mounting Type Panel
Number of Ports Single
Style Solder Pot
Impedance 50 ohms
Frequency 18 GHz
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Frequency GHz 18 GHz
Mating Cycles 500
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed

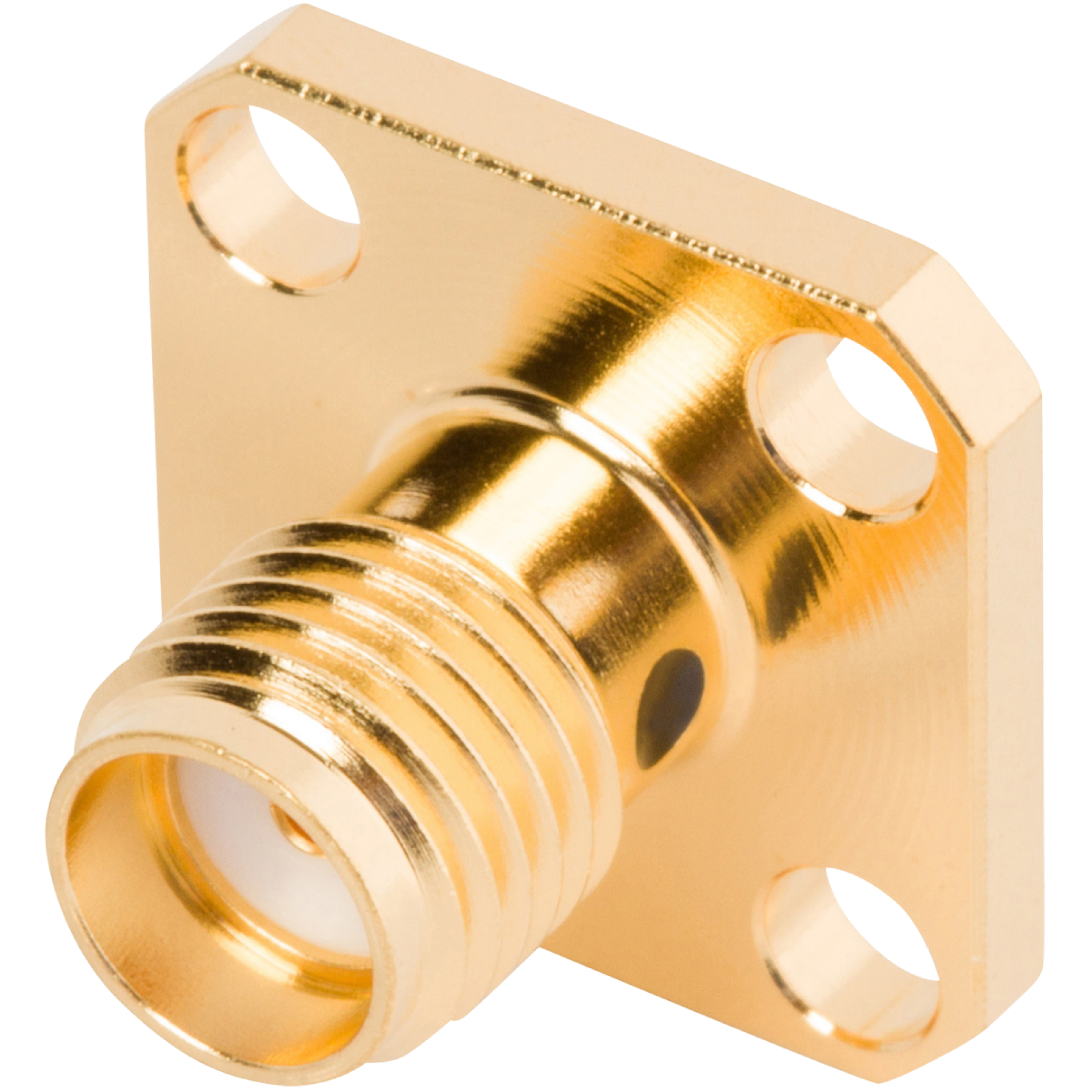

Part #   2950-6081

SMA Female Flange Mount Connector, 4 Hole (Solder Pot)

Available Inventory: 1060
2950-6081
SMA Connectors 2950-6081
Datasheet

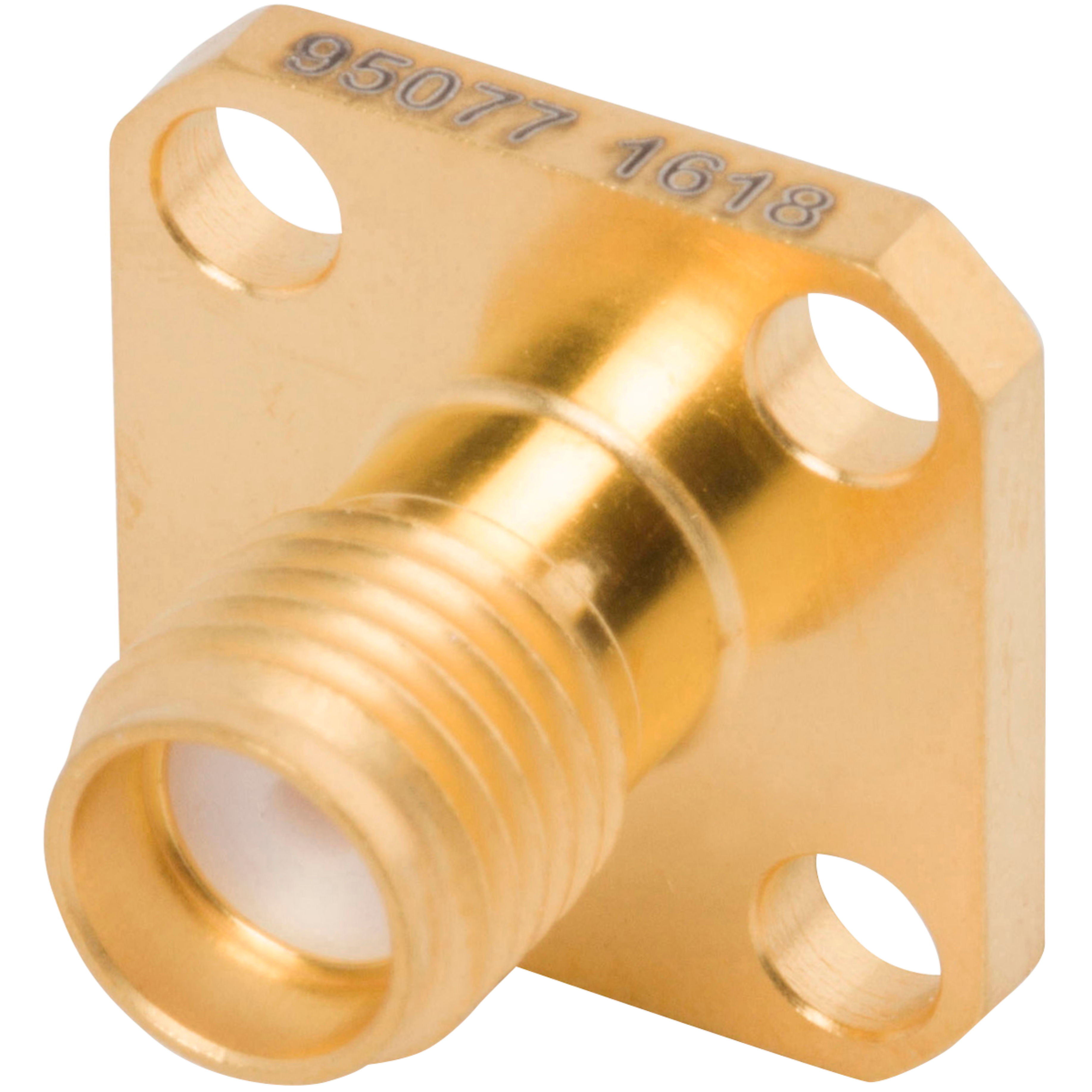

Part #   M39012/82B3001

SMA Female Flange Mount Connector, 4 Hole, for .085 Cable

Available Inventory: 262
M39012/82B3001
SMA Connectors M39012/82B3001
Datasheet

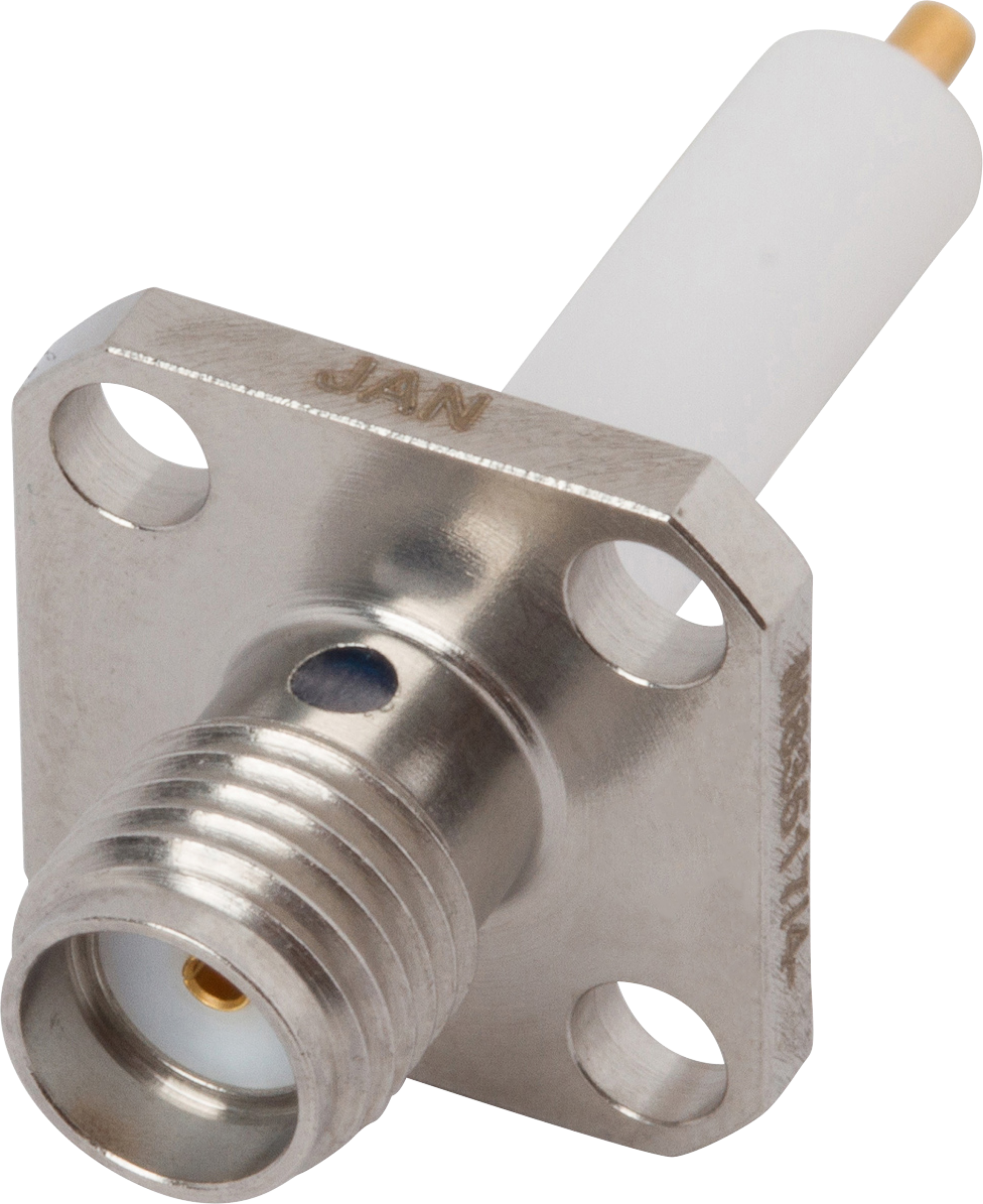

Part #   M83517/4-31005
