P/N: 2921-40049-1S

SMA Female Solderless Non-Magnetic LiteTouch PCB Connector, 2 Hole, with 4.76mm Screws (Stripline)

In stock at Qty Order
TTI Inc Global Headquarters 25
Mouser Electronics 16
Heilind Electronics 6
Digi-Key Electronics 1
Products specifications
Attribute name Attribute value
Family Non-Magnetic
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Body Style 2 Hole
Termination Style Solder-free
Mounting Type Panel
Frequency 18 GHz
Impedance 50 ohms
Coupling Threaded
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Frequency GHz 18 GHz
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family Non-Magnetic
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Body Style 2 Hole
Termination Style Solder-free
Mounting Type Panel
Frequency 18 GHz
Impedance 50 ohms
Coupling Threaded
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Frequency GHz 18 GHz
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF2921-61506

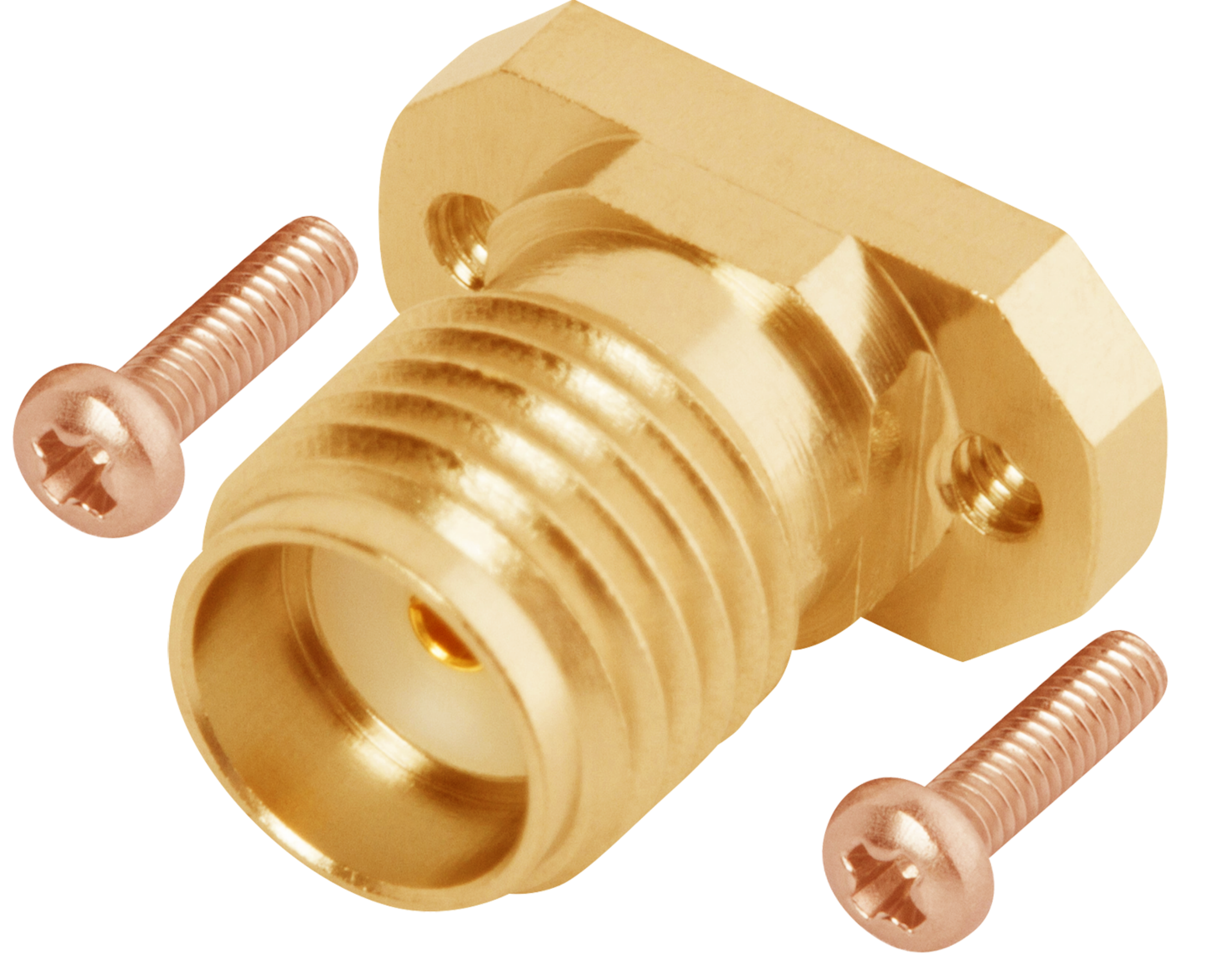

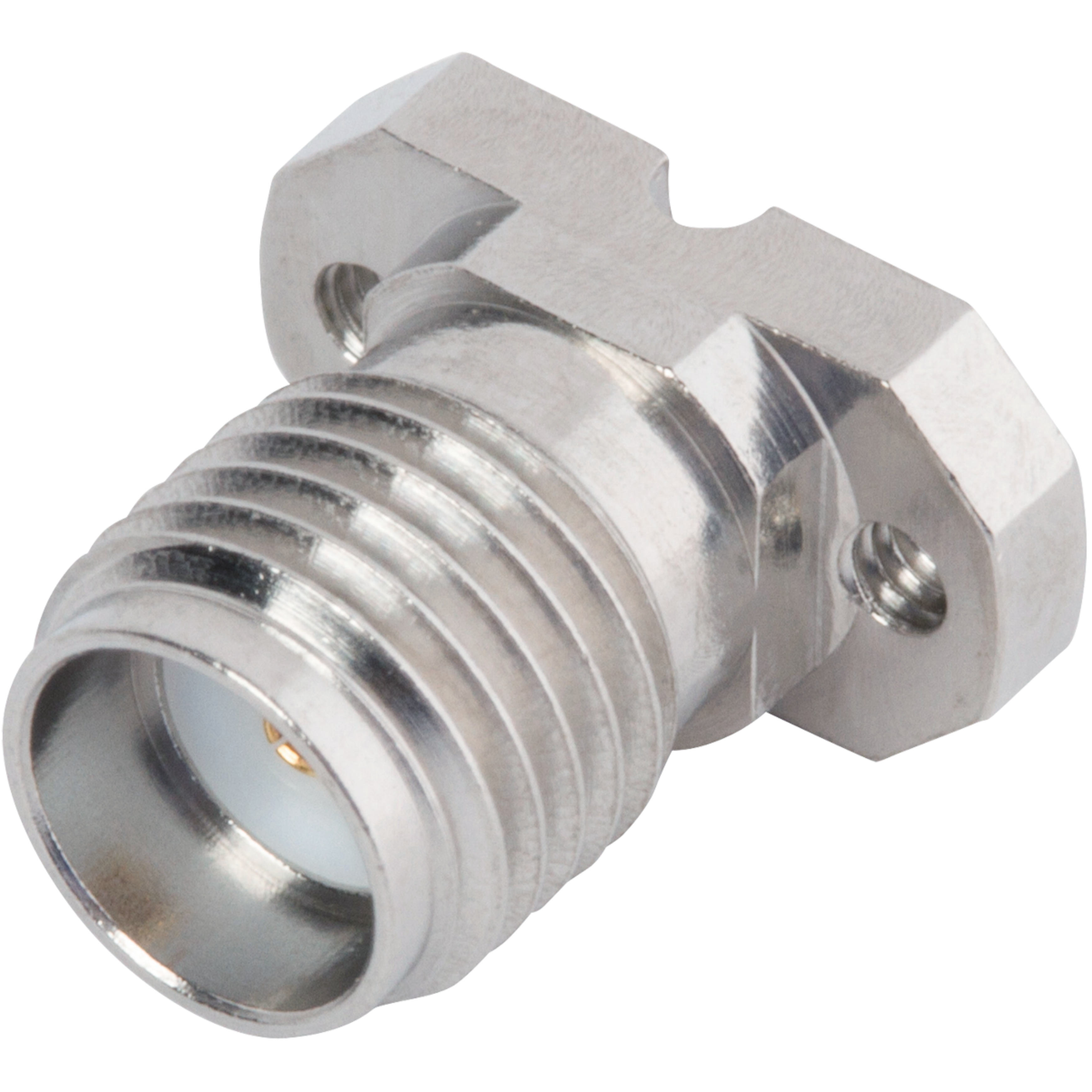

SMA Female Solderless LiteTouch PCB Connector, 2 Hole (CPW / Microstrip)

Available Inventory: 494
SF2921-61506
SMA Connectors SF2921-61506
Datasheet
SF2921-61506-1S
SMA Connectors SF2921-61506-1S
Datasheet

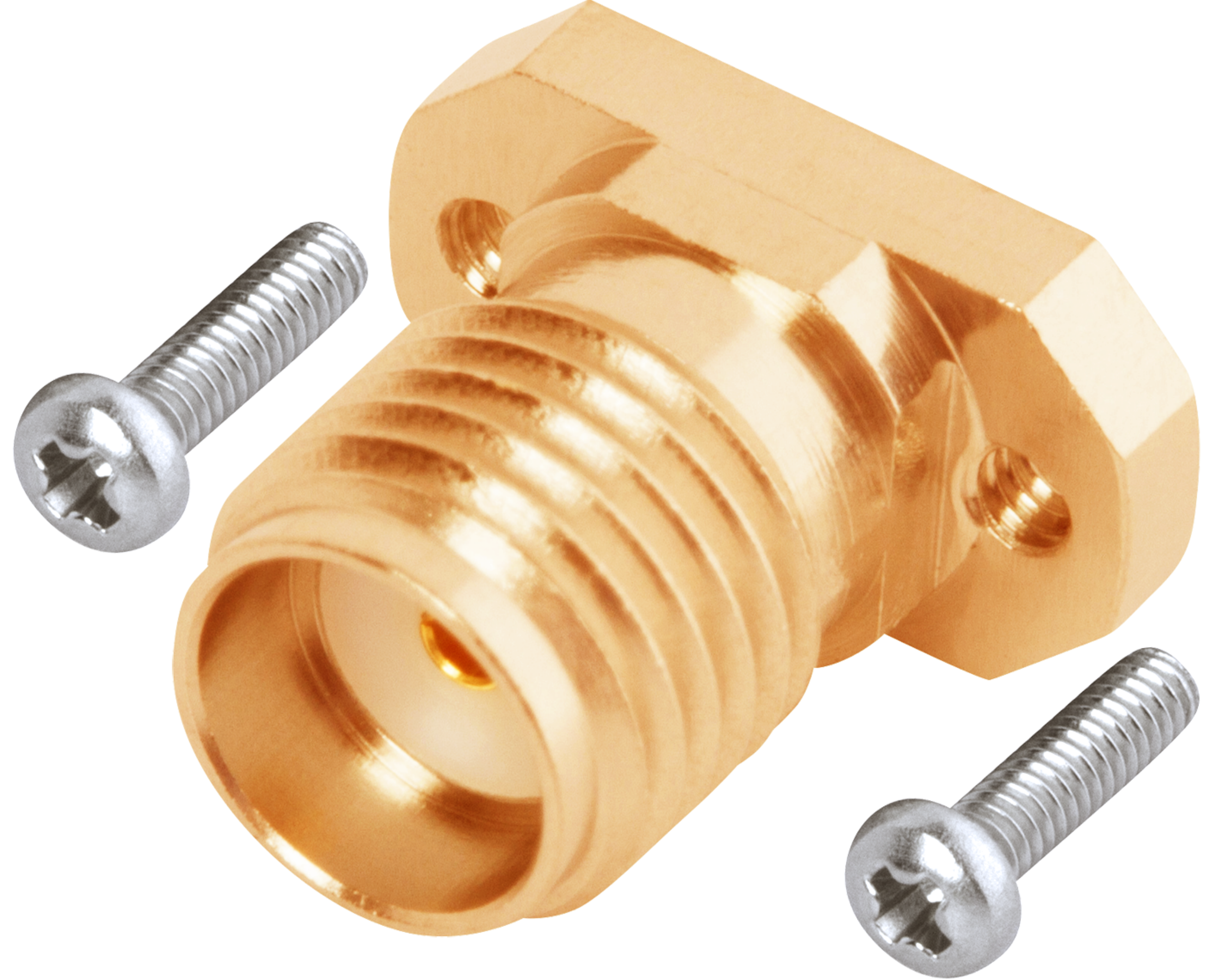

2921-40050-1S
