SMA Female to BNC Male Adapter
P/N: M55339/44-30001

Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Straight
Gender Jack (Female)
Coupling Keyed
Keyed Subtype 180-180
MIL-SPEC M55339
Finish Passivated
RF Series 2 BNC
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Electrical
Frequency 6 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 2/6/2023 1:01:11 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Straight
Gender Jack (Female)
Coupling Keyed
Keyed Subtype 180-180
MIL-SPEC M55339
Finish Passivated
RF Series 2 BNC
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Electrical
Frequency 6 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   M55339/34-30001

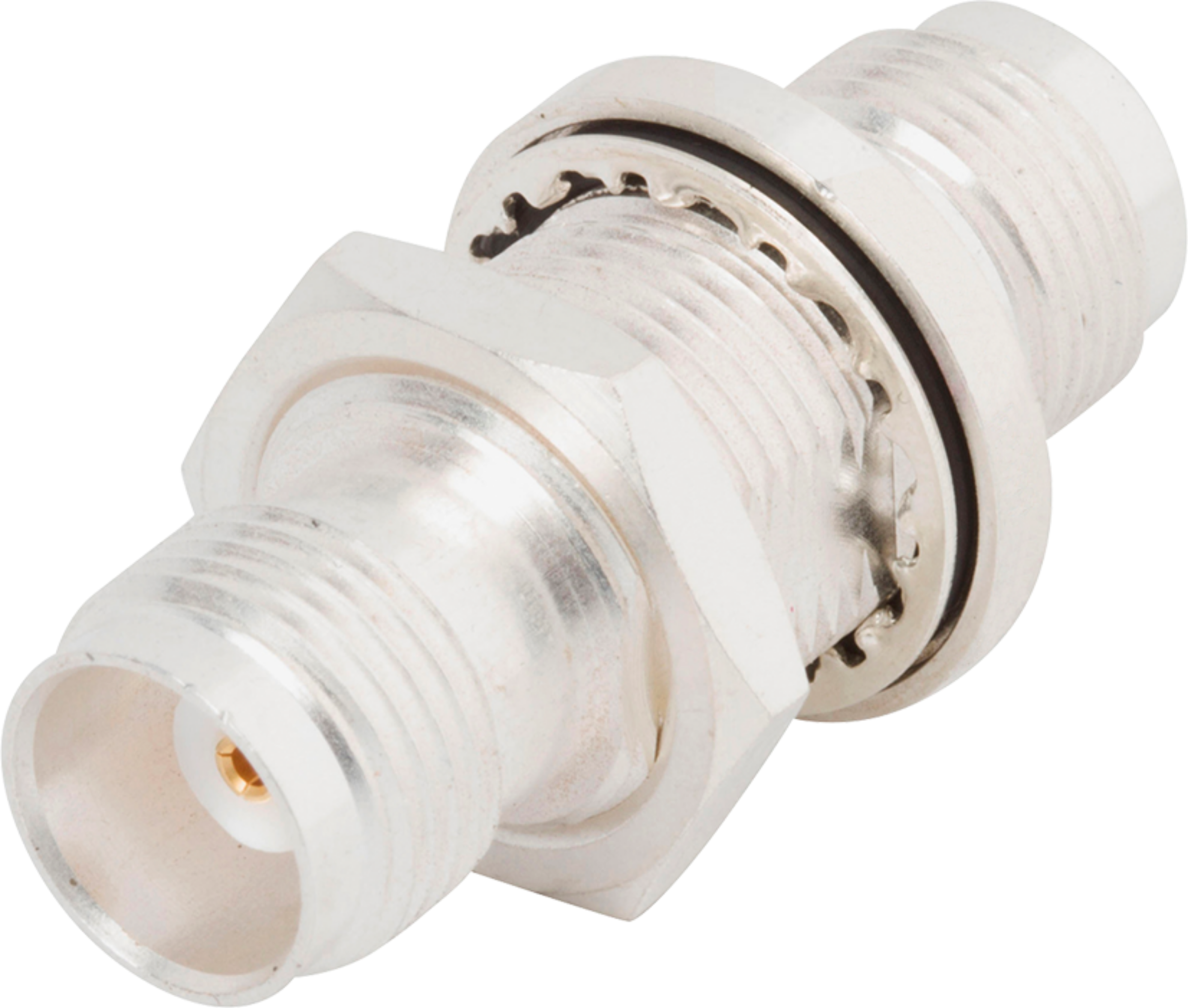

TNC Female to Female Bulkhead Hermetic Adapter

Available Inventory: 322
M55339/34-30001
TNC Adapters M55339/34-30001
Datasheet
Part #   M55339/41-30001

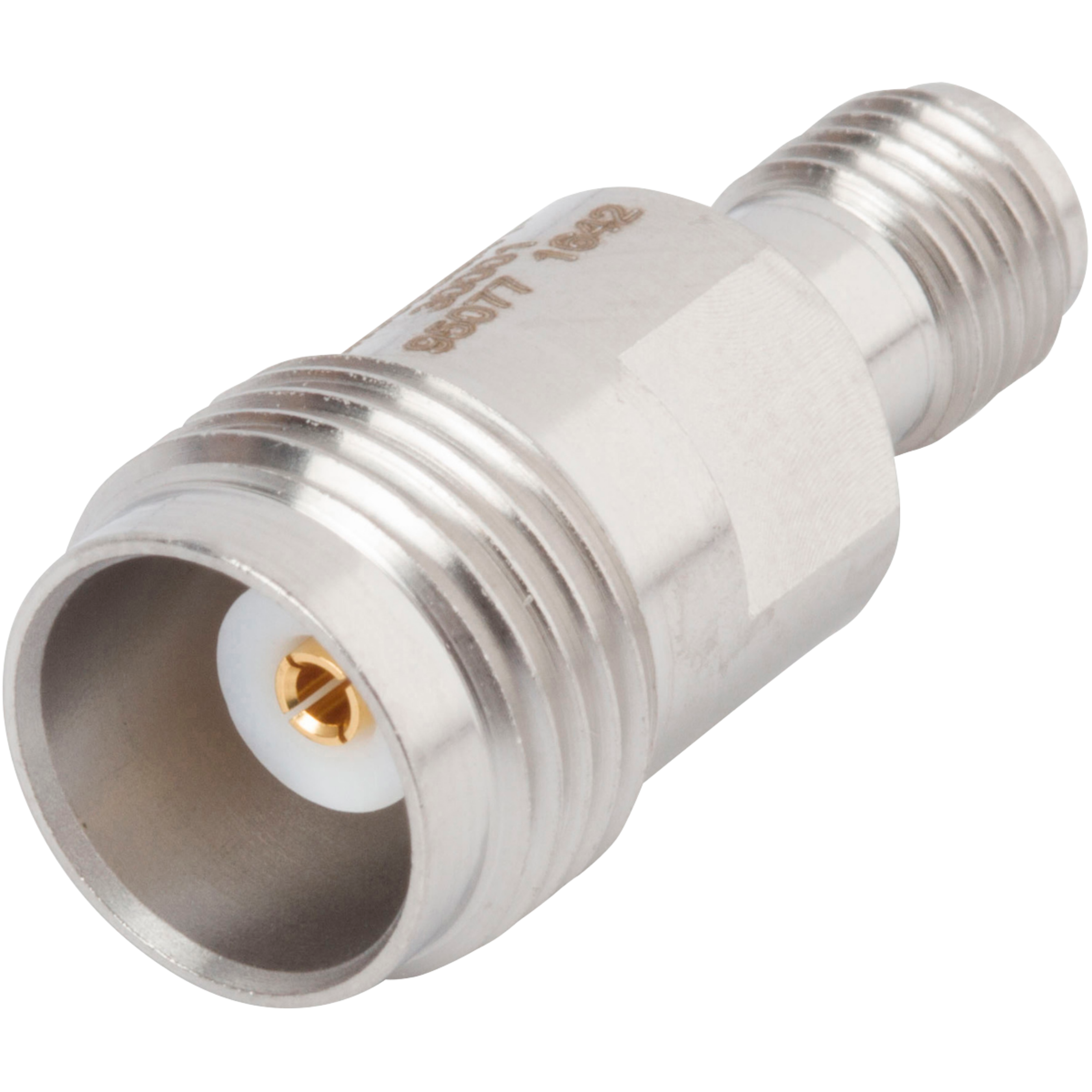

PTNC Female to SMA Female Adapter

Available Inventory: 86
M55339/41-30001
SMA Adapters M55339/41-30001
Datasheet
Part #   M55339/34-00001

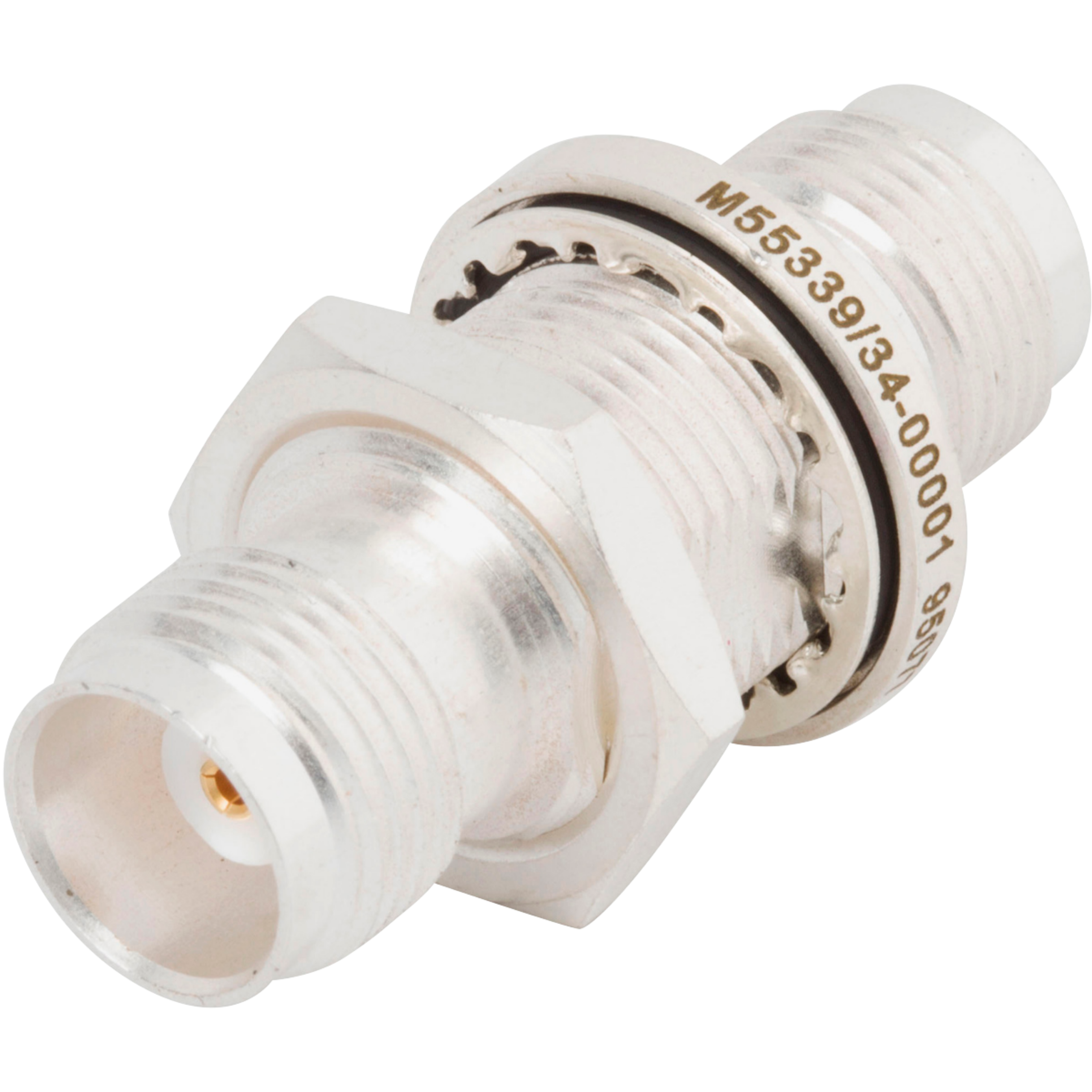

TNC Female to Female Bulkhead Hermetic Adapter
