P/N: SF2990-6002

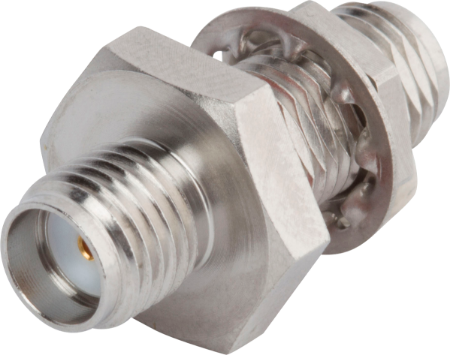

SMA Female to Female Bulkhead Adapter

In stock at Qty Order
TTI Inc Global Headquarters 185
Mouser Electronics 71
Microwave Components LLC 60
Digi-Key Electronics 8
Products specifications
Attribute name Attribute value
RF Series SMA
Coupling Threaded
Orientation (Body) Straight
Gender Jack (Female)
Mounting Type Panel
Frequency 18 GHz
Body Style Jamnut/Bulkhead
Finish Passivated
Impedance 50 ohms
RF Series 2 SMA
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Mating Cycles 500
Dielectric withstanding Voltage 1000 VRMS
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Frequency GHz 18 GHz
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Coupling Threaded
Orientation (Body) Straight
Gender Jack (Female)
Mounting Type Panel
Frequency 18 GHz
Body Style Jamnut/Bulkhead
Finish Passivated
Impedance 50 ohms
RF Series 2 SMA
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Mating Cycles 500
Dielectric withstanding Voltage 1000 VRMS
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Frequency GHz 18 GHz
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Customers Also Viewed
Part #   SF2990-6005

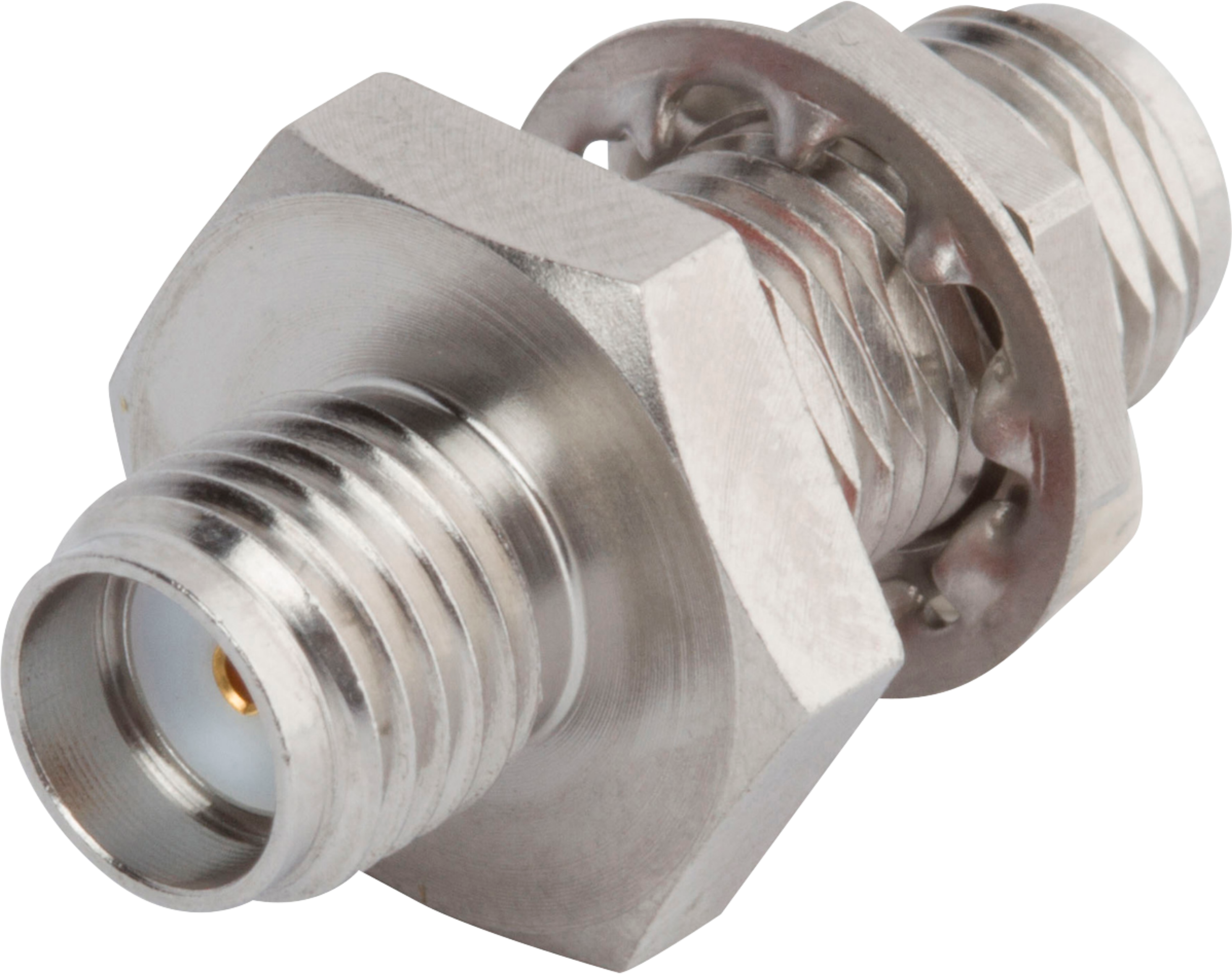

SMA Female to Female Bulkhead Adapter

Available Inventory: 4144
SF2990-6005
SMA Adapters SF2990-6005
Datasheet
Part #   SF2991-6002

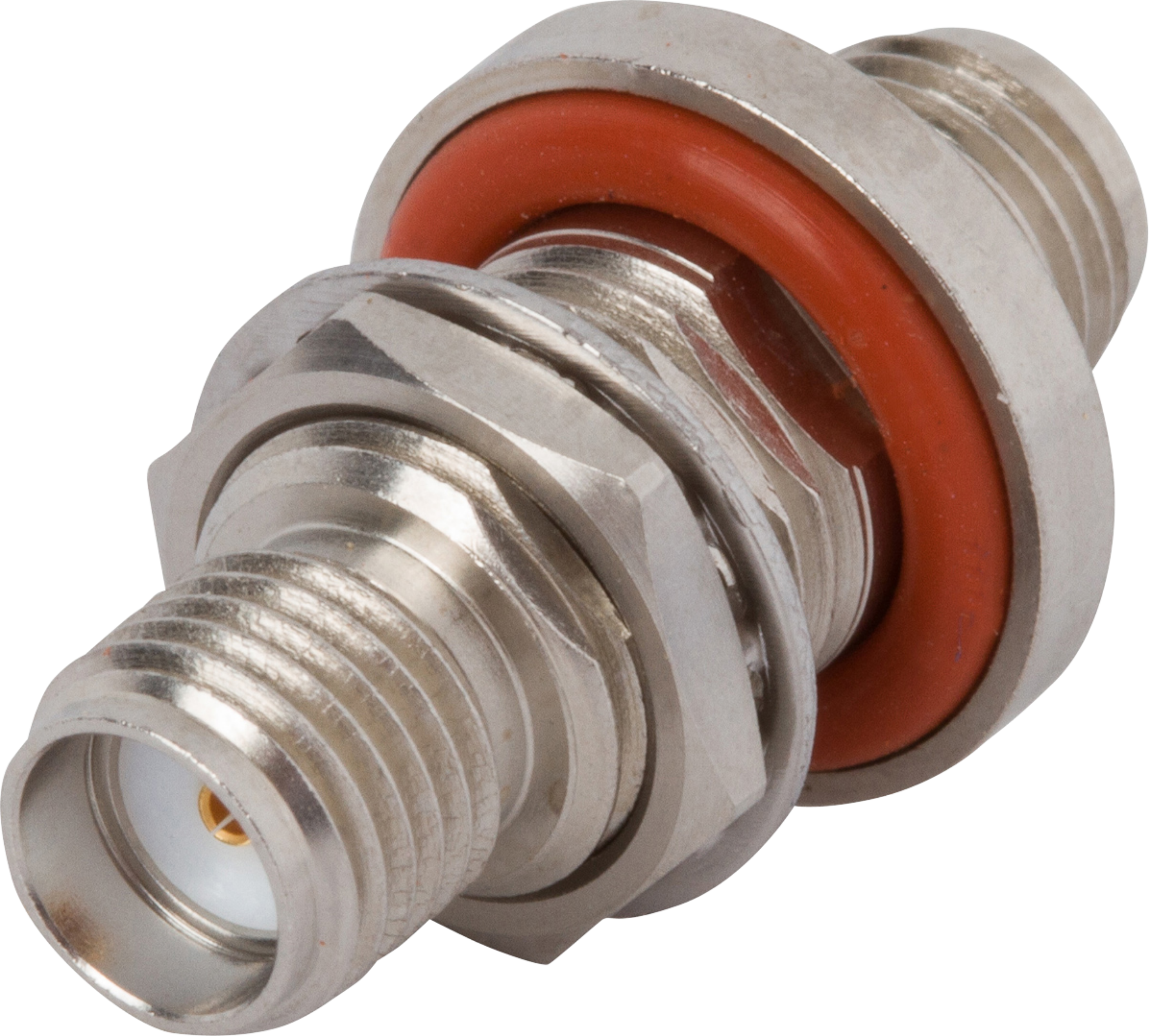

SMA Female to Female Bulkhead Hermetic Adapter
