P/N: SF2991-6007

SMA Female to Female Flange Mount Adapter, 4 Hole

In stock at Qty Order
A.E. Petsche Company 1738
Digi-Key Electronics 676
TTI Inc Global Headquarters 274
Mouser Electronics 178
Arrow Electronics Inc 102
Microwave Components LLC 67
Master Electronics 50
Newark 50
Electro Enterprises Inc 30
Heilind Electronics 4
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type Panel
Finish Passivated
Body Style 4 Hole
RF Series 2 SMA
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Frequency 18 GHz
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Inter-mate ability 2.92mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type Panel
Finish Passivated
Body Style 4 Hole
RF Series 2 SMA
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Frequency 18 GHz
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Inter-mate ability 2.92mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1132-6001

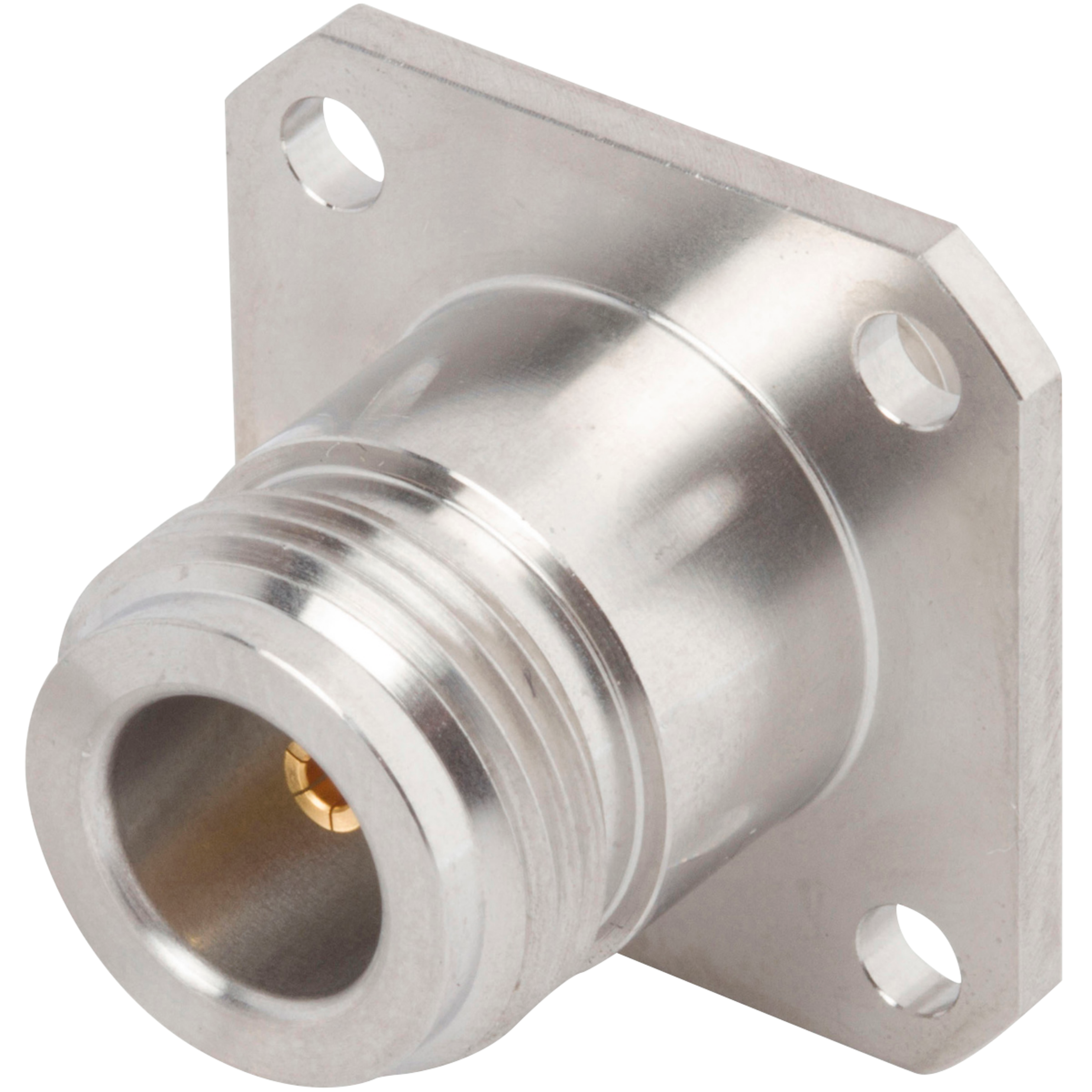

SMA Female to PN Female Flange Mount Adapter, 4 Hole

Available Inventory: 842
SF1132-6001
SMA Adapters SF1132-6001
Datasheet
Part #   SF1102-6024

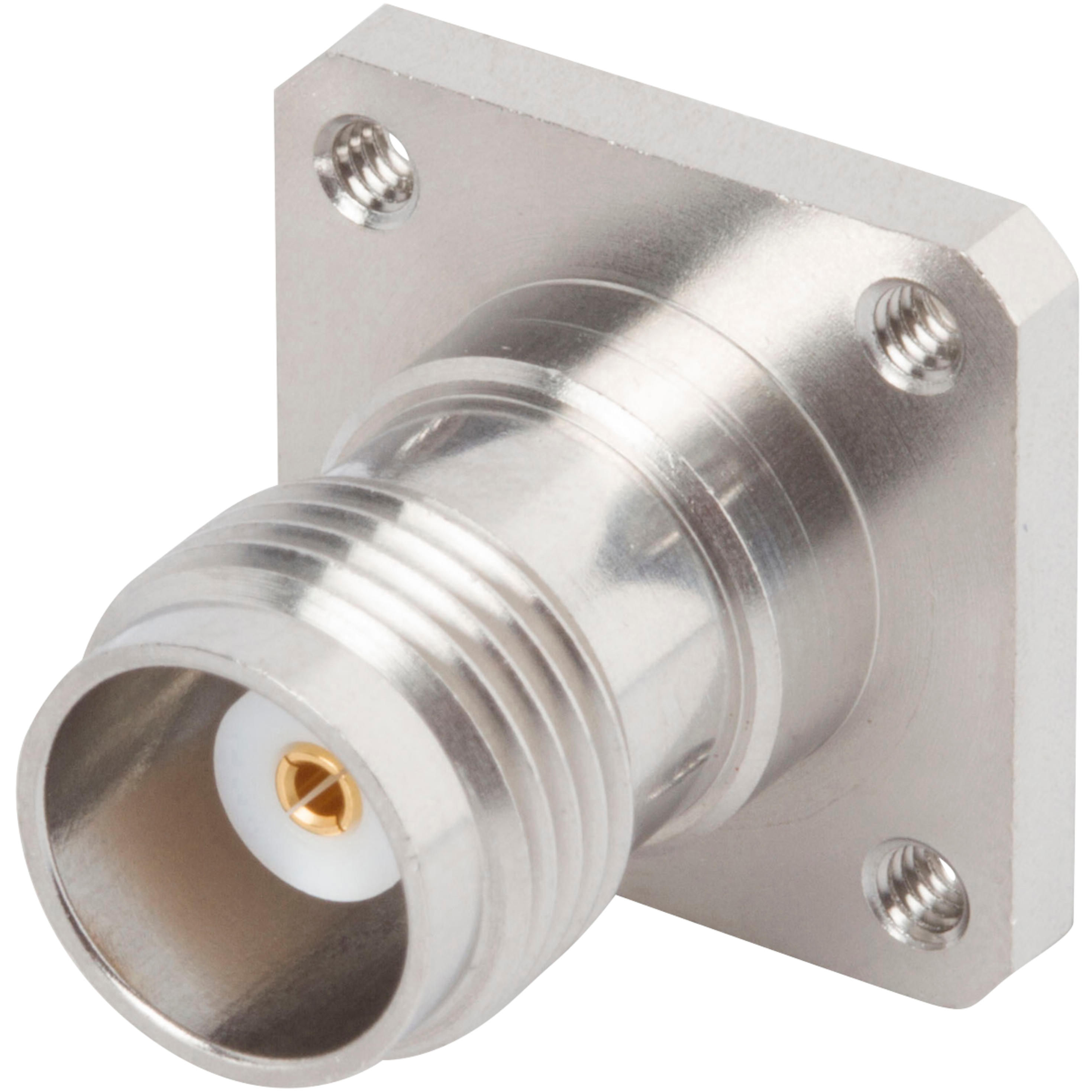

SMA Female to PTNC Female Flange Mount Adapter, 4 Hole

Available Inventory: 196
SF1102-6024
SMA Adapters SF1102-6024
Datasheet
Part #   SF1102-6002

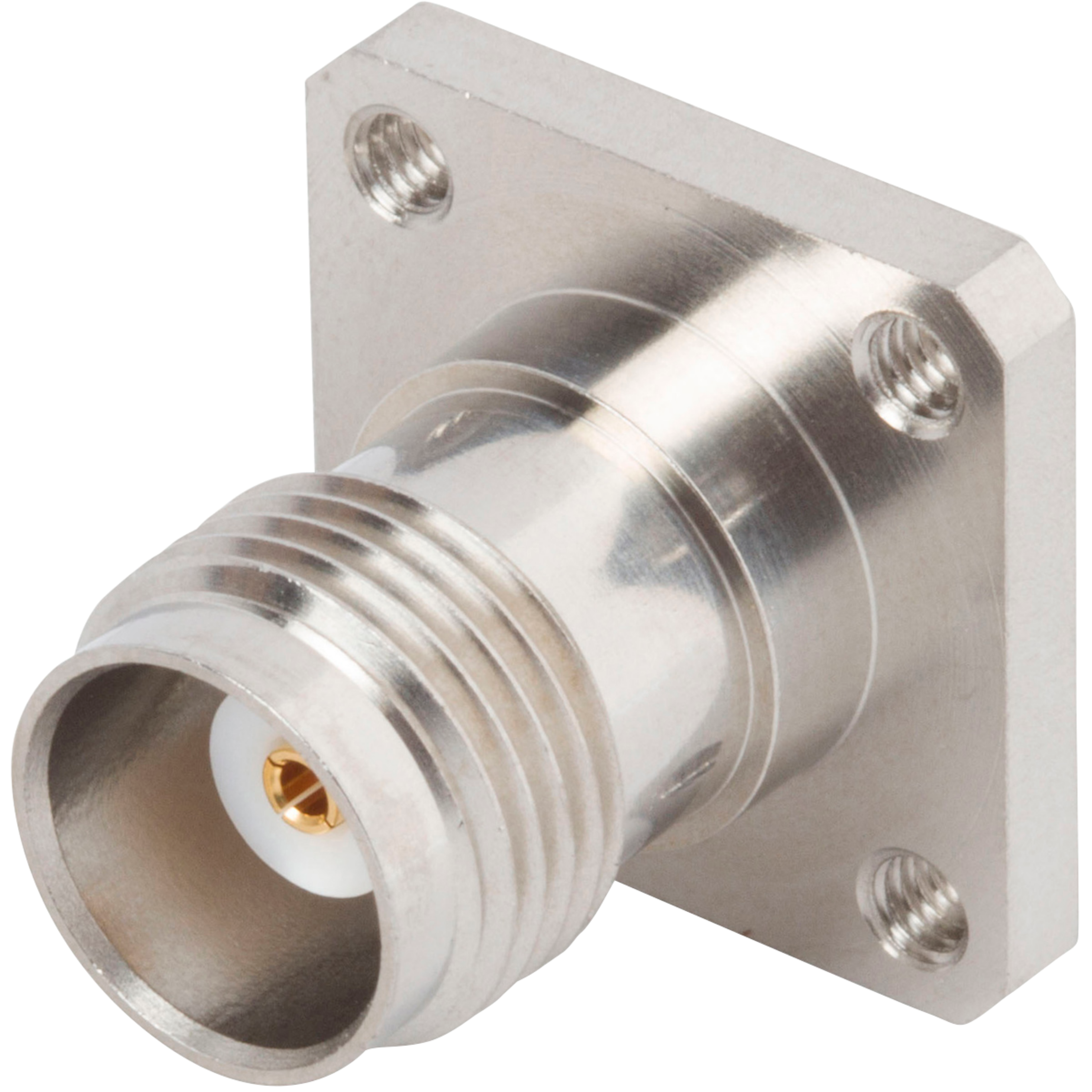

SMA Female to PTNC Female Flange Mount Adapter, 4 Hole
