P/N: SF1102-6001

SMA Female to PTNC Female Adapter

In stock at Qty Order
Digi-Key Electronics 25
Mouser Electronics 17
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Straight
Coupling Threaded
Frequency 18 GHz
Gender 2 Jack (Female)
Impedance 50 ohms
Orientation 2 (Body) Straight
RF Series 2 PTNC
Gender Jack (Female)
Finish Passivated
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Mechanical
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Straight
Coupling Threaded
Frequency 18 GHz
Gender 2 Jack (Female)
Impedance 50 ohms
Orientation 2 (Body) Straight
RF Series 2 PTNC
Gender Jack (Female)
Finish Passivated
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Mechanical
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

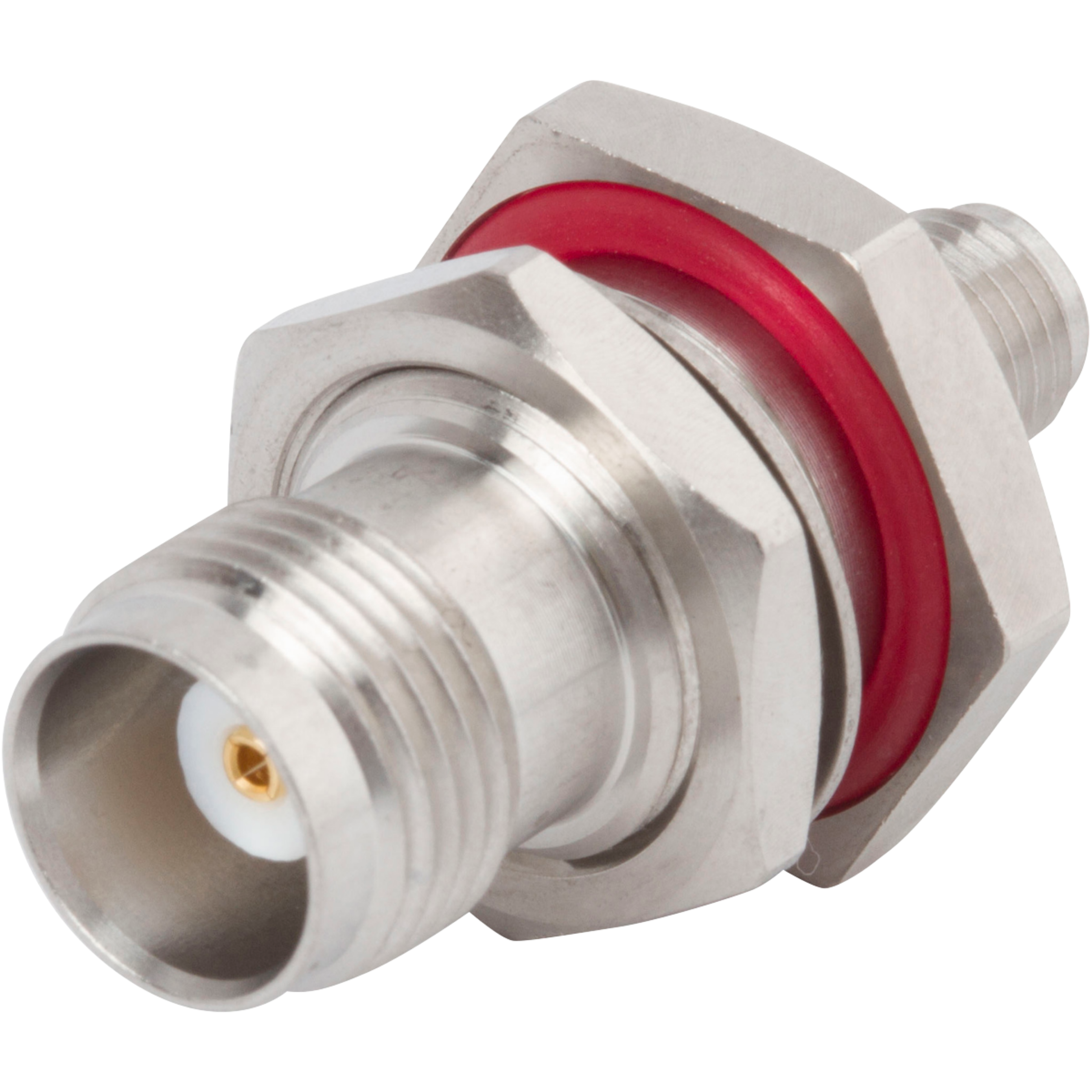

Part #   SF1134-6007

SMA Female to PTNC Female Bulkhead Adapter

Available Inventory: 776
SF1134-6007
SMA Adapters SF1134-6007
Datasheet

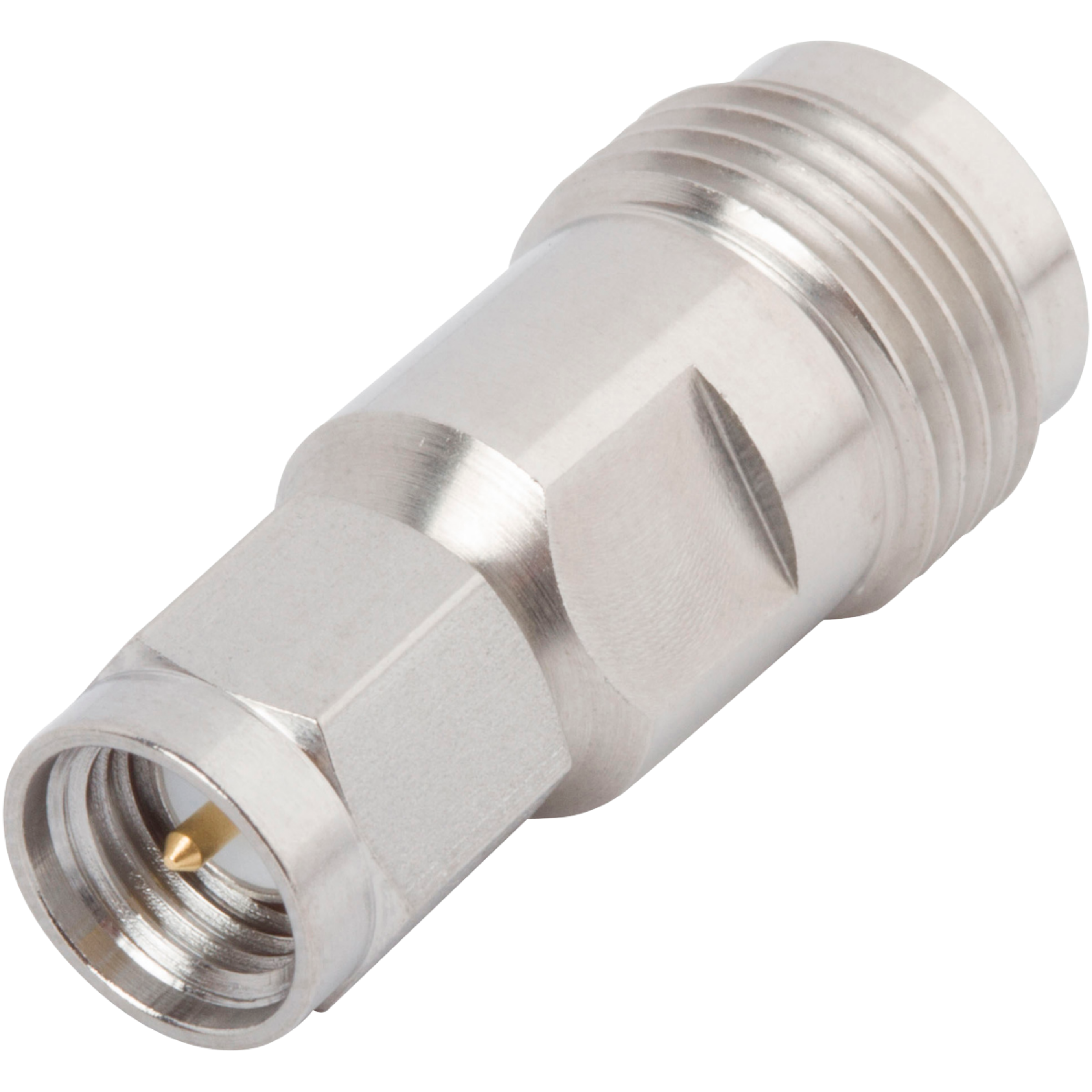

Part #   SF1108-6001

SMA Male to PTNC Female Adapter

Available Inventory: 8
SF1108-6001
SMA Adapters SF1108-6001
Datasheet

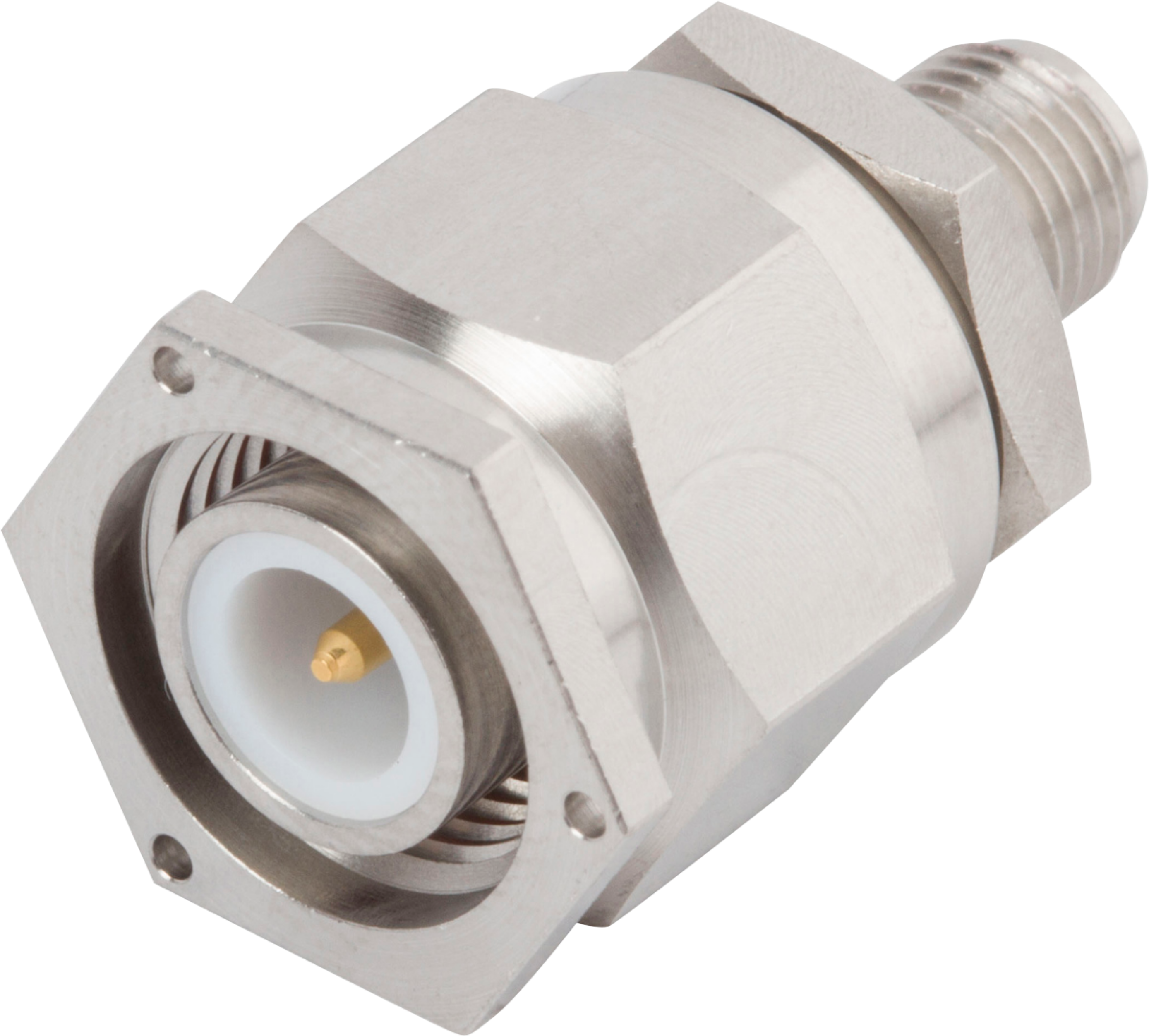

Part #   SF1109-6005
