P/N: M39012/55-3007

SMA Male Cable Connector, Lockwire Holes, for RG-174 Cable

In stock at Qty Order
Digi-Key Electronics 69
Heilind Electronics 17
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Coupling Threaded
Orientation (Body) Straight
Termination Style Solder
Number of Ports Single
Frequency 11 GHz
Impedance 50 ohms
MIL-SPEC M39012
Finish Passivated
Cable Type RG-174
Electrical
Frequency GHz 18 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Inter-mate ability 2.92mm
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Coupling Threaded
Orientation (Body) Straight
Termination Style Solder
Number of Ports Single
Frequency 11 GHz
Impedance 50 ohms
MIL-SPEC M39012
Finish Passivated
Cable Type RG-174
Electrical
Frequency GHz 18 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Inter-mate ability 2.92mm
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed

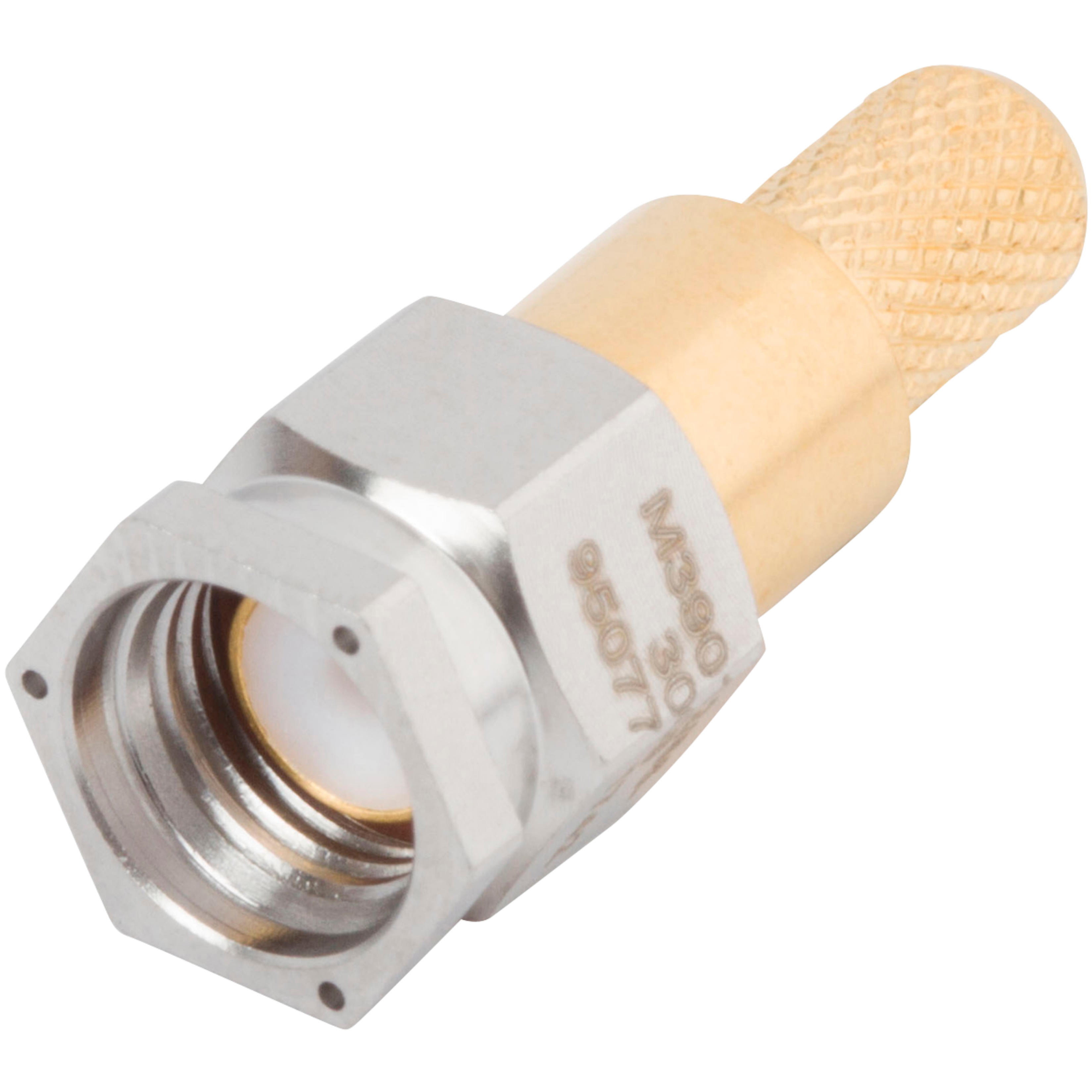

Part #   M39012/55-3009

SMA Male Cable Connector, Lockwire Holes for RG-58 Cable

Available Inventory: 429
M39012/55-3009
SMA Connectors M39012/55-3009
Datasheet

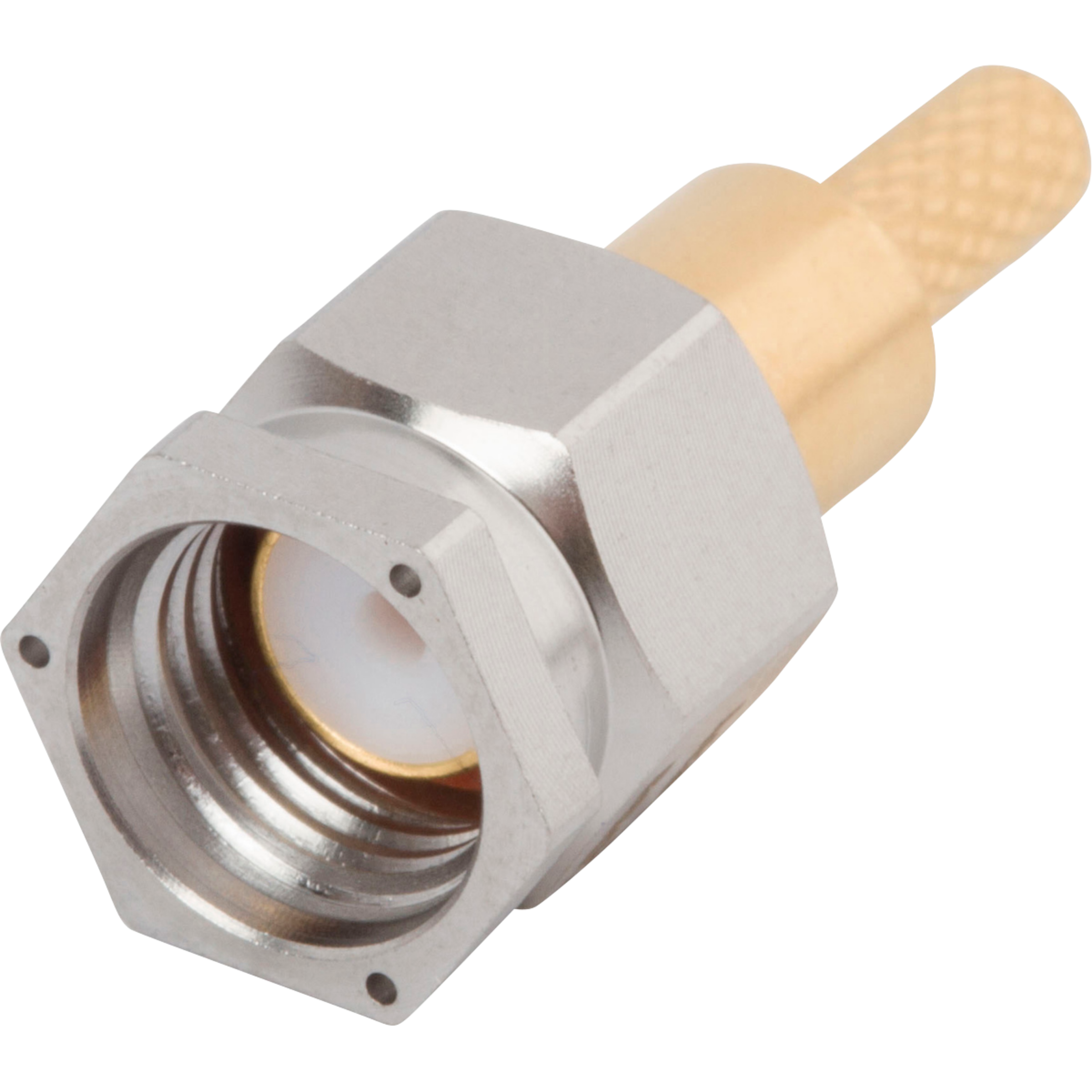

Part #   M39012/55-3030

SMA Male Cable Connector, Lockwire Holes for M17/152-00001 Cable

Available Inventory: 582
M39012/55-3030
SMA Connectors M39012/55-3030
Datasheet

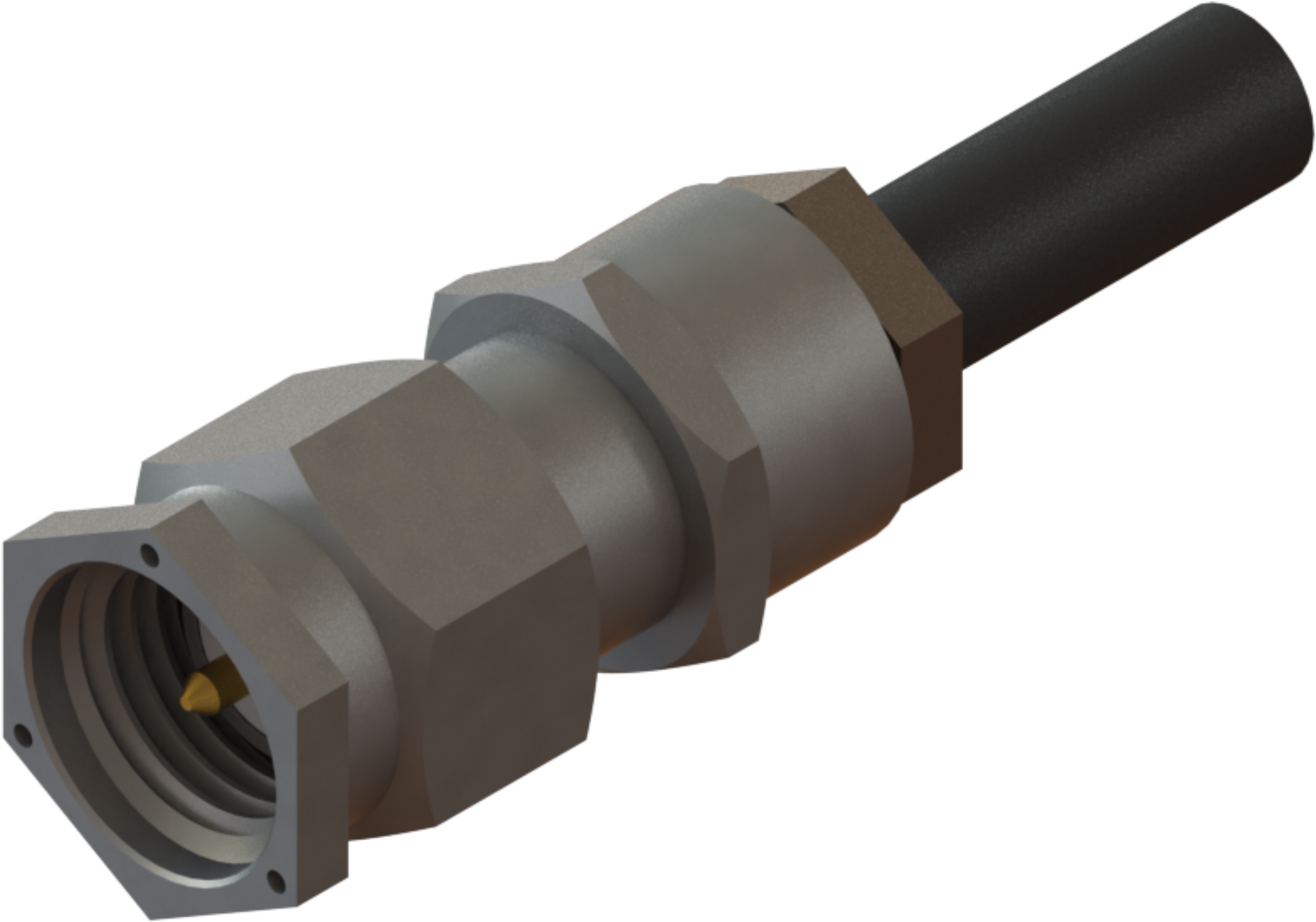

Part #   M39012/55-3006
