P/N: M39012/55B3022

SMA Male Cable Connector, Lockwire Holes, for RG-58 Cable

In stock at Qty Order
Electro Enterprises Inc 280
Digi-Key Electronics 126
Microwave Components LLC 82
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Coupling Threaded
Orientation (Body) Straight
Termination Style Crimp
Number of Ports Single
Frequency 18 GHz
Impedance 50 ohms
MIL-SPEC M39012
Cable Type RG-58
Finish Passivated
Electrical
Frequency GHz 18 GHz
Impedance (Ω) 50
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Mechanical
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Coupling Threaded
Orientation (Body) Straight
Termination Style Crimp
Number of Ports Single
Frequency 18 GHz
Impedance 50 ohms
MIL-SPEC M39012
Cable Type RG-58
Finish Passivated
Electrical
Frequency GHz 18 GHz
Impedance (Ω) 50
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Mechanical
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   M39012/55-3128

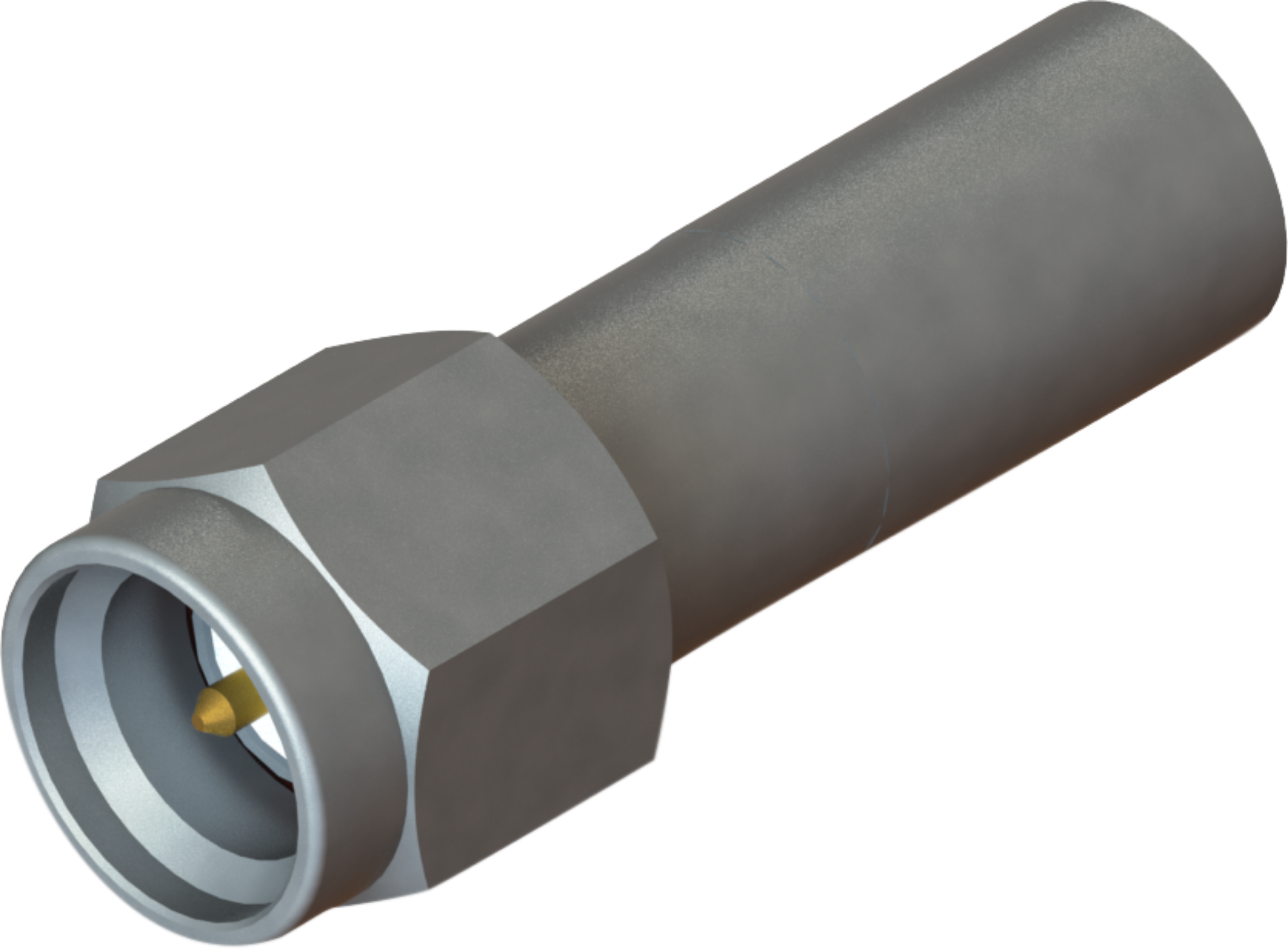

SMA Male Cable Connector for RG-58 Cable

Available Inventory: 647
M39012/55-3128
SMA Connectors M39012/55-3128
Datasheet
Part #   M39012/55B3012

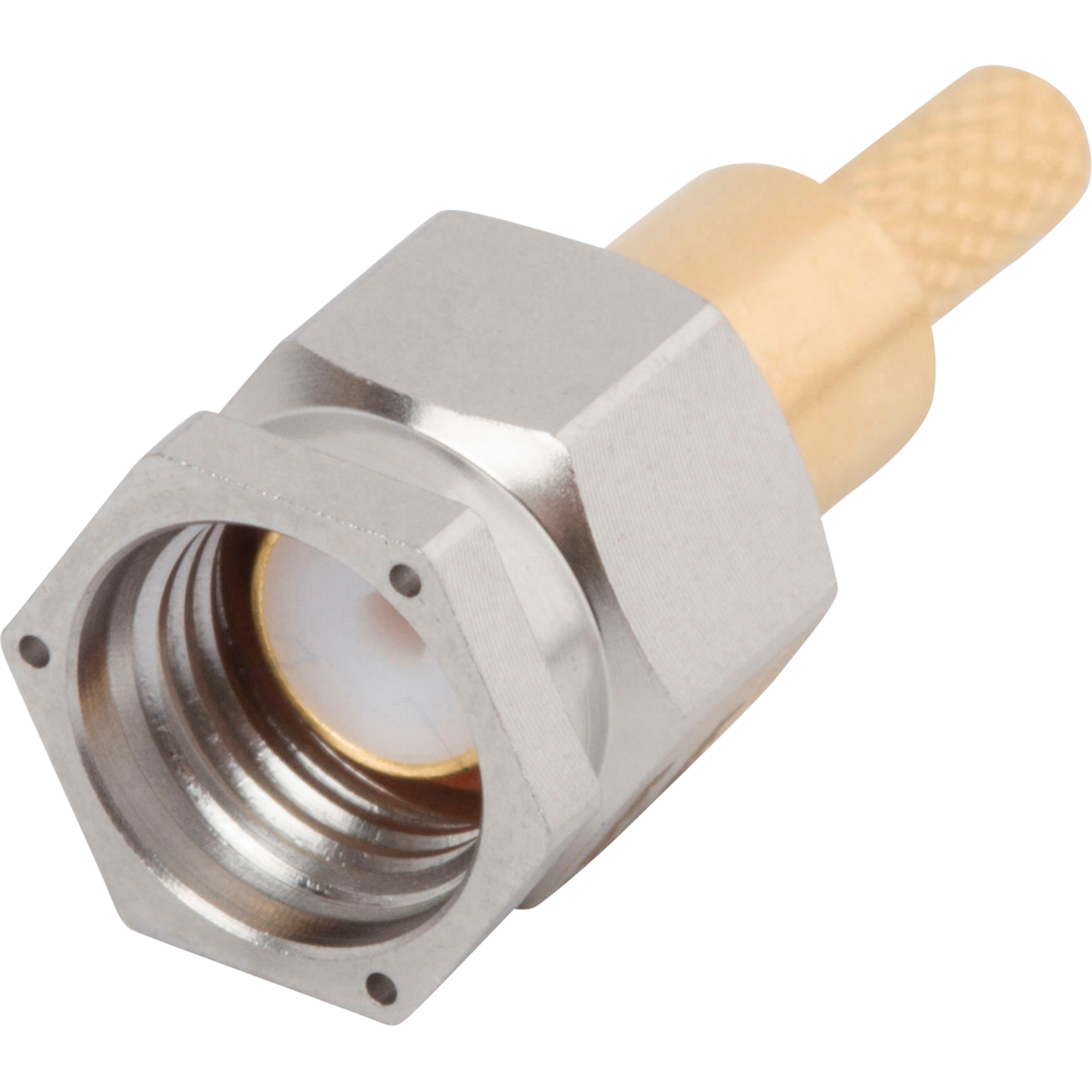

SMA Male Cable Connector, Lockwire Holes for RG-174 Cable

Available Inventory: 1093
M39012/55B3012
SMA Connectors M39012/55B3012
Datasheet
Part #   M39012/55B3112

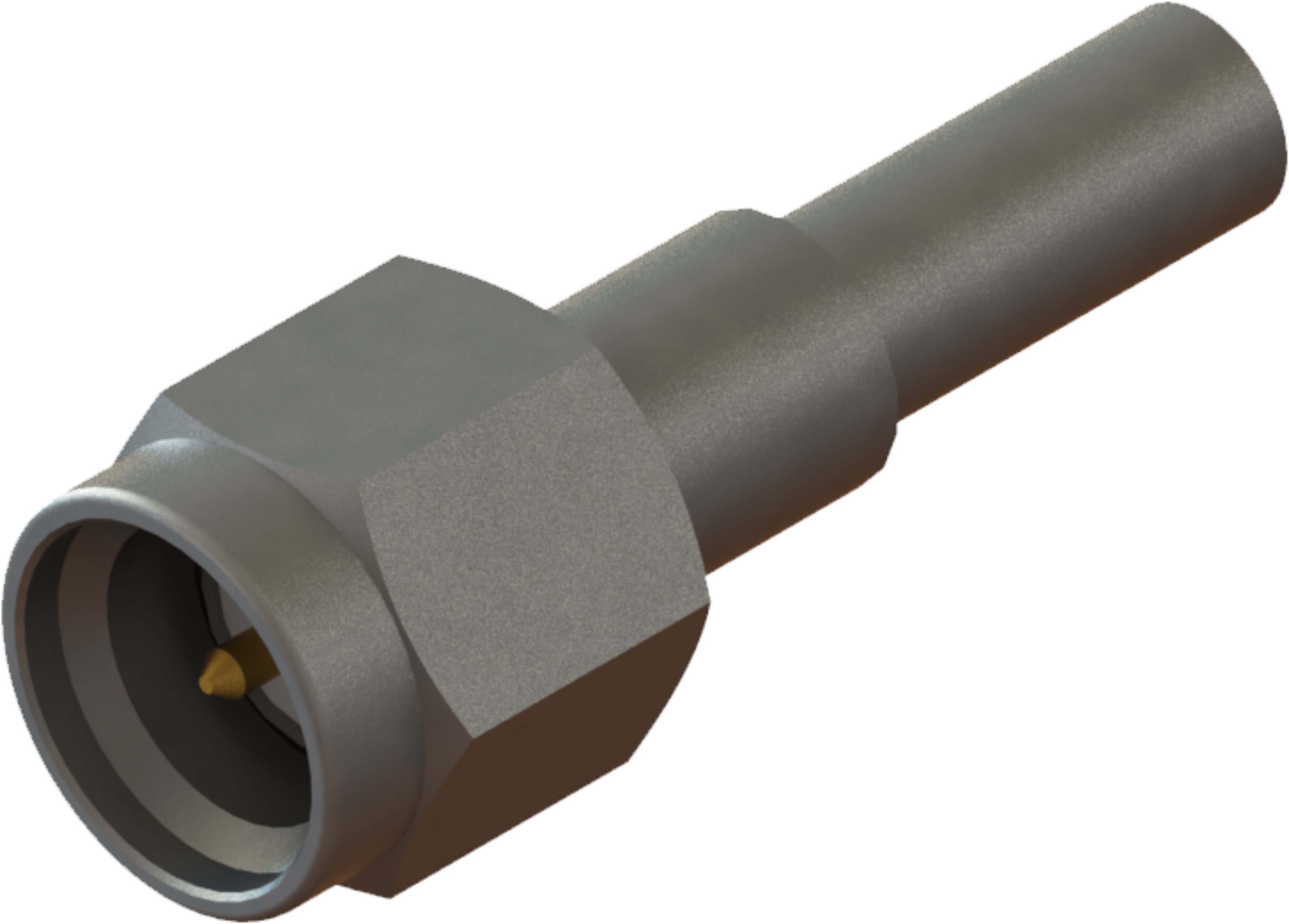

SMA Male Connector for RG-174 Cable
