P/N: M39012/55B3115

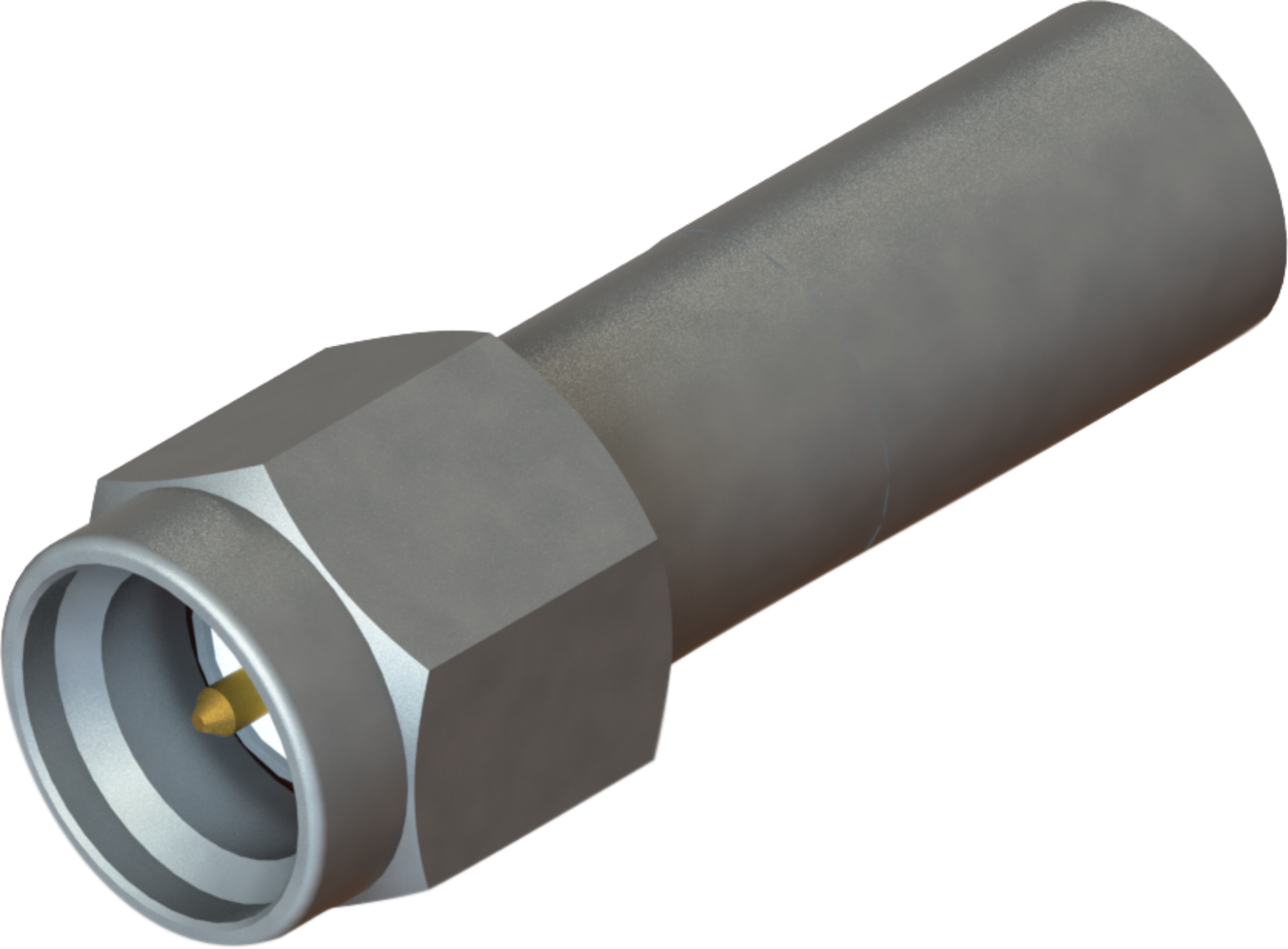

SMA Male Connector for RG-58 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Termination Style Crimp
Number of Ports Single
Frequency 11 GHz
Impedance 50 ohms
MIL-SPEC M39012
Finish Passivated
Cable Type RG-58
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Mating Cycles 500
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Termination Style Crimp
Number of Ports Single
Frequency 11 GHz
Impedance 50 ohms
MIL-SPEC M39012
Finish Passivated
Cable Type RG-58
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Mating Cycles 500
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   M39012/55-3126

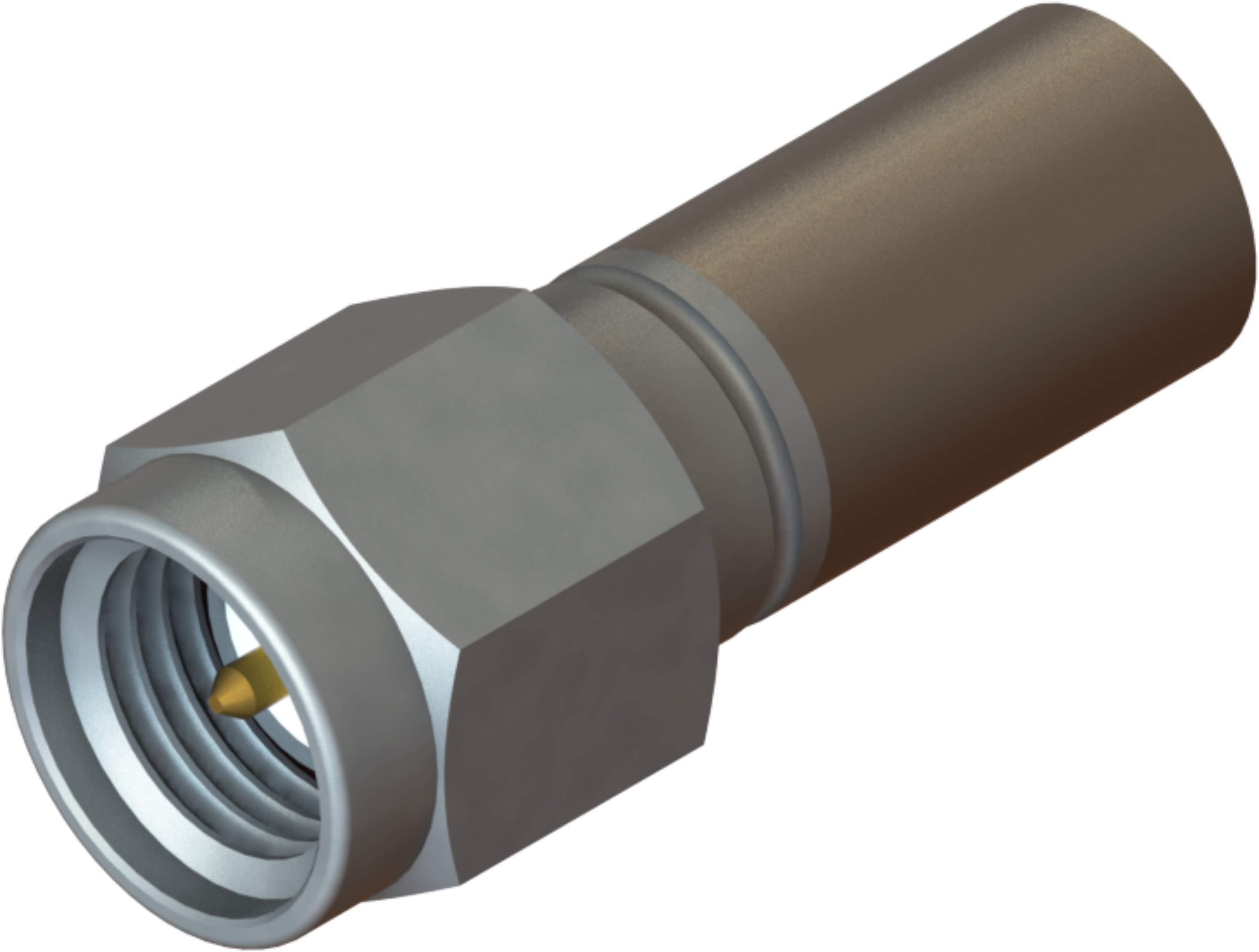

SMA Male Connector for RG-174 Cable

Available Inventory: 5751
M39012/55-3126
SMA Connectors M39012/55-3126
Datasheet
Part #   M39012/55-3128

SMA Male Cable Connector for RG-58 Cable

Available Inventory: 647
M39012/55-3128
SMA Connectors M39012/55-3128
Datasheet
Part #   M39012/55B3022

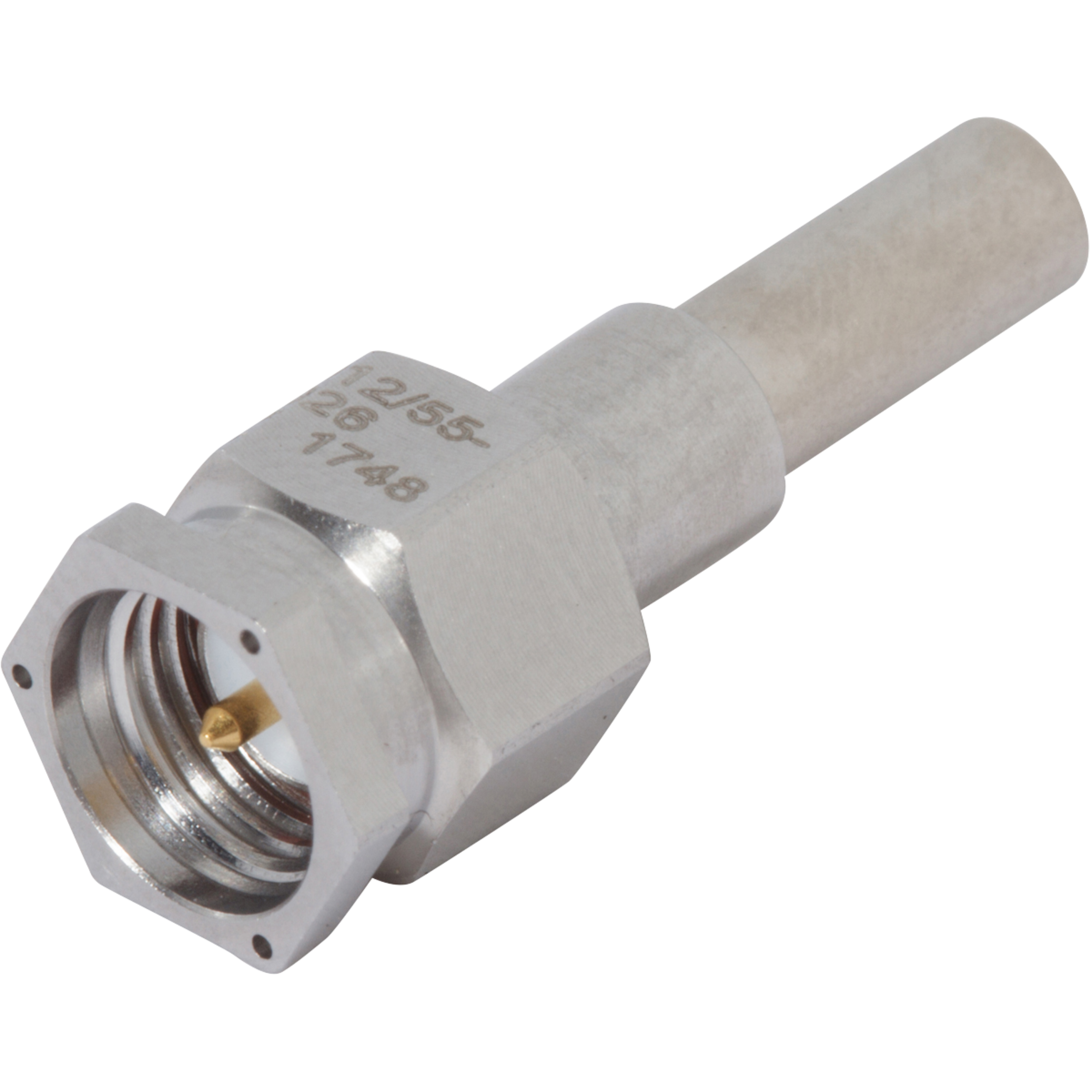

SMA Male Cable Connector, Lockwire Holes, for RG-58 Cable
