P/N: M39012/56B3019

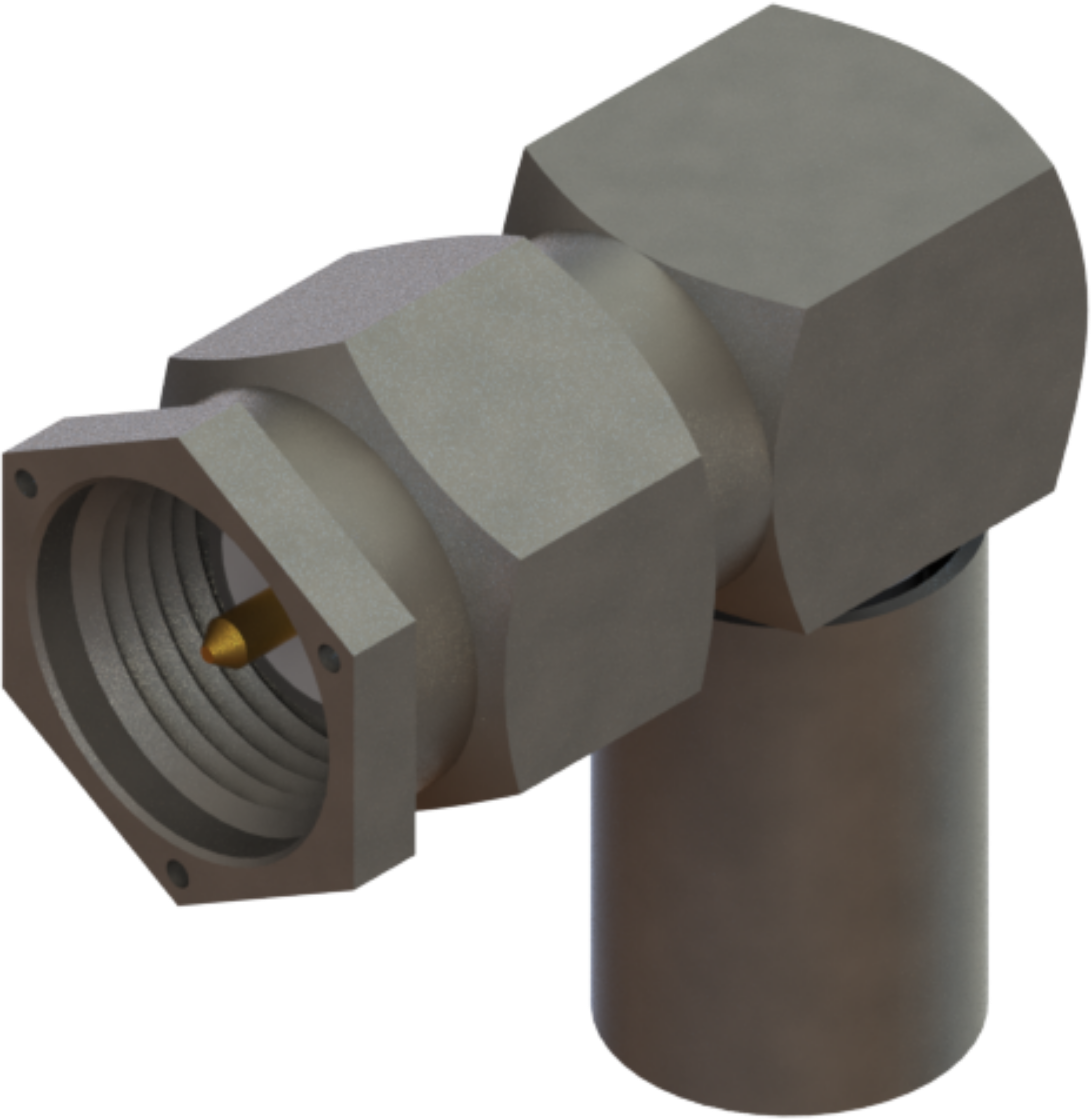

SMA Male Connector, Lockwire Holes, R/A for RG-174 Cable

In stock at Qty Order
Microwave Components LLC 196
Digi-Key Electronics 183
Mouser Electronics 94
TTI Inc Global Headquarters 9
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Right Angle
Gender Plug (Male)
Coupling Threaded
Frequency 11 GHz
Number of Ports Single
Termination Style Crimp
MIL-SPEC M39012
Impedance 50 ohms
Finish Passivated
Cable Type RG-174
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
