P/N: M39012/56-3128

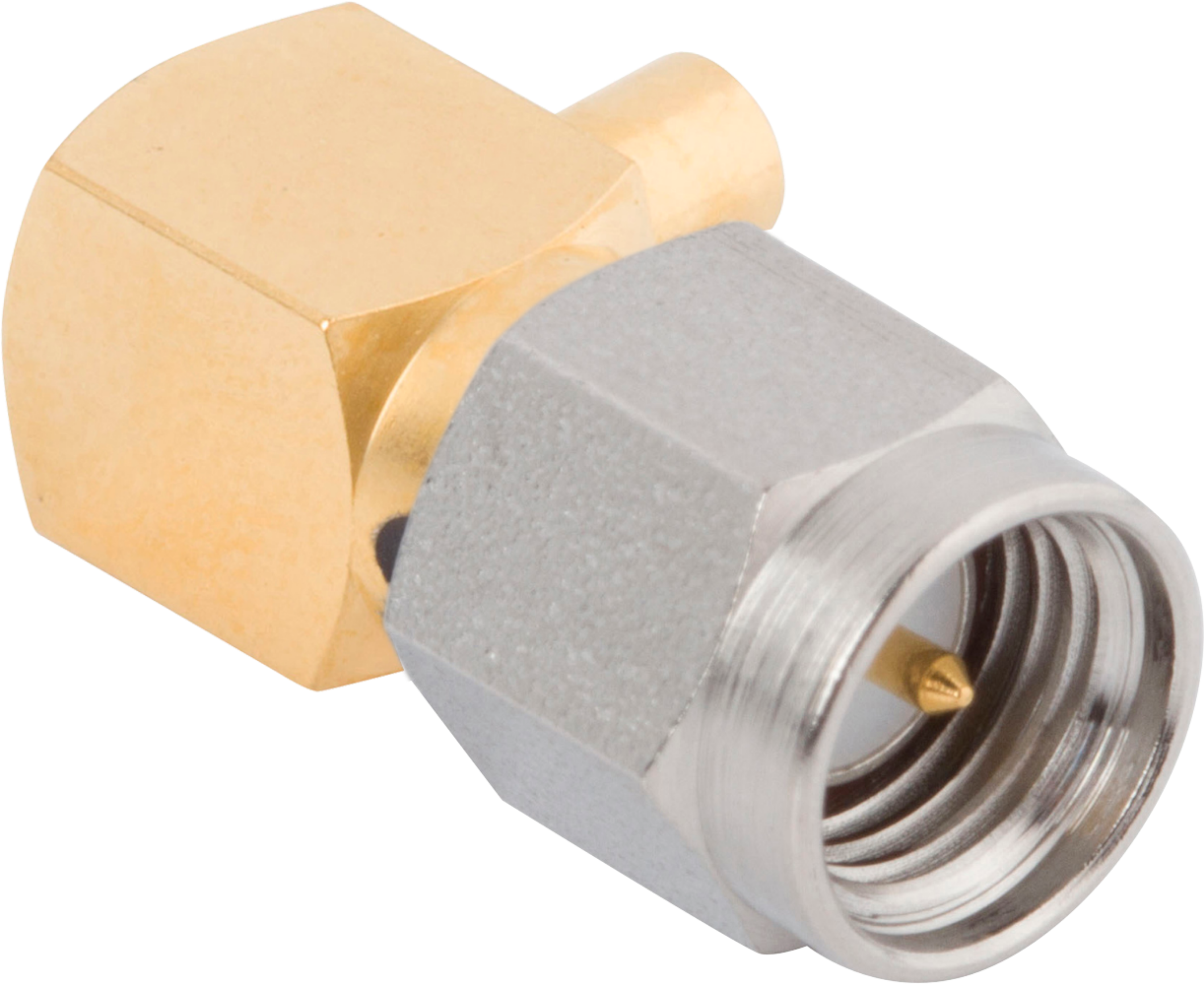

SMA Male Connector, R/A for RG-58 Cable

In stock at Qty Order
Digi-Key Electronics 327
TTI Inc Global Headquarters 222
Mouser Electronics 107
Microwave Components LLC 55
Heilind Electronics 18
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Orientation (Body) Right Angle
Coupling Threaded
Termination Style Crimp
Frequency 11 GHz
Number of Ports Single
Impedance 50 ohms
Finish Passivated
MIL-SPEC M39012
Cable Type RG-58
Electrical
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Impedance (Ω) 50
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Orientation (Body) Right Angle
Coupling Threaded
Termination Style Crimp
Frequency 11 GHz
Number of Ports Single
Impedance 50 ohms
Finish Passivated
MIL-SPEC M39012
Cable Type RG-58
Electrical
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Impedance (Ω) 50
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   M39012/56-3109

SMA Male Connector, R/A for RG-58 Cable

Available Inventory: 0
M39012/56-3109
SMA Connectors M39012/56-3109
Datasheet
Part #   M39012/56-3125

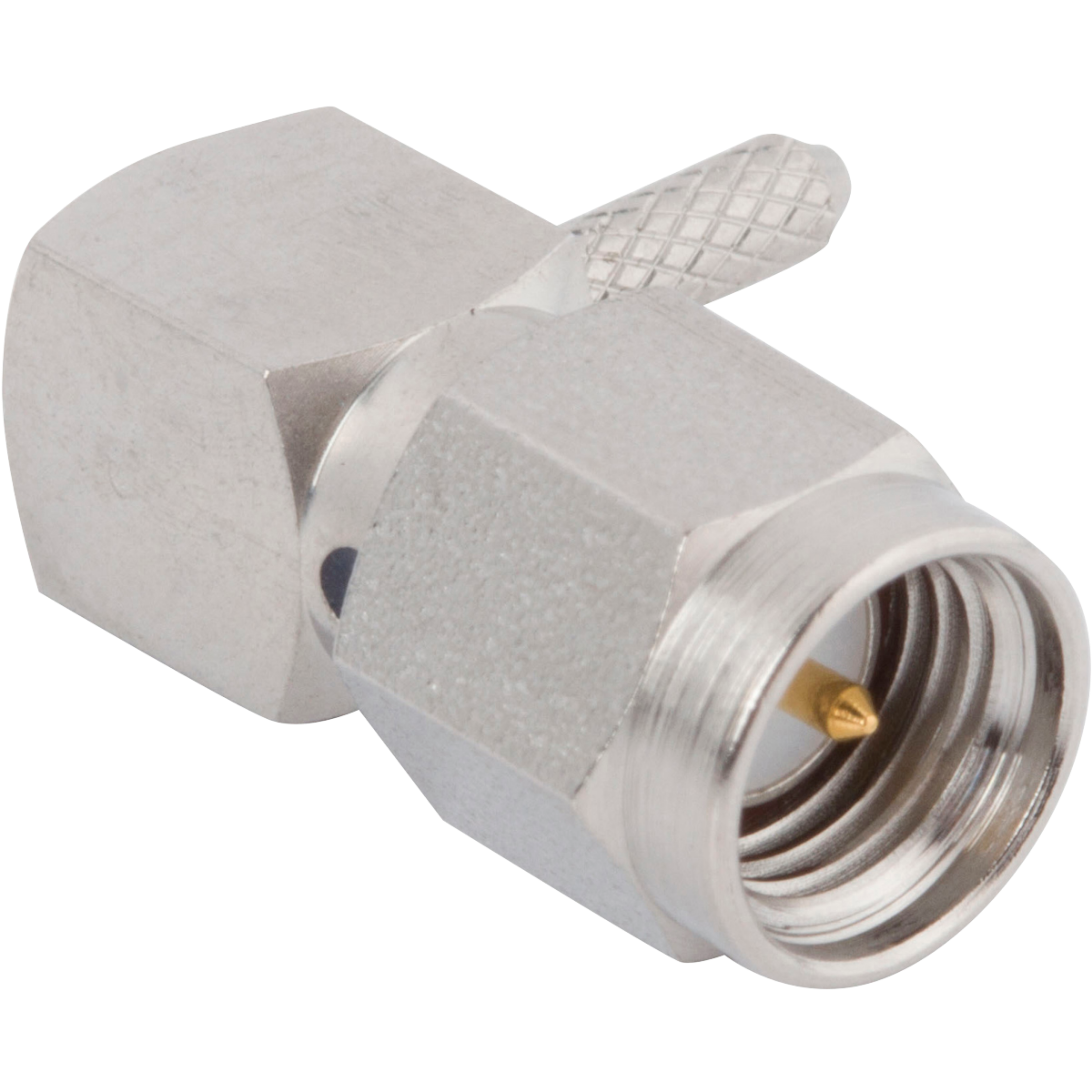

SMA Male Connector, R/A for RG-178 Cable
