P/N: 7029-3382

SMA Male R/A to SMA Male R/A 12" Cable Assembly for .085 Cable

In stock at Qty Order
Mouser Electronics 52
Newark 35
Farnell 35
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Right Angle
Gender Plug (Male)
Coupling Threaded
Termination Style Solder
Frequency 40 GHz
Impedance 50 ohms
RF Series 2 SMA
Gender 2 Plug (Male)
Orientation 2 (Body) Right Angle
Cable Type 0.085 Flexible Coax
Cable Length 12"
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Right Angle
Gender Plug (Male)
Coupling Threaded
Termination Style Solder
Frequency 40 GHz
Impedance 50 ohms
RF Series 2 SMA
Gender 2 Plug (Male)
Orientation 2 (Body) Right Angle
Cable Type 0.085 Flexible Coax
Cable Length 12"
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7029-3381

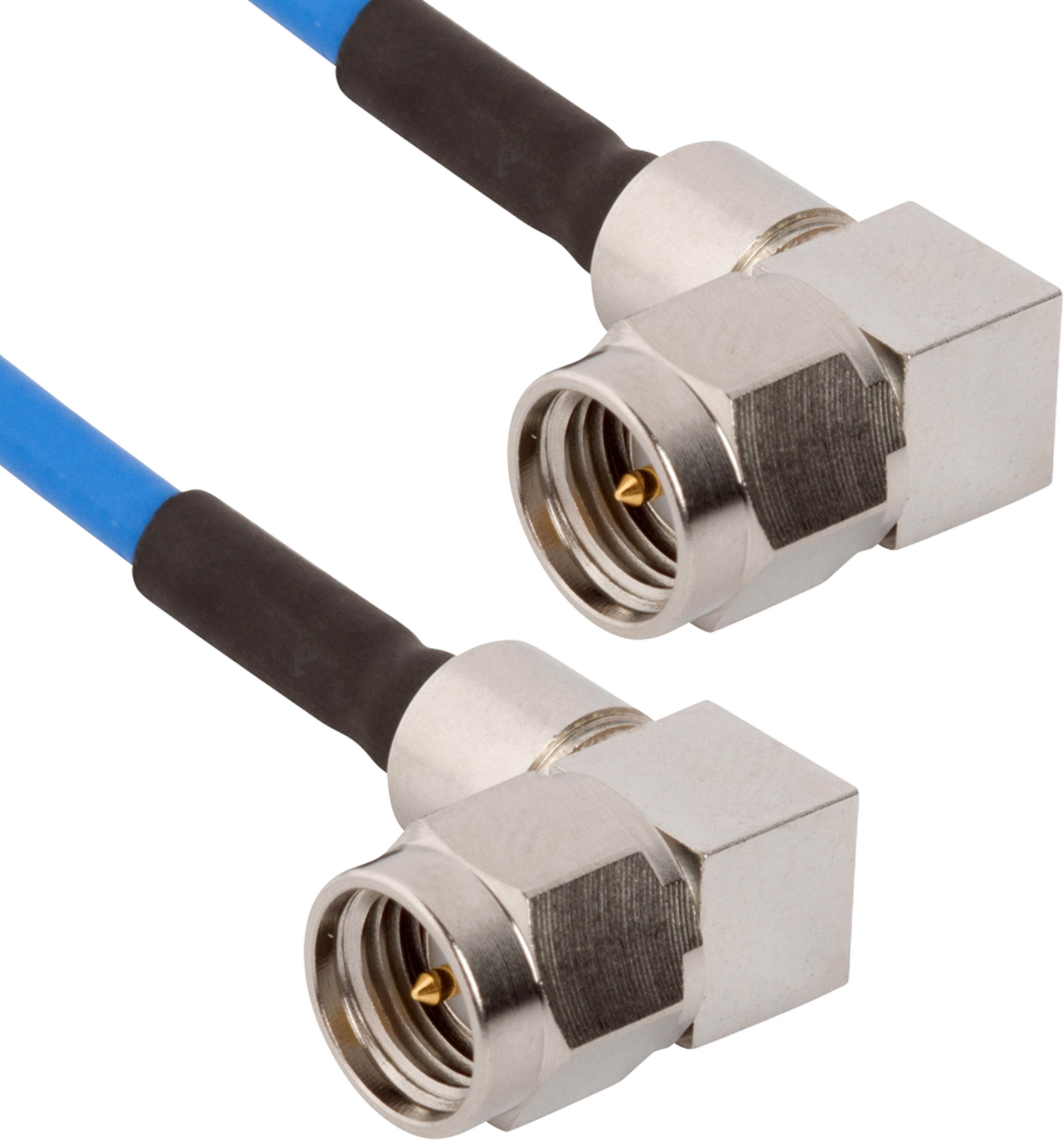

SMA Male R/A to SMA Male R/A 6" Cable Assembly for .085 Cable

Available Inventory: 53
7029-3381
SMA Cable Assemblies 7029-3381
Datasheet
Part #   7029-3379

SMA Male R/A to SMA Male R/A 6" Cable Assembly for .047 Cable

Available Inventory: 107
7029-3379
SMA Cable Assemblies 7029-3379
Datasheet
Part #   7029-3380

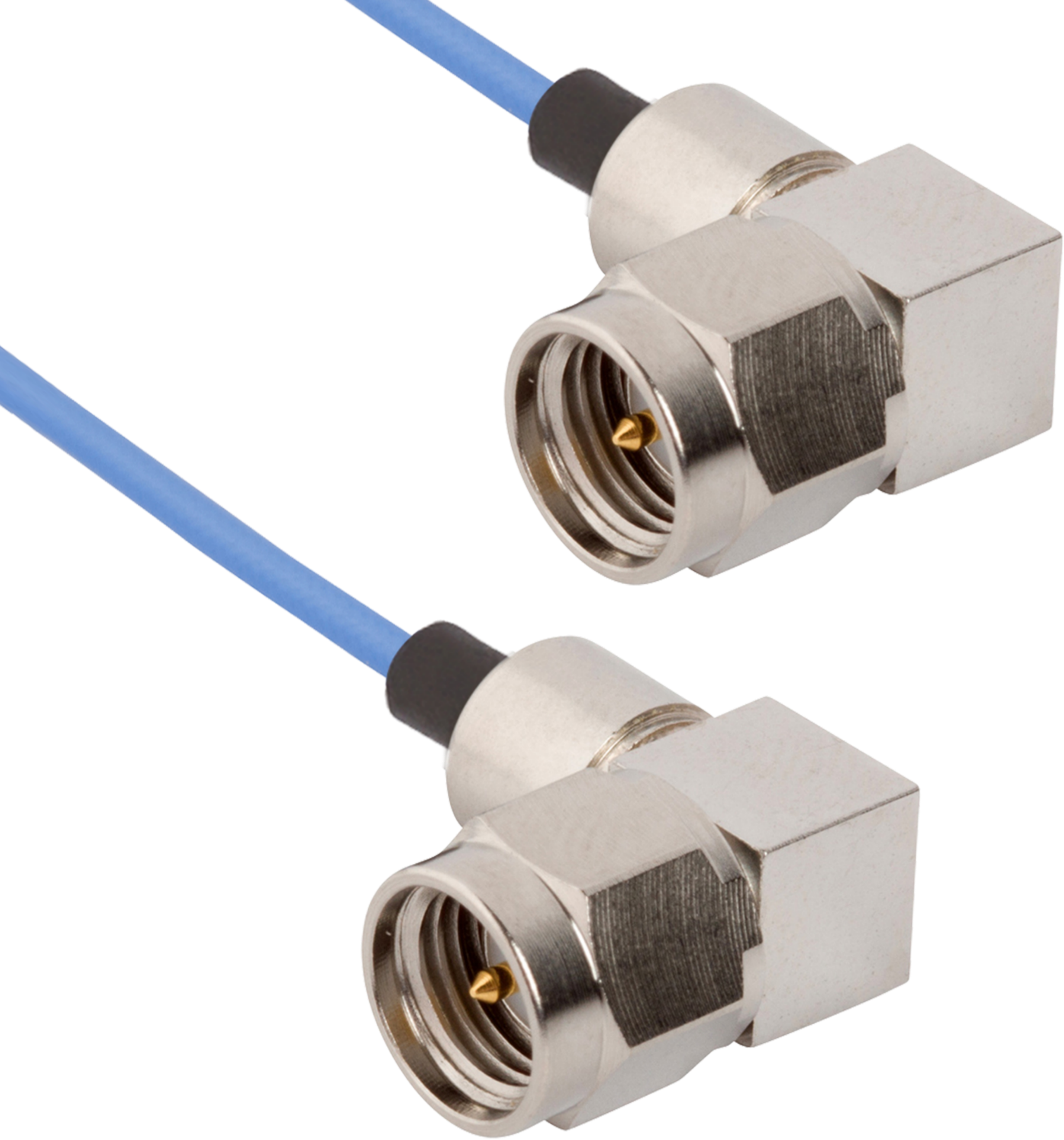

SMA Male R/A to SMA Male R/A 12" Cable Assembly for .047 Cable
