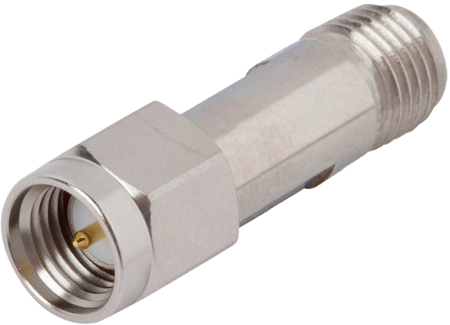

SMA Male to Female Adapter, Low Pass Filter, 18 GHz
P/N: 1129-6312

Name: SMA Male to Female Adapter, Low Pass Filter, 12 GHz, 1129-6311
SKU: 1129-6312
Availability: OutOfStock

There currently isn't any inventory available in distribution. Please contact us to obtain this product.

Downloads

Products specifications

Attribute name	Attribute value
Orientation (Body)	Straight
Gender	Jack (Female)
RF Series	SMA
Coupling	Threaded
RF Series 2	SMA
Gender 2	Plug (Male)
Electrical
Impedance	50 ohms
Frequency	18 GHz
Shielding Effectiveness	≥ -90 dB
Dielectric withstanding Voltage	1000 VRMS
Pass Band Frequency	18 GHz
3 dB Rejection	21 GHz
Mechanical
Mating Torque	7 - 10 in - lbs
Mating Cycles	500
Intermateability	2.92mm
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Thermal Shock	MIL-STD-202, Method 107, Condition B
Shock	MIL-STD-202, Method 213, Condition I
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
