P/N: 7029-2557

SMA Male to SMA Male 24" Cable Assembly for .047 Cable

In stock at Qty Order
Digi-Key Electronics 50
Mouser Electronics 38
Heilind Electronics 9
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Orientation (Body) Straight
Termination Style Solder
Impedance 50 ohms
Coupling Threaded
Frequency 18 GHz
Gender 2 Plug (Male)
Cable Type 0.047 Flexible Coax
RF Series 2 SMA
Orientation 2 (Body) Straight
Cable Length 24"
Electrical
Frequency GHz 18 GHz
Mating Cycles 500
Shielding Effectiveness ≥ -90 dB
Impedance (Ω) 50
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Orientation (Body) Straight
Termination Style Solder
Impedance 50 ohms
Coupling Threaded
Frequency 18 GHz
Gender 2 Plug (Male)
Cable Type 0.047 Flexible Coax
RF Series 2 SMA
Orientation 2 (Body) Straight
Cable Length 24"
Electrical
Frequency GHz 18 GHz
Mating Cycles 500
Shielding Effectiveness ≥ -90 dB
Impedance (Ω) 50
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7029-2554

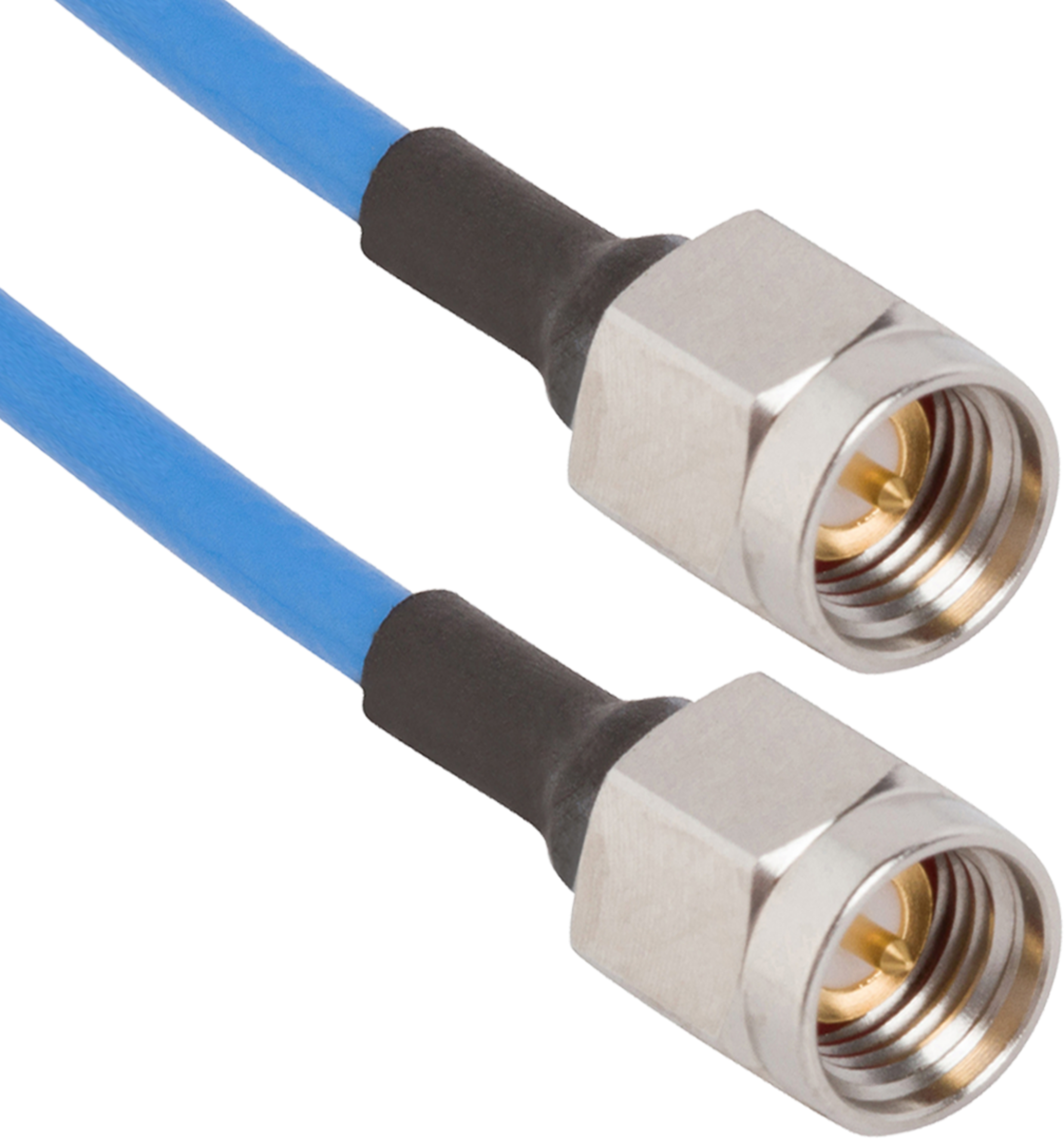

SMA Male to SMA Male 24" Cable Assembly for .085 Cable

Available Inventory: 106
7029-2554
SMA Cable Assemblies 7029-2554
Datasheet
Part #   7029-2555

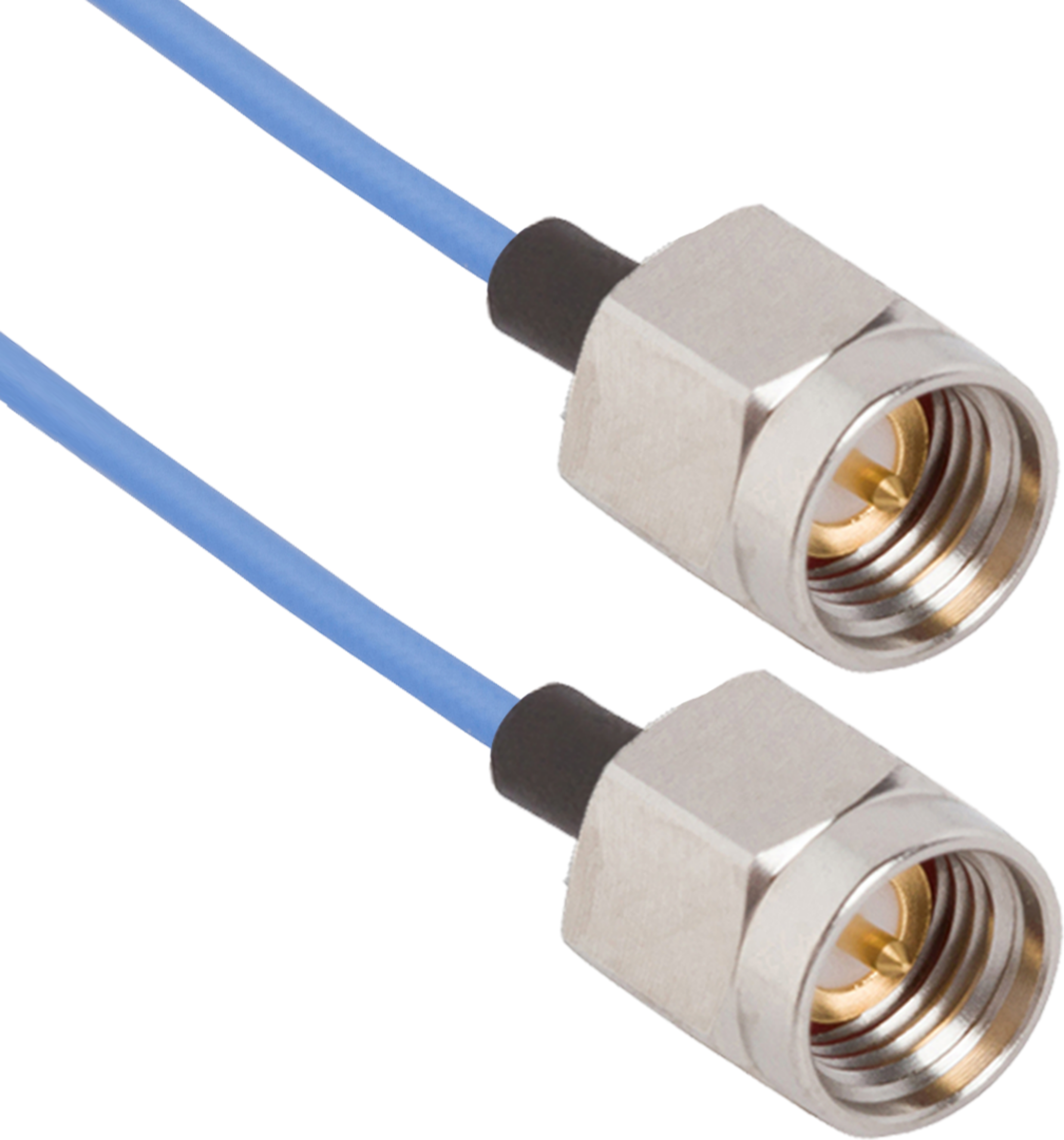

SMA Male to SMA Male 6" Cable Assembly for .047 Cable
