P/N: 7029-3531

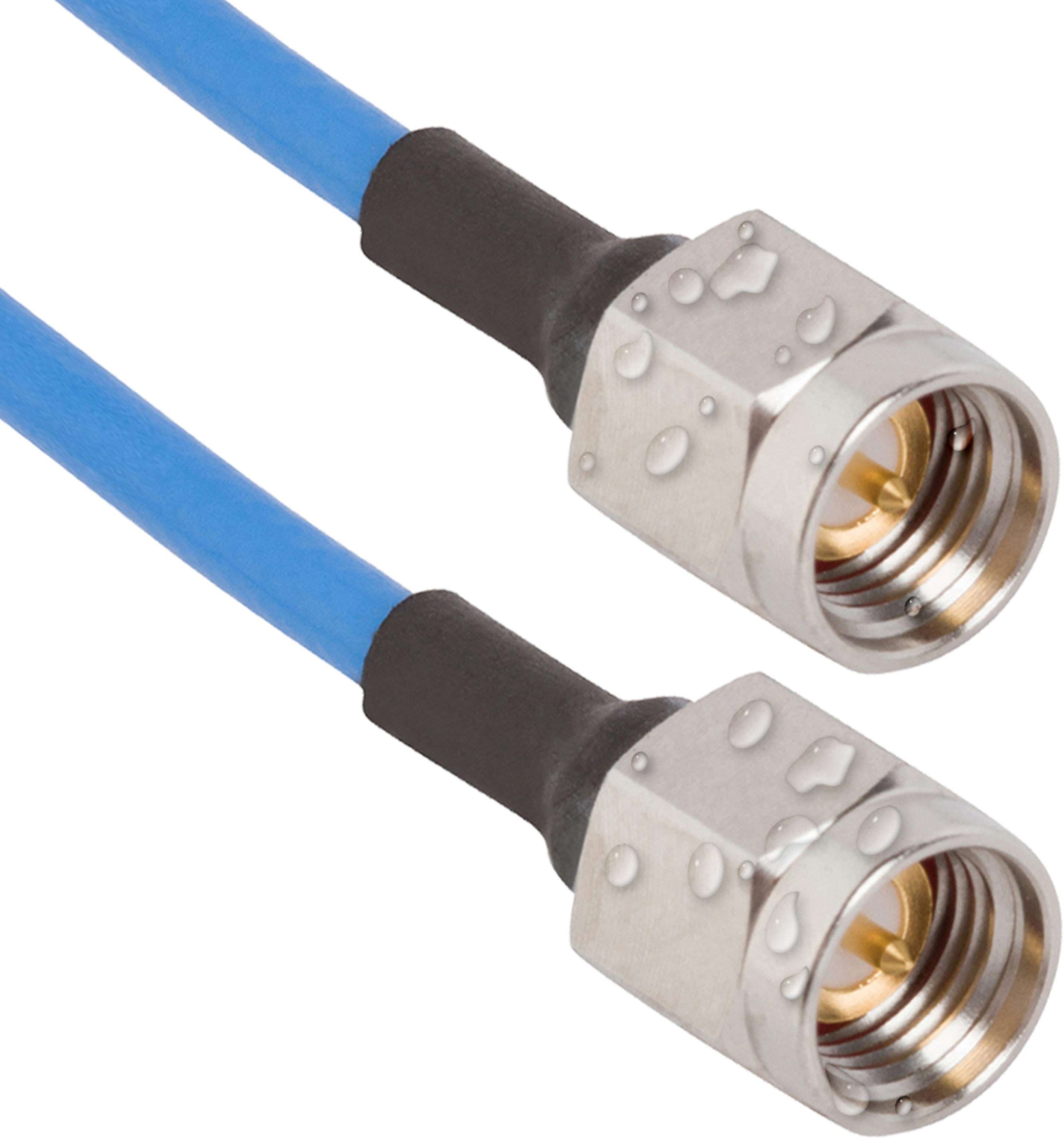

SMA Male to SMA Male Waterproof (IP68 Rated) 12" Cable Assembly for .085 Cable

In stock at Qty Order
Newark 25
Farnell 25
TTI Inc Global Headquarters 10
Digi-Key Electronics 10
Mouser Electronics 8
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Straight
Gender Plug (Male)
Coupling Threaded
Style Waterproof
Termination Style Solder
Frequency 18 GHz
Impedance 50 ohms
IP Rating IP 68
Gender 2 Plug (Male)
RF Series 2 SMA
Orientation 2 (Body) Straight
Cable Type 0.085 Flexible Coax
Cable Length 12"
Electrical
Frequency GHz 18 GHz
Impedance (Ω) 50
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
